BIOSTAR Motherboard

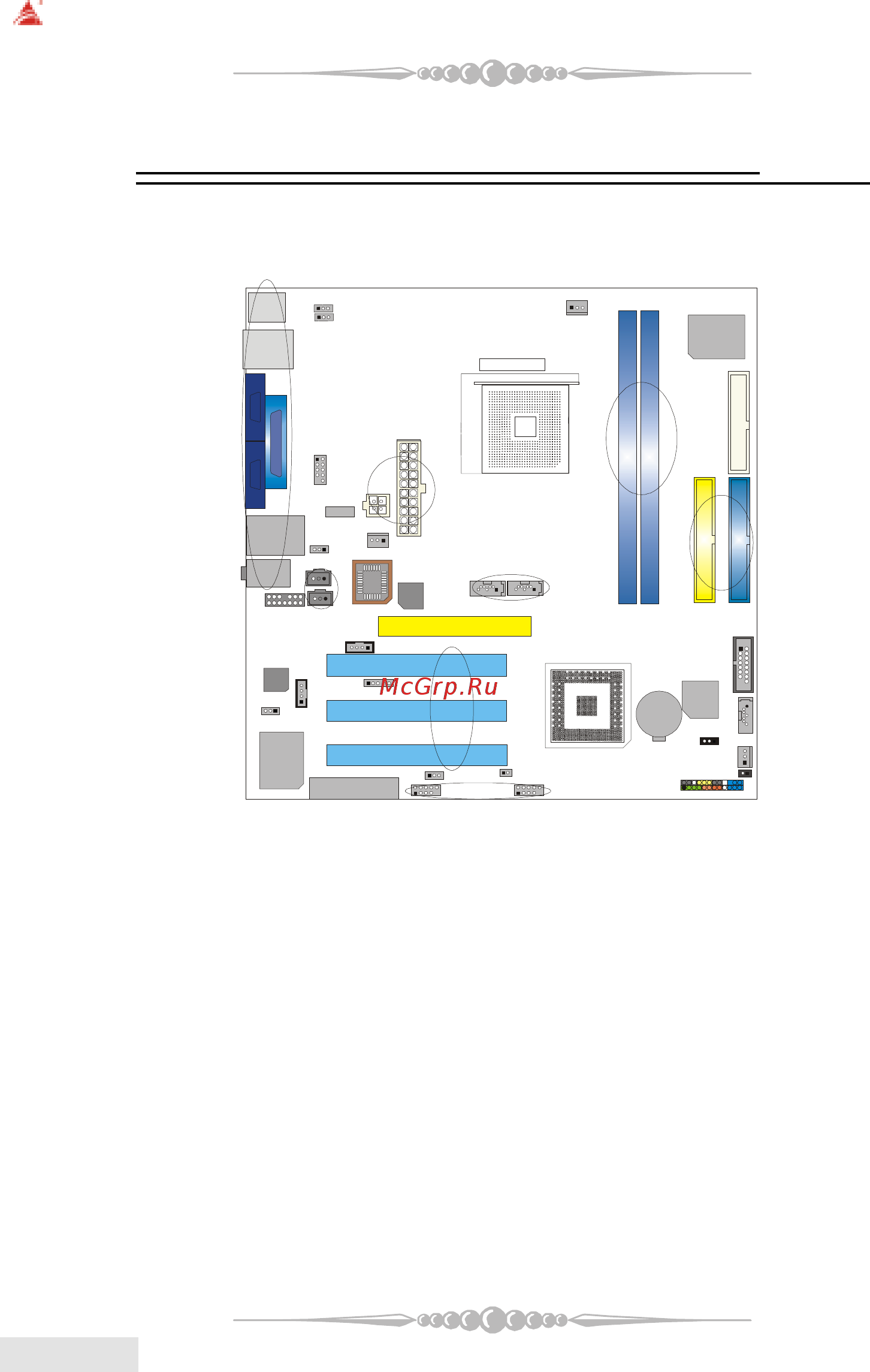

Section 2. Components Index
This section helps you to locate the components in the motherboard and to find
the details about them easily according to the mentioned pages.
A Back Panel Connectors (p. 18) B JKBMSV1: 5V/5VSB Selection for Keyboard/Mouse (p. 16)
C JUSBV1: 5V/5VSB Selection for J1394_USB1 (p. 14) D JCOM3*: COM3 Header (p. 14)
E JATXPWR1-2: ATX Power Connectors (p. 16) F J1394A1*: Front 1394A Header (p. 17)
G JSFAN2: System Fan Header (p. 12) H JUSBV2: 5V/5VSB Selection for JUSBLAN1 (p. 14)
I JSPDIF_OUT/(JSPDIF_IN)*: Digital Audio Connectors (p.17)J JAUDIO1: Front Audio Header (p. 16)
K JSATA1*-3: Serial ATA Connectors (p. 13) L AGP1: Accelerated Graphics Port Slot (p. 13)
M JCDIN2: CD-Rom Audio-In Header (p. 15) N J1394V1*: Power Source Selection for J1394A1 (p. 17)
O JCDIN1: CD-Rom Audio-In Header (p. 15) P JDJ1*: Audio DJ Connector (p. 17)
Q PCI1-3: Peripheral Component Interconnect Slots (p. 13) R CNR1*: Communication Network Riser Slot (p. 13)
S JUSBV3*: 5V/5VSB Selection for JUSB1/2 (p. 14) T JUSB1-2*: Front USB Headers (p. 14)
U J3 *: Flash Rom Read/Write Enable (p. 17) V JPANEL1: Front Panel Connector (p. 15)
W JCI1*: Case Open Connector (p. 14) X JSFAN1: System Fan Header (p. 12)
Y JCMOS1: Clear CMOS Jumper (p. 13) Z JGAME1*: Game Header (p. 15)
A1 IDE1-2: Hard Disk Connectors (p. 13) B1 DDR1-2: DDR DIMM Modules (p. 8)
C1 FDD1: Floppy Disk Connector (p. 12) D1 JCFAN1: CPU Fan Connector (p. 11)
*
stands for “optional”.
BIOS
BAT1
Socket 754
CPU1
NVIDIA
CK8S
CODEC
1
SATA
Bridge
1
Super
I/O
IT 8712F
VIA
VT 6307
RTL8201BL
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
K
A1
B1
C1
D1
