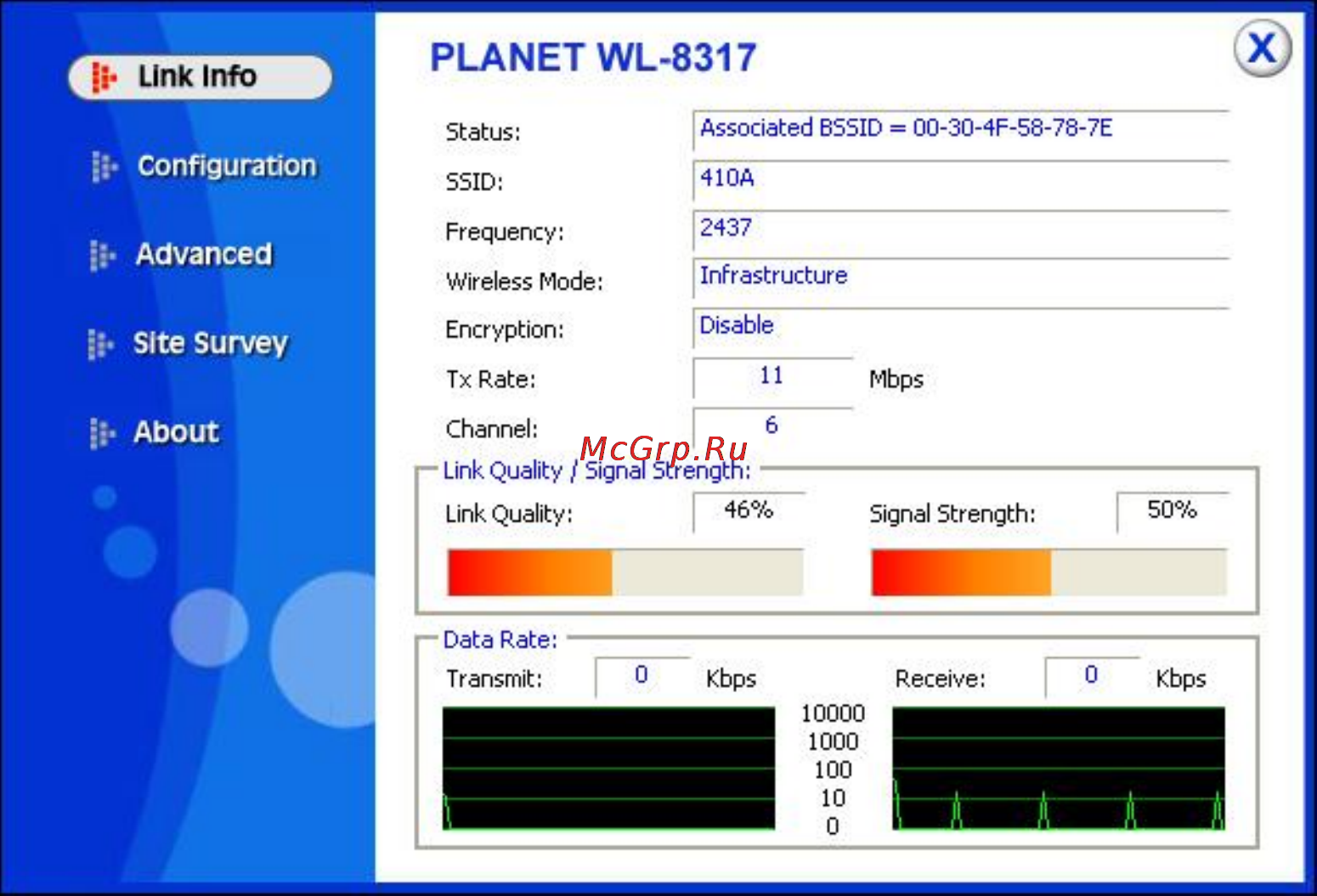

This screen contains current link information of WL-8317.

Status: Shows the BSSID associated with, which can be used to identify the wireless

network.

SSID: Shows current SSID, which must be the same for the wireless client and AP in

order to establish the communication.

Frequency: Shows the current frequency used for wireless network.

Wireless Mode: Shows the current wireless mode used for wireless communication.

Encryption: Shows the current encryption mode used for wireless network.

Tx Rate: Shows the current data rate used for transmitting.

Channel: Shows the current channel for communication.

Link Quality: Shows the link quality of WL-8317 with the Access Point when operating in

Infrastructure mode.

Signal Strength: Shows the wireless signal strength of the connection between the

WL-8317 and the Access Point.

Data Rate: Shows the statistics of data transfer, and the calculation is based on the

number of packets transmitted and received.
