Biostar A68N-5100 Версия 6.x [12/34] Panel front panel header

Motherboard Manual

PANEL: Front Panel Header

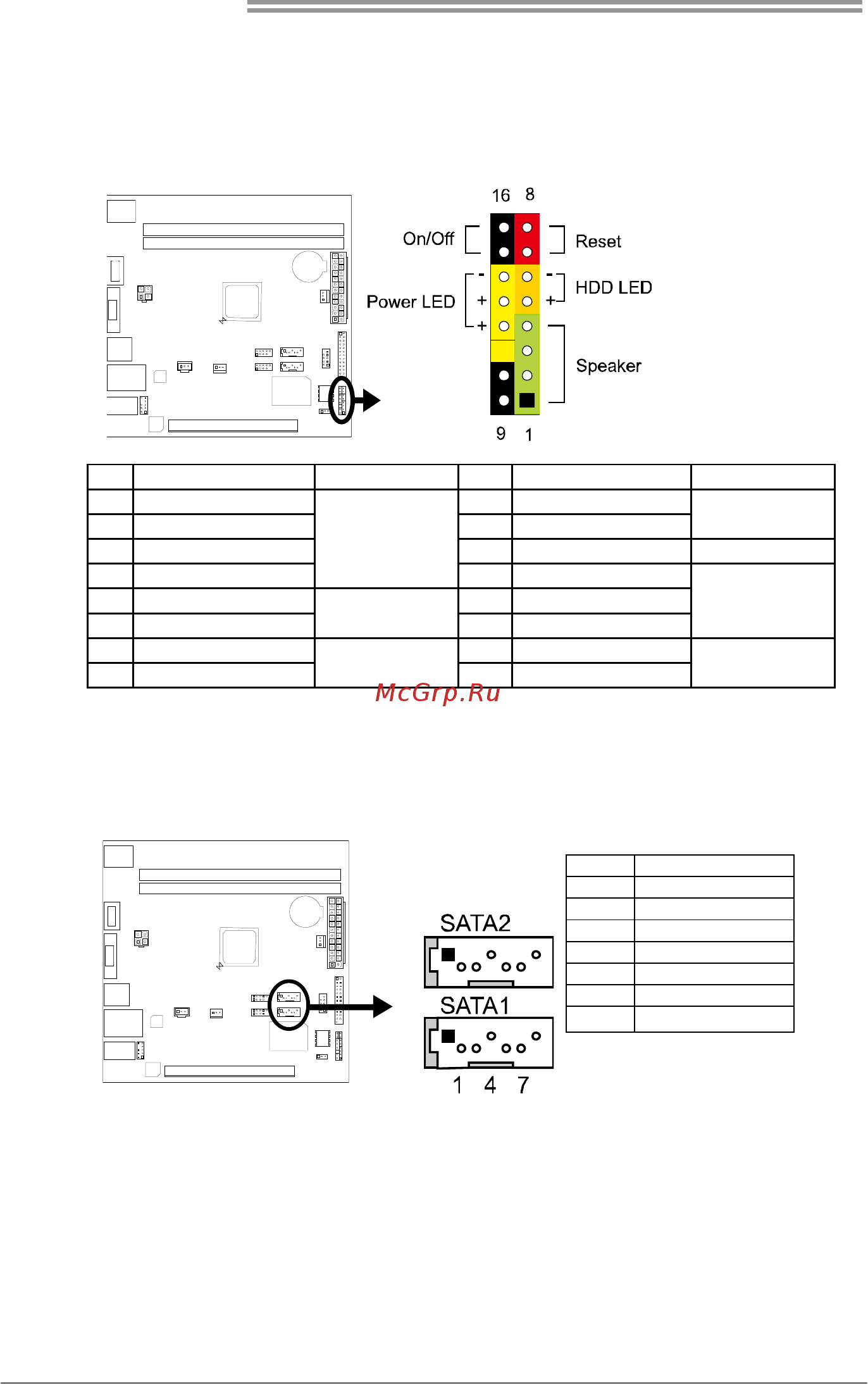

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

Pin Assignment Function Pin Assignment Function

1+5V

Speaker

Connector

9 N/A

N/A

2 N/A 10 N/A

3 N/A 11 N/A N/A

4 Speaker 12 Power LED (+)

Power LED

5 HDD LED (+)

Hard drive LED

13 Power LED (+)

6 HDD LED (-) 14 Power LED (-)

7 Ground

Reset button

15 Power button

Power-on button

8 Reset control 16 Ground

SATA1~SATA2: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables and with

transfer rate upto 6 Gb/s.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground
