2. Advanced Menu | 11

A68N-2100E / A68N-2100K / A68N-2100X / A68N-5600E

Specic Key

This item will show only when Keyboard PowerOn is set “Specic Key.” Press Enter to set Specic

key.

PS2 Mouse PowerOn

This item allows you to control the mouse power on funcon.

Opons: Disabled (Default) / Enabled

USB Device Wakeup from S3/S4

This item allows you to set USB Device Wakeup from S3/S4.

Opons: Disabled (Default) / Enabled

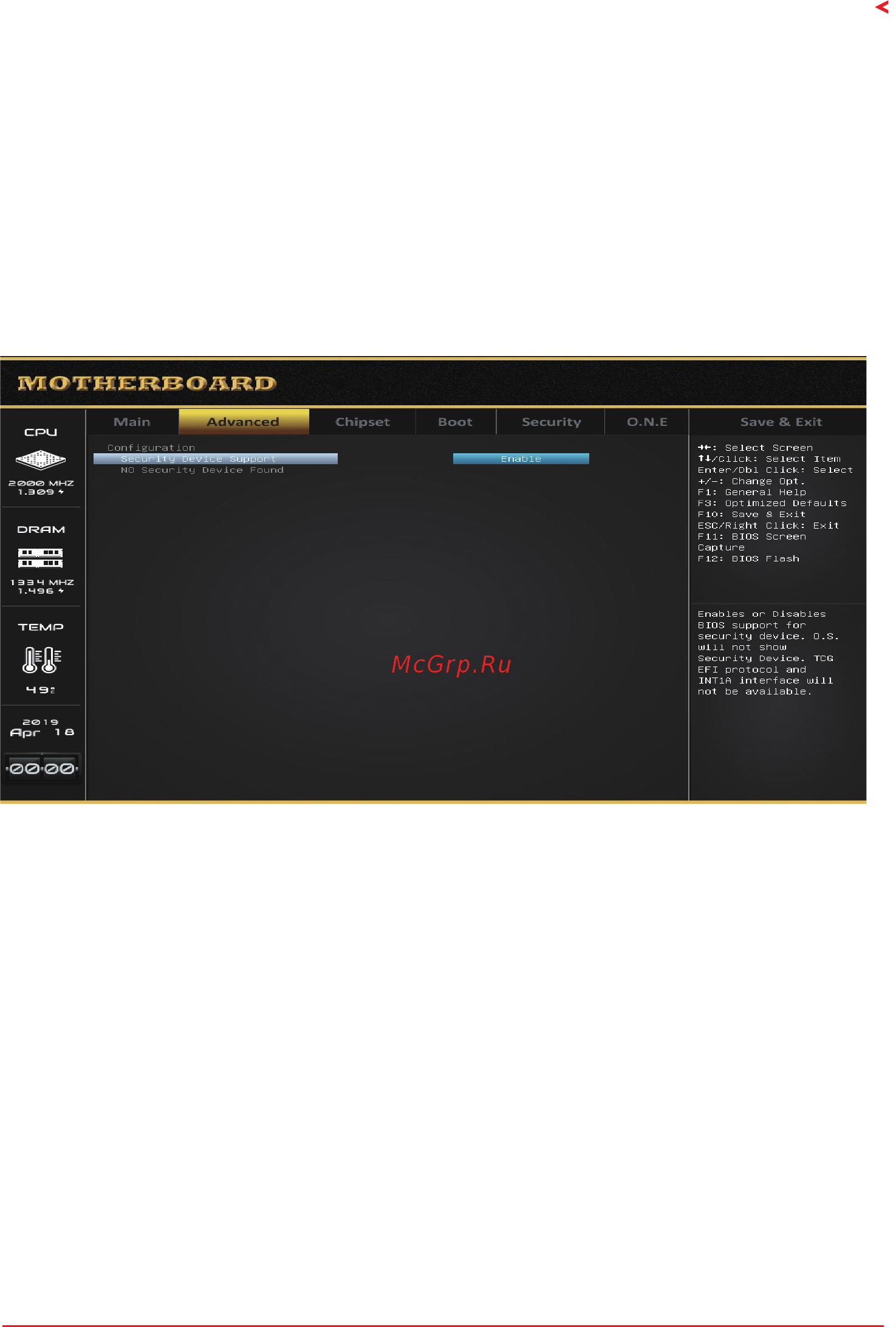

Trusted Computing

Security Device Support

The item enables or disables BIOS support for security device. O.S. will not show Security Device.

TCG EFI protocol and INT1A interface will not be available.

Opons: Enabled (Default) / Disabled
