18 | 3. Chipset Menu

3� Chipset Menu

This secon describes conguring the PCI bus system. PCI, or Personal Computer Interconnect, is

a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses

when communicang with its own special components.

Note

Beware of that seng inappropriate values in items of this menu may cause system to malfuncon.

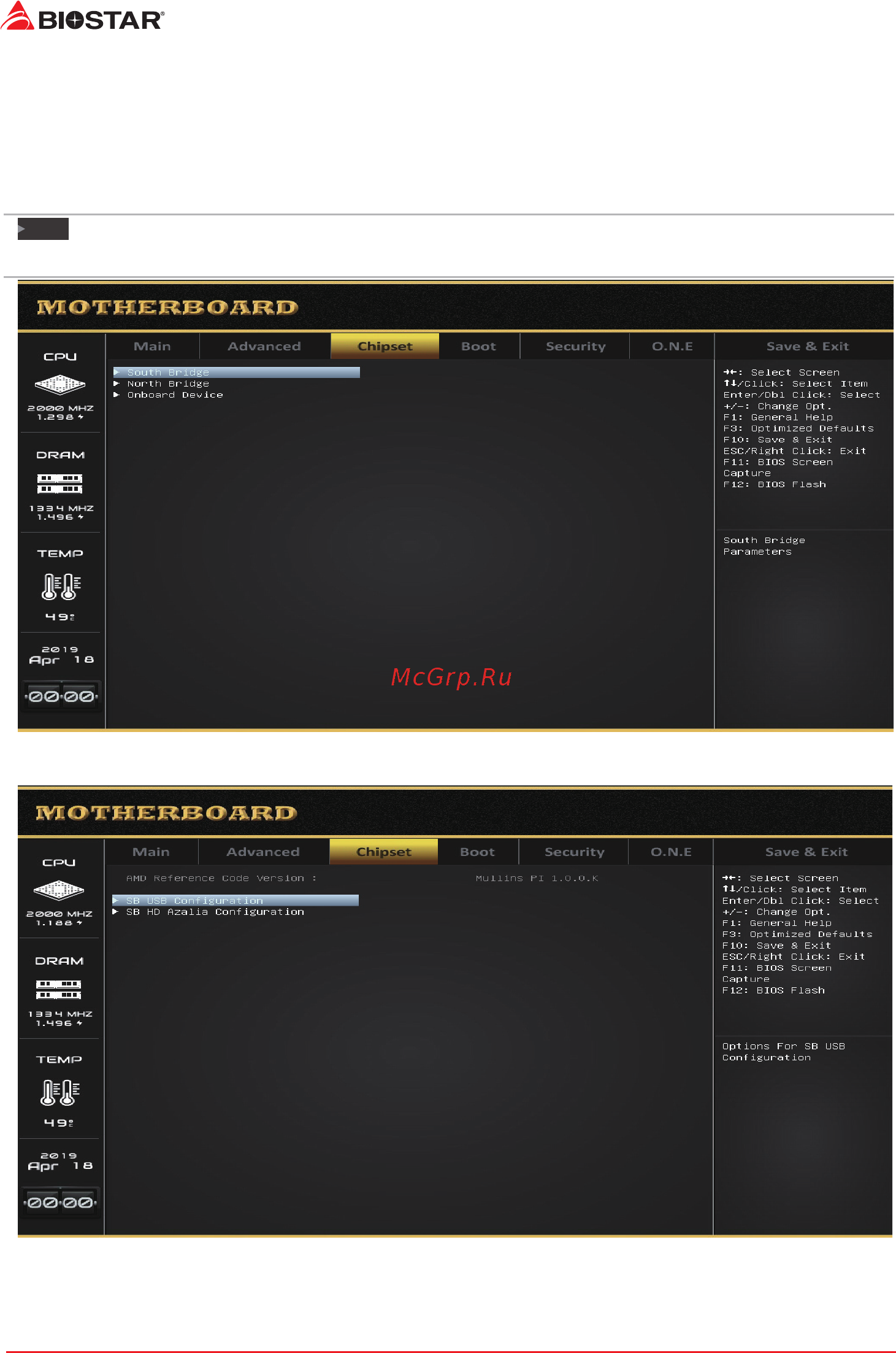

South Bridge
