Chapter 2: Hardware installaon | 7

A10N-9830E / A10N-9630E

Chapter 2: Hardware installaon

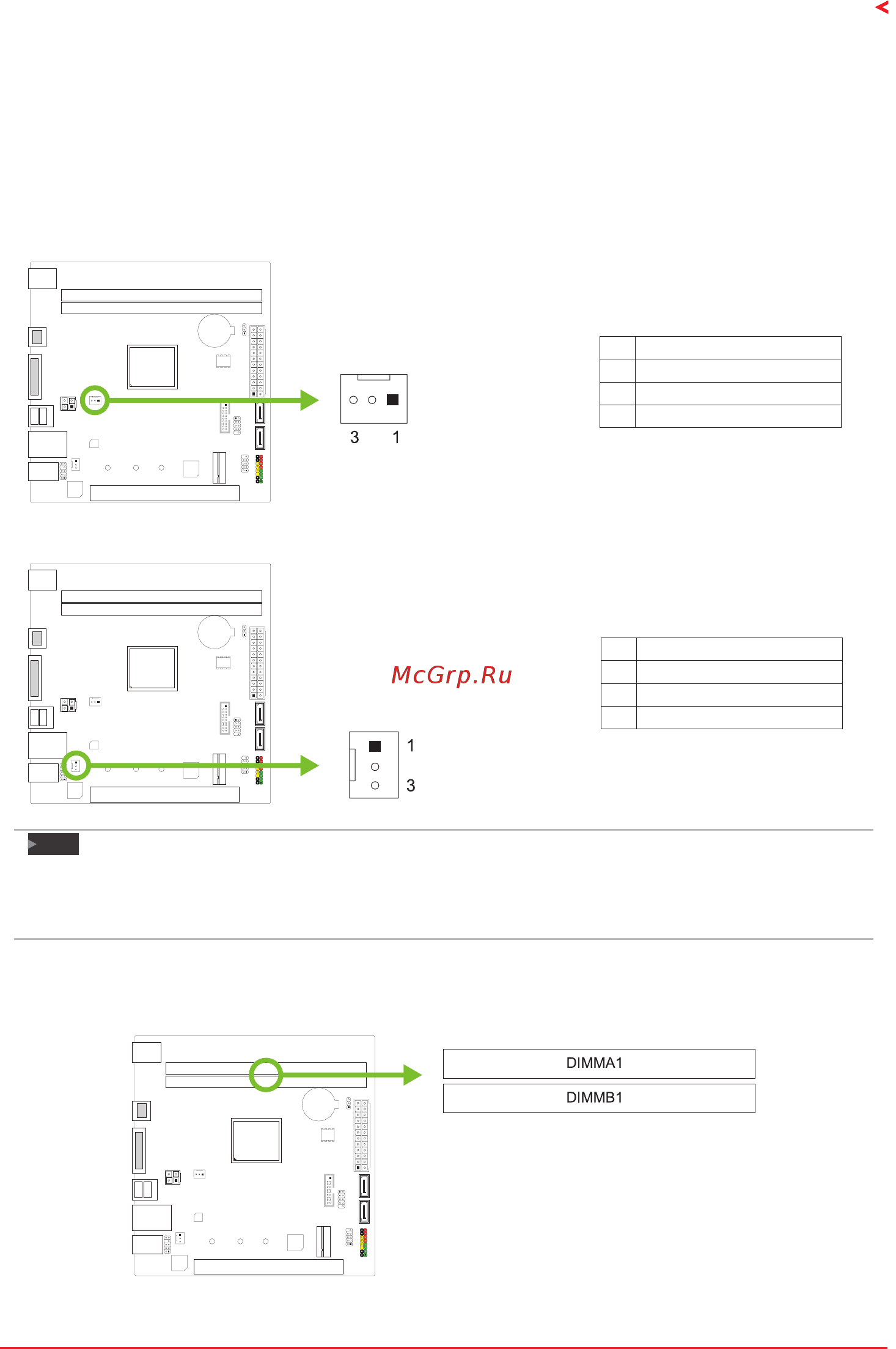

2.1 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector

may be dierent according to the fan manufacturer.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 Linear FAN Control

3 FAN RPM rate sense

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note

 CPU_FAN1,SYS_FAN1support3-pinheadconnectors.Whenconnecngwithwiresontoconnectors,

pleasenotethattheredwireistheposiveandshouldbeconnectedtopin#2,andtheblackwireis

Groundandshouldbeconnectedtopin#1(GND).

2.2 Install System Memory

DDR4 Modules
