Инструкция по эксплуатации Страница: 77

Planet WRT-414 [77/93] Device status

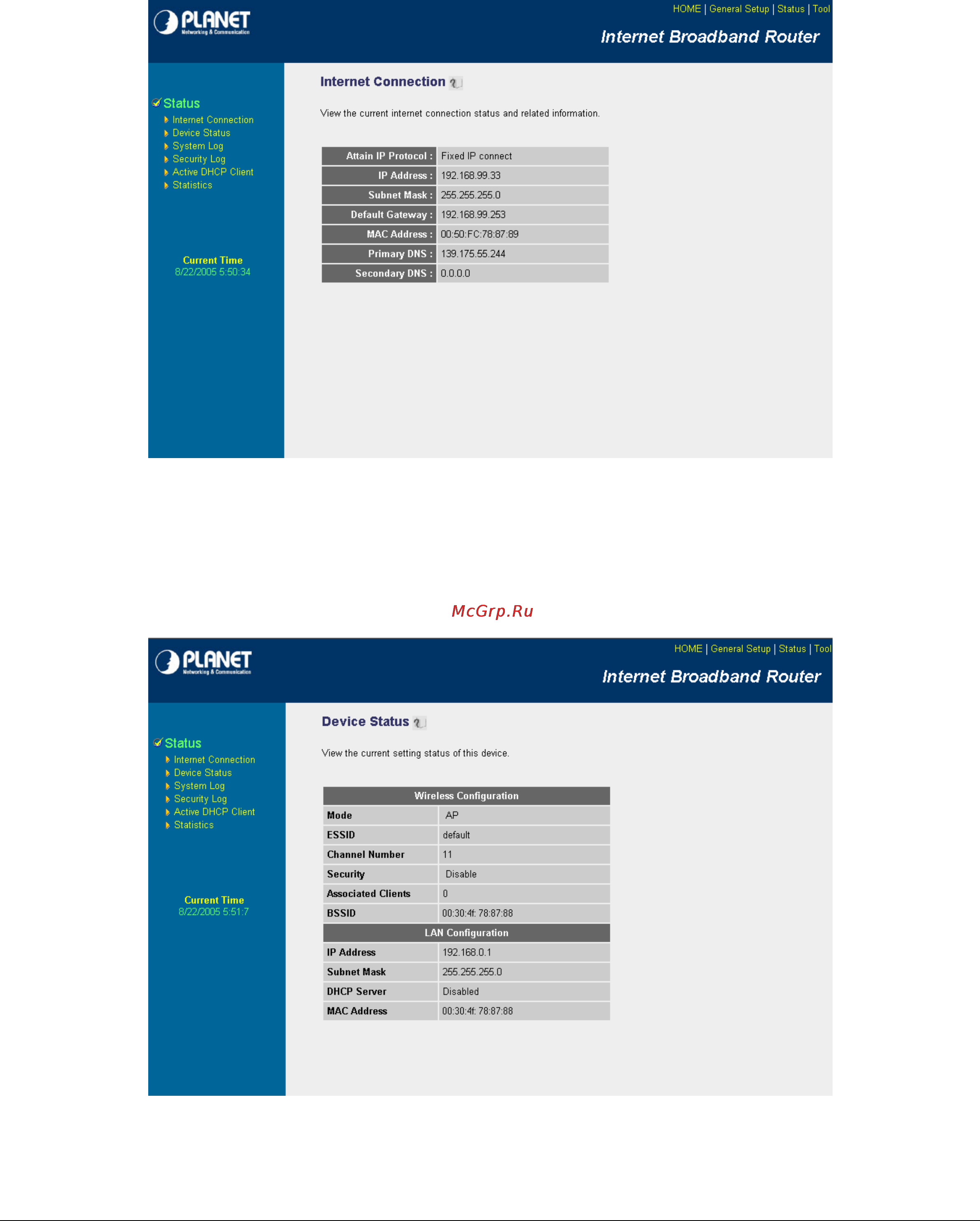

7.2 Device Status

View WRT-414’s current configuration settings. The Device Status displays the configuration settings

of WLAN and LAN.

- 71 -
