Planet WBT-1000 [5/12] Features
![Planet WBT-1000 [5/12] Features](/views2/1071273/page5/bg5.png)
5
Features
High Gain, High Value and High Performance/ Auto Gain Signal Booster
Amplify and AP’s radio signal to 30dBm
Make broadband wireless application in possible coverage
Increase AP’s receiving sensitivity up to -100dB
Increasing radio communication range by providing transmit gain as well as low-
noise receive gain.
Aluminum case construction/weather-proof/ Lightning protection
Strength radio signal to increase the effective range and coverage area for Wi-Fi
communication.
Simply attach the DC Injector with 2.4GHz radio signal input plus the DC power
feed to the outdoor unit and N type antenna.
The outdoor booster increase range by providing transmit gain as well as low
noise receive gain.
The benet for signal booster can save lots of wiring costs and easy to build
wireless infrastructure for home or business use

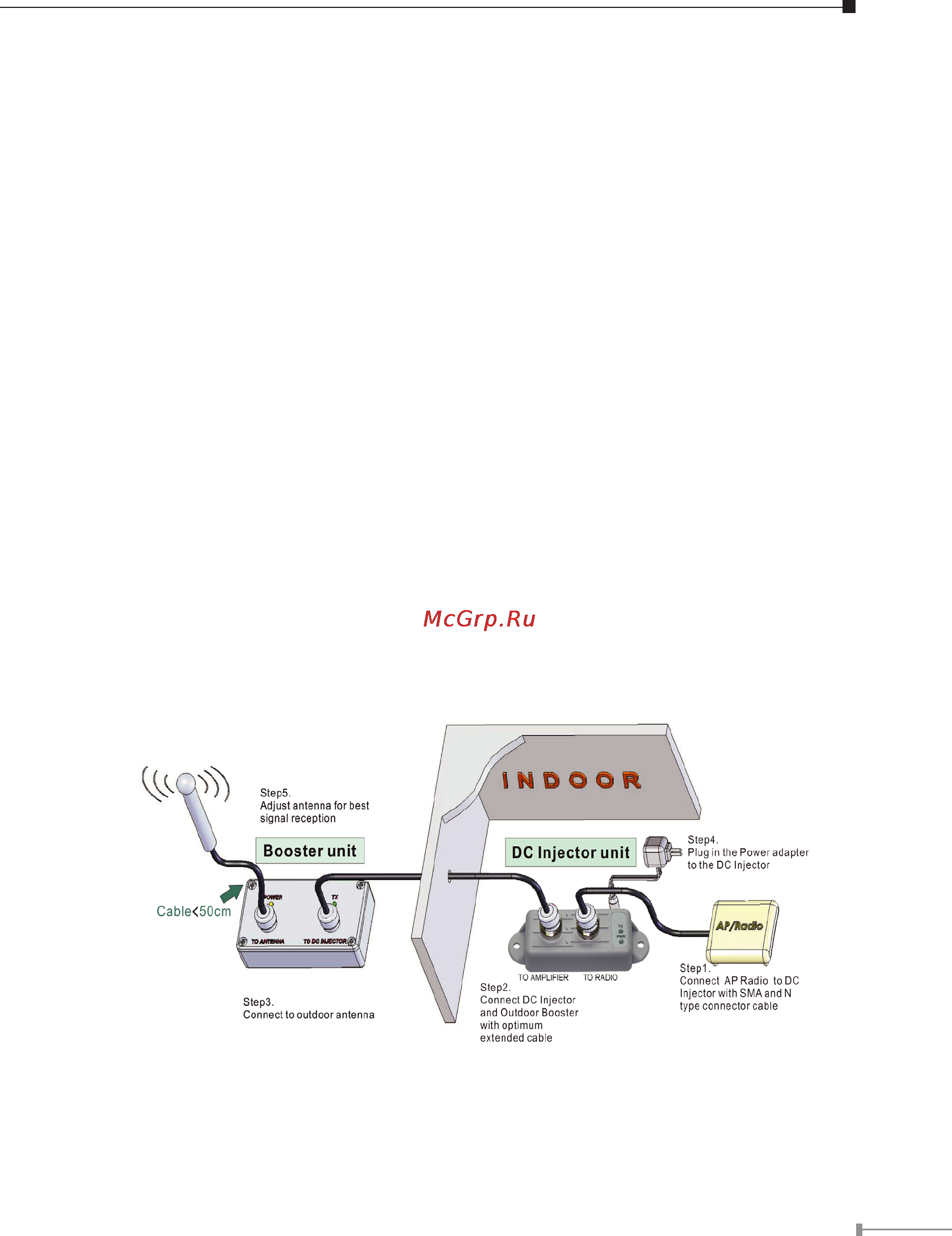

Hardware Installation
l
l
l
l
l
l
l
l
l
l
