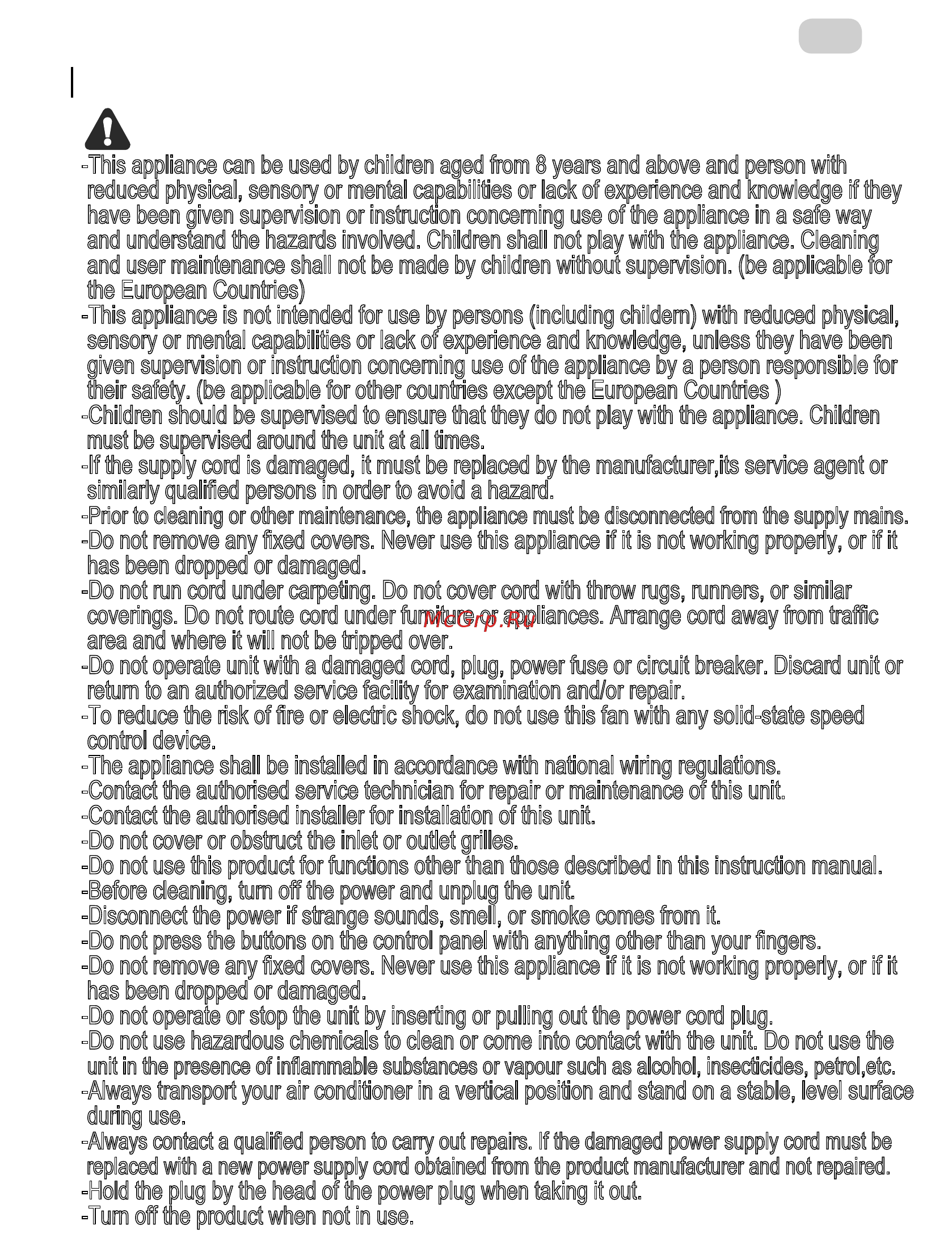

![Ardesto ACM-09CRN7 [31/64] Cautions](/views2/1712836/page31/bg1f.png)
31
Safety Precautions
-Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
-Use only the included accessories and parts, and specified tools for the installation. Using
non-standard parts can cause water leakage, electrical shock, fire, and injury or property damage.
-Make sure that the outlet you are using is grounded and has the appropriate voltage. The
power cord is equipped with a three-prong grounding plug to protect against shock. Voltage
information can be found on the nameplate of the unit.
-Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker
(the fuse or circuit breaker needed is determined by the maximum current of the unit. The
maximum current is indicated on the nameplate located on unit), have a qualified electrician
install the proper receptacle.
-Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
-
The unit must be kept free from obstruction to ensure proper function and to mitigate safety hazards.
-DO NOT modify the length of the power cord or use an extension cord to power the unit.
-DO NOT share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
-DO NOT install your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
-
DO NOT install the unit in a location that may be exposed to combustible gas, as this could cause fire.
-The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll
over objects, as these could cause tipping.
-DO NOT operate a unit that it has been dropped or damaged.
-The appliance with electric heater shall have at least 1 meter space to the combustible materials.
-Do not touch the unit with wet or damp hands or when barefoot.
-If the air conditioner is knocked over during use, turn off the unit and unplug it from the main power
supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit
has been damaged, contact a technician or customer service for assistance.
-In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
-Your air conditioner should be used in such a way that it is protected from moisture. e.g.
condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be
pulled into water or any other liquid. Unplug immediately if it occurs.
-
All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.
-The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The
specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
WARNING: To prevent death or injury to the user or other people and property damage,
the following instructions must be followed. Incorrect operation due to ignoring of
instructions may cause death, harm or damage.
This symbol indicates that ignoring instructions may cause death or serious injury.
2
Cautions
-This appliance can be used by children aged from 8 years and above and person with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision. (be applicable for
the European Countries)
-This appliance is not intended for use by persons (including childern) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. (be applicable for other countries except the European Countries )
-Children should be supervised to ensure that they do not play with the appliance.
Children
must be supervised around the unit at all times.
-If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
-
Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
-Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it
has been dropped or damaged.
-Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
-Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or
return to an authorized service facility for examination and/or repair.
-To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
-The appliance shall be installed in accordance with national wiring regulations.
-Contact the authorised service technician for repair or maintenance of this unit.
-Contact the authorised installer for installation of this unit.
-Do not cover or obstruct the inlet or outlet grilles.
-Do not use this product for functions other than those described in this instruction manual.
-Before cleaning, turn off the power and unplug the unit.
-Disconnect the power if strange sounds, smell, or smoke comes from it.
-Do not press the buttons on the control panel with anything other than your fingers.
-Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it
has been dropped or damaged.
-Do not operate or stop the unit by inserting or pulling out the power cord plug.
-Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the
unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc.
-Always transport your air conditioner in a vertical position and stand on a stable, level surface
during use.
-
Always contact a qualified person to carry out repairs. If the damaged power supply cord must be
replaced with a new power supply cord obtained from the product manufacturer and not repaired.
-Hold the plug by the head of the power plug when taking it out.
-Turn off the product when not in use.
Cautions
3
EN
