13
three modes, each mode has two kind of key length and that is decide on the Key
Format you selected. 64bit (5ASCII / 10HEX.), 128bit (13ASCII / 26HEX) or 256bit
(29ASCII / 58HEX).
u Key Format – You can select WEP key format to HEX (Hexadecimal code, 0-9, A-F) or
ASCII (American Standard Code for Information Interchange, 0-9, a-z, A-Z).

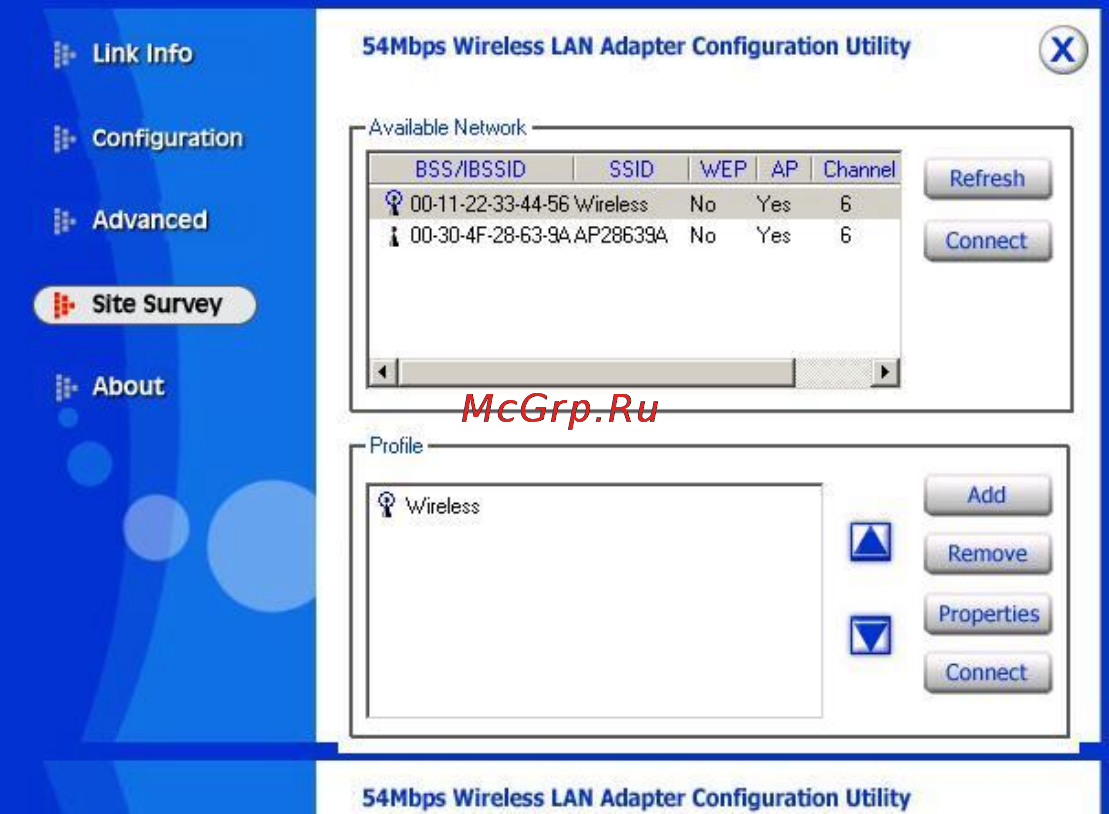

3.4 Site Survey
This screen shows the APs or Adapters which available fro WL-3560 to connect. If you con-
figure the SSID of WL-3560 as “Any”, it will show the available APs and Adapters at the same
time.
Click “ Refresh “ to collect the BSSID and Channel information of all the wireless devices
around you.
If you wish to connect to any device on the “Available Network” list, select the device on the
list and click “Connect”, then WL-3560 will connect to the selected device and create a profile
for the selected device automatically.
You can configure profile with those buttons:
Ø Add: Add a new profile.
Ø Remove: Delete the profile you selected.
Ø Properties: Modify the profile you selected.
After press Add or Properties, the dialog box will appears for configuring profile. You can refer
to above to know how to configure the setting for your need.
3.5 About
It shows the current Driver, Firmware and Utility version.
