Руководство по вводу в эксплуатацию Страница: 88

Daikin REYQ36M7W1B [88/125] System settings

Daikin RXQ20PY16 [88/125] System settings

Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

Operating Optional Functions

6. System Settings

6-1 Network

iTM allows you to operate it remotely via the Internet, or receive notication via E-mail in the case

of an error. To use these functions, you must set up the network on the iTM unit.

The following describes how to set this up.

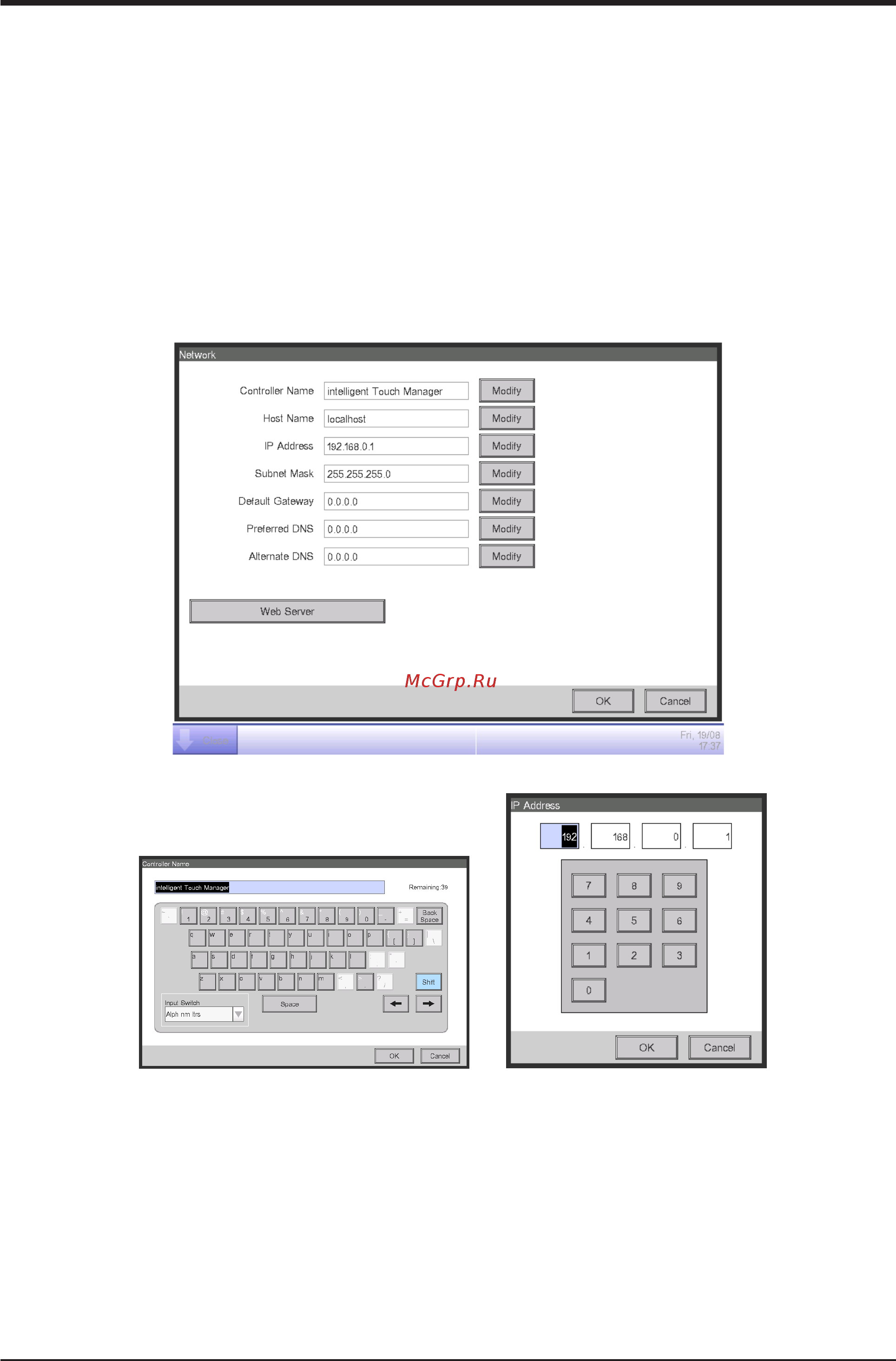

1. Touch the Network button on the System Settings tab of the Menu List screen to display the

Network screen (see page 12).

(1)

(2)

(3)

(4)

(5)

(6)

(7)
