Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

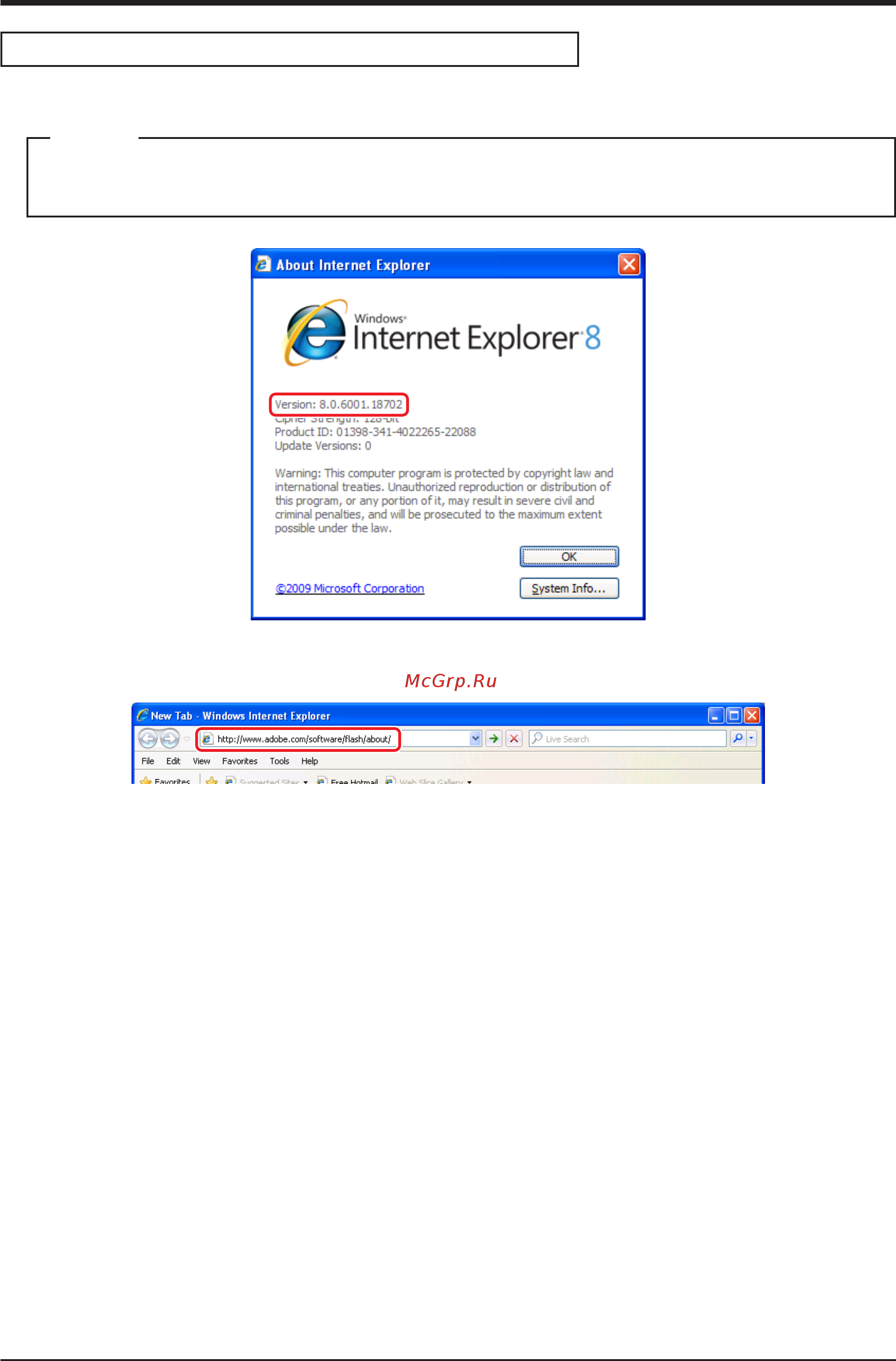

Checking the Web browser and Flash Player versions

1. Start up the Web browser (Internet Explorer) and select [About] from the [Help] menu.

In the case of Firefox, you can check by selecting [Help]

→

[About Mozilla Firefox].

NOTE

Check that the version is 8.0.xxxx.xxxxxxx or 9.0. xxxx.xxxxxxx. (The xxx portion may be any)

2. Enter the address of the site for checking the Flash Player version: http://www.adobe.com/

software/ash/about/

Содержание

Commissioning manual 1
Dcm601a51 1
Intelligent touch manager 1
About the itm intelligent touch manager 2
Basic functions 3 2
Contents 2
Detailed screen description 2
Engineering 2
Names and functions 2
Service settings 3 2
System overview 2
Operating optional functions 7 3
Optional functions 4 3
Service settings 4 3
System settings 7 3
Appendix 20 4
Hardware specifications 22 4
Itm integrator 09 4
Itm integrator explanation 09 4
Useful information 20 4
1 system configuration 5
About the itm intelligent touch manager 5
System overview 5
1 engineering workflow 6
At the office see 6
At the site 6
Carried out on site after installation 6
Engineering 6
Engineering works can be roughly divided into those carried out at the office in advance and those 6
New installation without using the pre engineering tool 6
The following diagram shows the engineering workflow 6
Various engineering works are necessary for using the itm 6
At the office see 7
At the site 7
New installation by using the pre engineering tool 7
2 logging into service mode 8
Furthermore if the screen is locked entering the service password instead of the administrator 9
Password after carrying out the special operation indicated below allows you to unlock the 9
Screen and log into the se mode 9
1 setup screen structure 10
Basic functions 10
Detailed screen description 10
Names and functions 10
2 service settings tab 11
3 system settings tab 13
1 mgmt point data regist 14
Basic functions 14
Service settings 14
The figure below shows the flowchart of a management point registration 14
Registering a management point with the itm unit 15
Check items list 20
Check results on the information check screen 20
Checking the setting results 20
If an error is found discards the edited content retained until then and restores the saved original data 20
No error is displayed if no error is found touch the close button to close the screen 20
Touching the check button 13 checks the content of the current settings data and displays the 20
Common 1 tab 22
Detailed mgmt point attributes screen and button descriptions 22
Displayed items vary depending on the management point type 22
Management point type set up by switching the displayed tabs as necessary 22
Sets common items for a management point 22
Tabs and items displayed on the mng point attributes screen vary depending on the selected 22
The following describes the mng point attributes screen in detail 22
15 port no text field address combo box 23
Appears 23
Duplicated addresses cannot be registered all addresses must be different 23
For the address select it using the combo box 23
For the port number touch the modify button and enter it in the numerical input dialog that 23
Sets up the port number and address to which the management point belongs 23
16 detailed type field 24
17 mgmt pt id field 24
18 name text field 24
19 detailed info text field 24
20 icon field 24
Displays the detailed management point type however you cannot modify it here 24
Displays the management point id automatically allocated by the system however you cannot 24
Double byte 24
Modify it here 24
Set up information about the management point as necessary 24
Sets up the icon for the management point 24
Sets up the management point name 24
Specify a name for the management point using 1 to 12 characters irrespective of single or 24
The number of characters you can enter is 0 to 50 irrespective of single or double byte 24
The range of values you can enter set is as indicated in the table below 24
Touch the modify button and enter the name in the name input dialog that appears 24
Touch the modify button and enter the value in the text input dialog that appears 24
Touch the modify button and set the icon in the icon setup screen that appears 24
Acceptable range for each numeric value 32
Registering management points using a csv file 34
Commissioning manual em11a021 dcm601a51 intelligent touch manager 37
Csv file format 37
Management point data is registered can be used as a template for new implementations since 37
Numeric values indicated in each item correspond to the column number in the csv file the first column is fixed and used for data type identification blank items indicate there is no applicable data 37
Only the area used by the system and the header portion are output 37
Set to 1 when not used the item is regarded as not used if either the object type or object instance value is set to 1 for information on the object type refer to the applicable guideline iso16484 5 37
The following table shows the csv format for management point data registration 37
The format of the csv file output from the itm is as shown below a csv file output when no 37
Commissioning manual em11a021 dcm601a51 intelligent touch manager 38
2 other setting 39
3 diii net engineering 40
3 is a list of connector plugs for each itm port 4 is a list of central units recognized on the 41
Confirmation dialog touch the yes button to commit the screen closes and the system restarts 41
If you install or uninstall another controller please review the configuration of the setpoint 41
Port selected in 3 where its name is displayed along with its main sub setting central units 41
Pressing the refresh button 5 updates 3 and 4 touching the ok button displays a 41
Range limit 41
That can be installed together are as follows 41
This itm is not displayed in 4 41
4 time zone 42
5 changeover option 42
1 is an air conditioner list displaying all group addresses when no management points are 43
2 comm err group address of the connected unit with communication error 43
Changeover option for the other indoor units in the same refrigeration system also becomes 43
Maintenance a group address of a connected unit under maintenance 43
N a a group address not registered as a management point 43
Option for the other indoor units in the same refrigeration system becomes n a 43
Registered columns other than group addr are displayed blank 43
Screen using the close button 43
Select the indoor unit for which you want to release the changeover option from 1 and touch 43
Select the indoor unit for which you want to set the changeover option from 1 and touch the 43
Selectable touching the refresh button 4 updates the contents displayed in 1 close the 43
Settings button 2 the changeover option becomes able at that moment the changeover 43
The displayed contents are as indicated in the table below 43
The release button 3 the changeover option becomes selectable at that moment the 43
6 history mgmt delete 44
7 pre engineering 45
By using the pre engineering tool demo version for pc described here together with the csv file 45
Commissioning manual em11a021 dcm601a51 intelligent touch manager 45
Engineering tool 45
Input output function described in 4 1 and the backup function described in 4 9 you will be able to 45
Itm in a large new property modifying settings due to a large scale equipment renovation or 45
Itm integrator uses the backup data for restoring because it is not compatible with the pre 45
Making extensive modifications to the settings due to the implementation of new functions etc 45
Pre engineering is carried out to lessen the work to be carried out on site such as when installing 45
Pre engineering tool and itm unit data flow diagram 45
Set up most of the items at the office including detailed settings and automatic control settings for 45
The management points as well as system settings 45
Relationship between the assumed scenario and functions 46
Displaying the main screen 47
Download the pre engineering tool from the distributor s page 47
Indicated in the table below 47
Pc requirement for running the pre engineering tool 47
Start up the pre engineering tool on the pc 47
To use the pre engineering tool a separate pc is necessary the requirements for the pc are as 47
Main screen 48
Scenario 1 installation to new property 49
Screen of demo version for pc 50
Scenario 2 maintenance of existing property when carrying out pre engineering using the current setting 53
Scenario 3 restore with existing property s backup data 55
8 upgrade 56
Scenario 4 implementation of new functions due to existing property s upgrade 56
9 backup 57
10 installation 59
11 contact info 61
Accessible from the standard view screen see user s manual em11a015 62
The registered contact information can be checked on the contact tab of the information screen 62
12 setting outdoor unit 63
Caution 63
Commissioning manual em11a021 dcm601a51 intelligent touch manager 64
In the application using the diii net expander adapter if you monitor the outdoor units or 64
Intended functions monitoring of outdoor units energy navigator and leakage detection 64
Jumper pins were cut and those directly connected to itm should be 10 or less 64
Need to cut the jumper pin of the diii net expander adapter 64
Precautions when using diii net expander adapter 64
Table of types 64
The jumper pin to be cut is j1 only 64
The total number of outdoor units connected to the diii net expander adapter whose j1 64
There are two jumper pins to be cut so be sure to cut both of 64
Use internal pi or such other functions processed based on information from the outdoor units you 64
Commissioning manual em11a021 dcm601a51 intelligent touch manager 65
Commissioning manual em11a021 dcm601a51 intelligent touch manager 66
Commissioning manual em11a021 dcm601a51 intelligent touch manager 67
Commissioning manual em11a021 dcm601a51 intelligent touch manager 68
Commissioning manual em11a021 dcm601a51 intelligent touch manager 69
13 leakage check 70
Before starting leakage check inform the user of note described on page 80 70
Can also be run from the web remote management see page 90 70
Commissioning manual em11a021 dcm601a51 intelligent touch manager 70
Date and time you can also run leakage check manually on site furthermore leakage check 70
Installed in a property by sending instructions from the itm to the outdoor units via diii net using 70
Leakage check is a function available in vrv iii or later outdoor units it checks refrigeration 70
Scope of this speciﬁcation 70
System configuration 70
Systems for leakage leakage check can be carried our centrally for multiple refrigeration systems 70
The following shows the system configuration diagram 70
The leakage check takes approximately 180 minutes to complete 70
The schedule control function you can make the outdoor units run leakage check at a specified 70
Amount of refrigerant charged by the outdoor unit using refrigerant charging operation 71
Leakage check functions 71
Leakage check is not possible if refrigerant charging operation has not been run because 71
Log into se mode from the menu list screen and display the service settings tab see page 7 71
Manually register indoor units that belong to the refrigeration system of each outdoor unit based on 71
Outdoor unit s address setting see installation manual em11a016 71
Preparations 71
Refrigerant charging operation 71
Refrigerant charging operation must have been run during installation and trial of outdoor units 71
Registering indoor units 71
The following preparations are necessary for running leakage check 71
The installation information 71
The outdoor unit s address is necessary make sure addresses are set up in advance 71
Without it the outdoor unit cannot recognize the amount of automatically charged refrigerant 71
Running leakage check by schedule control 73
Copying a schedule program 75
Starting leakage check by manual operation 76
Stopping leakage check by manual operation 77
A file with the same name already exists the leakage check results are saved by naming the 78
Appears touching the yes button outputs to the usb memory the leakage check results for all 78
Be used an error dialog is displayed and the output to csv file aborted 78
Commissioning manual em11a021 dcm601a51 intelligent touch manager 78
File leakagecheck sequential number 1 to 9 if there are no more sequential numbers that can 78
Insert a usb memory into the itm and touch the csv output button 20 a confirmation dialog 78
Outdoor units registered in the outdoor unit list 19 as a csv file named leakagecheck csv if 78
Output the leakage check results to a csv file 78
Outputting the leakage check results to a csv file 78
The csv file format specification is as follows 78
To the web 78
When operation is via web connection the csv is output to the hdd of the pc connected 78
Caution 79
Conflict with other controls 80
The following describes the operation when another control comes into conflict with the leakage 80
Commissioning manual em11a021 dcm601a51 intelligent touch manager 82
Failure mode 82
The following describes the failure modes of the leakage check 82
Commissioning manual em11a021 dcm601a51 intelligent touch manager 83
Commissioning manual em11a021 dcm601a51 intelligent touch manager 84
1 activation 85
Acquiring the activation key 85
Entering the activation key 85
Optional functions 85
Service settings 85
2 dealer option setup 87
1 network 88
Operating optional functions 88
System settings 88
2 web remote management 91
For settings necessary on the itm unit see 6 1 network this chapter describes the pc setup 91
Procedure 91
Such as a web browser the requirements for the pc are as indicated in the table below 91
The itm can be remotely operated via the internet or local network 91
To use the web remote management functions you need to separately prepare a pc and software 91
And itm unit by referring to the connection diagrams below 92
Commissioning manual em11a021 dcm601a51 intelligent touch manager 92
Connect the pc and itm unit into a network using an ethernet cable 92
Connecting the pc and itm 92
Ethernet cables use for connecting networks come in two types straight and cross connect the pc 92
Straight cable connection diagram cross cable connection diagram 92
Use a 100base tx or higher ethernet cross cable 92
Use a 100base tx or higher ethernet straight cable 92
When connecting the pc and itm directly 92
When connecting the pc and itm via a hub 92
Checking the web browser and flash player versions 93
Setting up the ip address windows xp professional 94
Click network connections 95
Double click local area connection 95
Select internet protocol tcp ip and click properties 96
Select properties 96
Administrator and set them up 97
Check that the settings are correct and click ok to close the internet protocol tcp ip 97
Click close to close the local area connection status screen and finish setup 97
Ip address 192 68 subnet mask 255 55 55 97
Itm settings at shipment are as follows 97
Properties and local area connection properties screens 97
Set them up as follows when connecting to the itm via local network 97
To connect to the itm via the internet ask its ip address and subnet mask to your network 97
Setting up the ip address windows vista business 98
Click manage network connections 99
Double click local area connection 99
Click properties 100
Select internet protocol version 4 tcp ipv4 and click properties 100
Setting up the ip address windows 7 professional 102
Double click local area connection 103
Select properties 103
Administrator and set them up 104
Select internet protocol version 4 tcp ipv4 and click properties 104
To connect to the itm via the internet ask its ip address and subnet mask to your network 104
Precautions when using internet explorer on windows vista and windows 7 105
Carry out the following procedure from the pc 106
Check whether the ethernet connection between a pc and itm is normal 106
Network connection check 106
Ip address and press the enter key in this example the ip address is 192 68 108
The command prompt starts up type ping followed by one single byte space and then the itm 108
Logging into service mode via web remote management 109
1 basic setup 110
Itm integrator 110
Itm integrator explanation 110
2 itm integrator service settings 115
Commissioning manual em11a021 dcm601a51 intelligent touch manager 115
Service settings described in this chapter are for the itm integrator unit settings for itm units are 115
Set up the itm integrator unit 115
The respective itm 115
To be made in the respective itm or from the itm integrator standard view screen by accessing 115
Service settings tab menu list screen 116
Controller access setup 117
1 troubleshooting 121
Appendix 121
Troubleshooting table 121
Useful information 121
Commissioning manual em11a021 dcm601a51 intelligent touch manager 122
1 itm hardware specification 123
Hardware specifications 123
Em11a02 125

Daikin REYQ36M7W1B [93/125] Checking the web browser and flash player versions

Содержание

Похожие устройства
