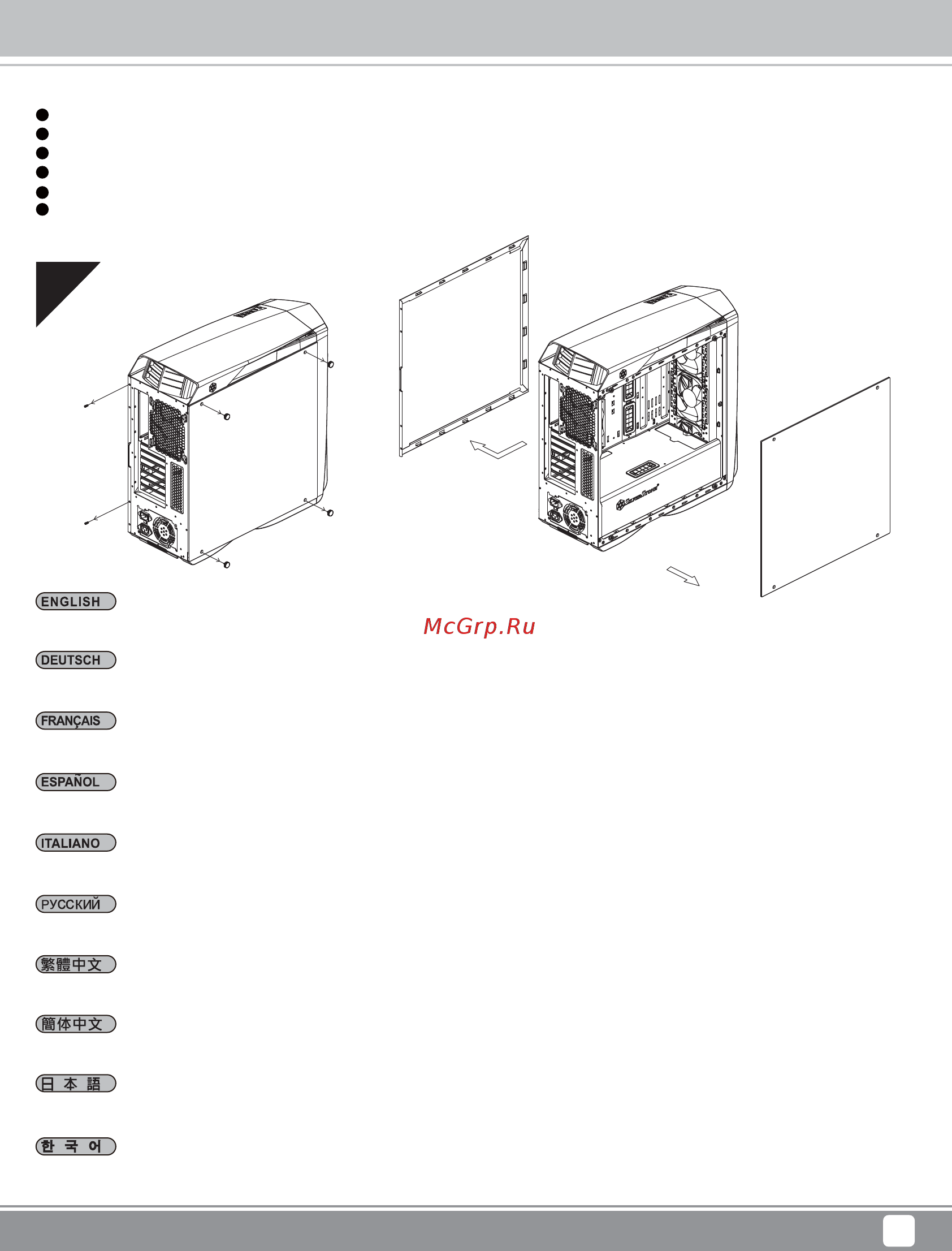

Installation Guide
Primera Series PM01-RGB / PM01-FX
4
Have all components collected.
Check that all components do not have compatibility problems with each other or with the case.
If possible, assemble the components outside the case first to make sure they are working.
Keep the motherboard manual ready for reference during installation.
Prepare a Philips screwdriver.
Be careful not to strike on glass side panel when removing it from the case.
1
2
3
4
5
6
Before you begin, please make sure that you
01
Lösen Schrauben an den linken und rechten Seitenwänden, nehmen Sie die Seitenwände ab
Desatornille tornillos de los paneles izquierdo y derecho para quitarlos
Per rimuovere i pannelli laterali allentare, per entrambi, le viti di serraggio
Loosen screws from both left and right side panels to remove them
Отвинтите по винта, крепящих левую и правую боковых панели, и снимите панели
왼쪽과 오른쪽 사이드 패널에서 개씩 나사를 풀어 사이드 패널을 제거합니다
取下左右側板螺絲,卸下側板
取下左右侧板螺丝,卸下侧板
両方の左右パネルからネジを緩めて、取り外します
Desserrez les vis des deux panneaux latéraux pour les retirer
