5. COM/GPIO

6. Power Jack

7. LAN Socket

2. DC-Iris

3. Audio Out

4. Video Out

8. Reset Hole

9. SD Card Slot

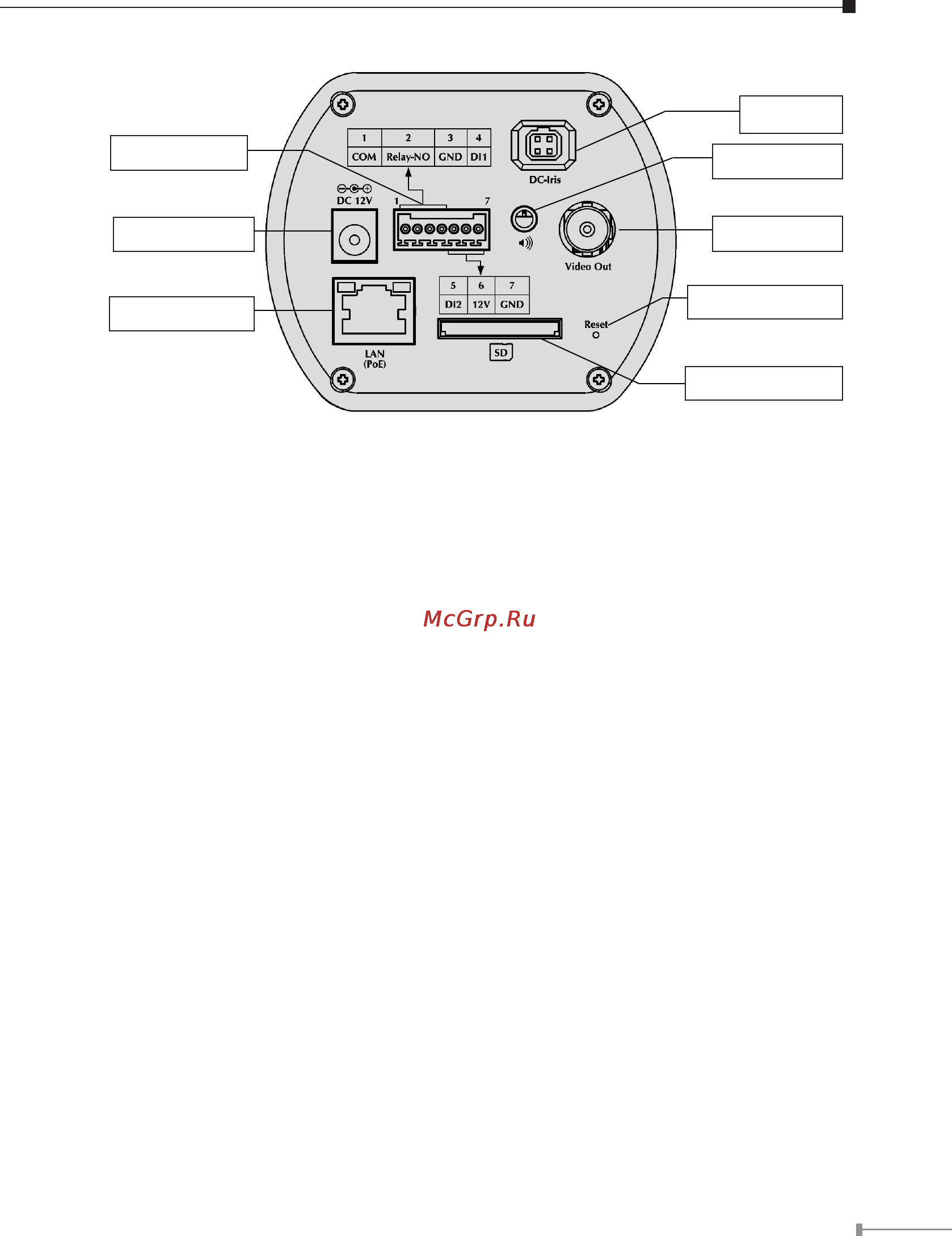

Rear View

1. MIC in:

The IP Camera has built-in an internal microphone. This microphone is hidden in

the pinhole located on the front panel.

2. DC-Iris:

The connector provides DC power can drive most DC-Iris lens for betterment of the

image quality.

3. Audio Output:

It allows this IP Camera to output audio. Connect with a 3.5Ø phone jack speaker

(external adaptor).

4. Video Out (BNC Connector):

The IP Camera also provides composite video output. User can use BNC video

cable to connect the IP Camera with a TV monitor or VCR.
