Planet ICA-HM135 [59/91] Audio configuration
![Planet ICA-HM135 [59/91] Audio configuration](/views2/1071355/page59/bg3b.png)
59

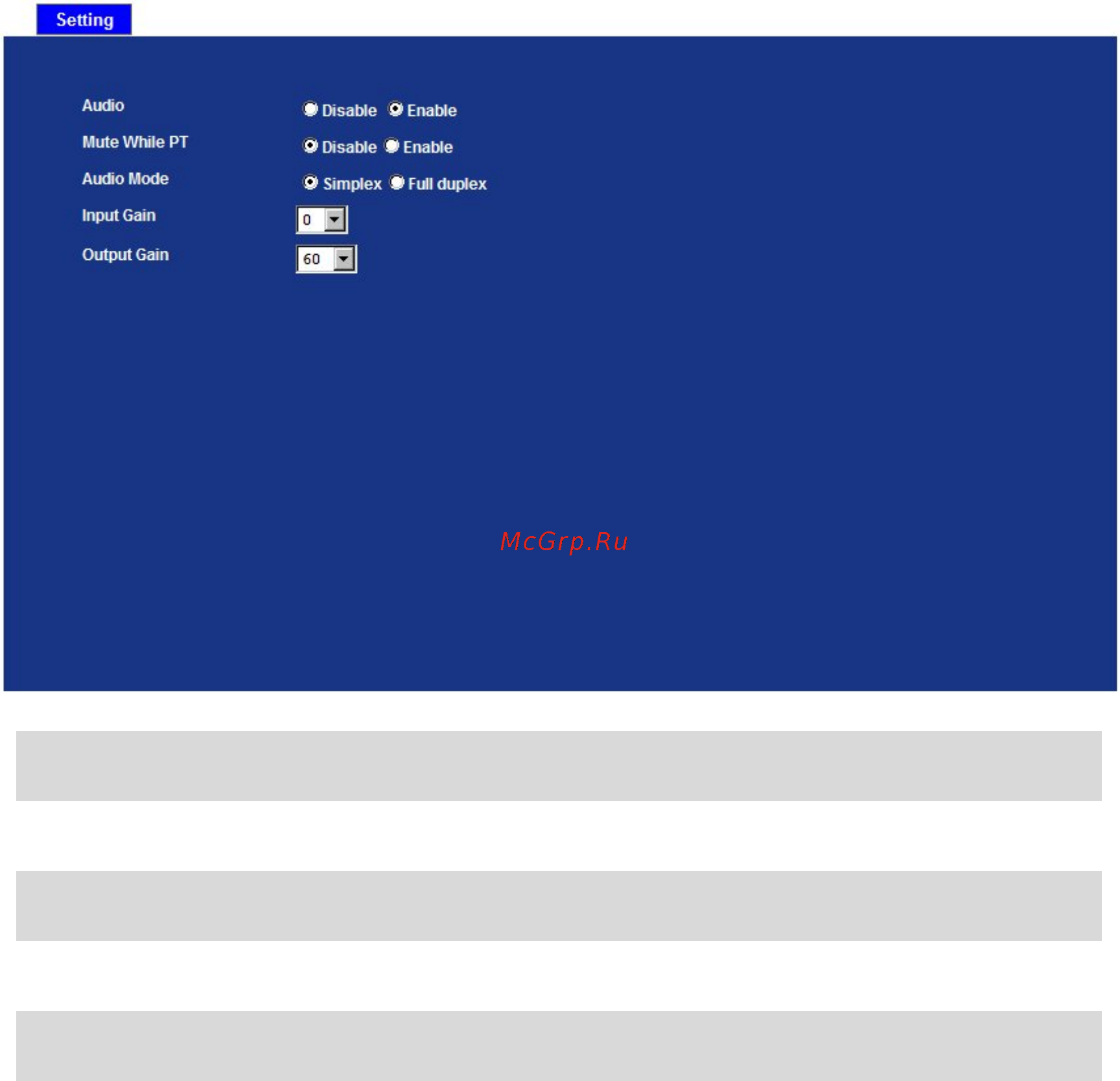

3.9 Audio Configuration
Audio: To enable or disable audio function
Mute While PT Mute the audio while pan and/or tilt motion
Audio Mode: To select Simplex or Full duplex (2-way audio) mode
Input Gain: To adjust gain of input audio
Output Gain: To adjust gain of output audio
