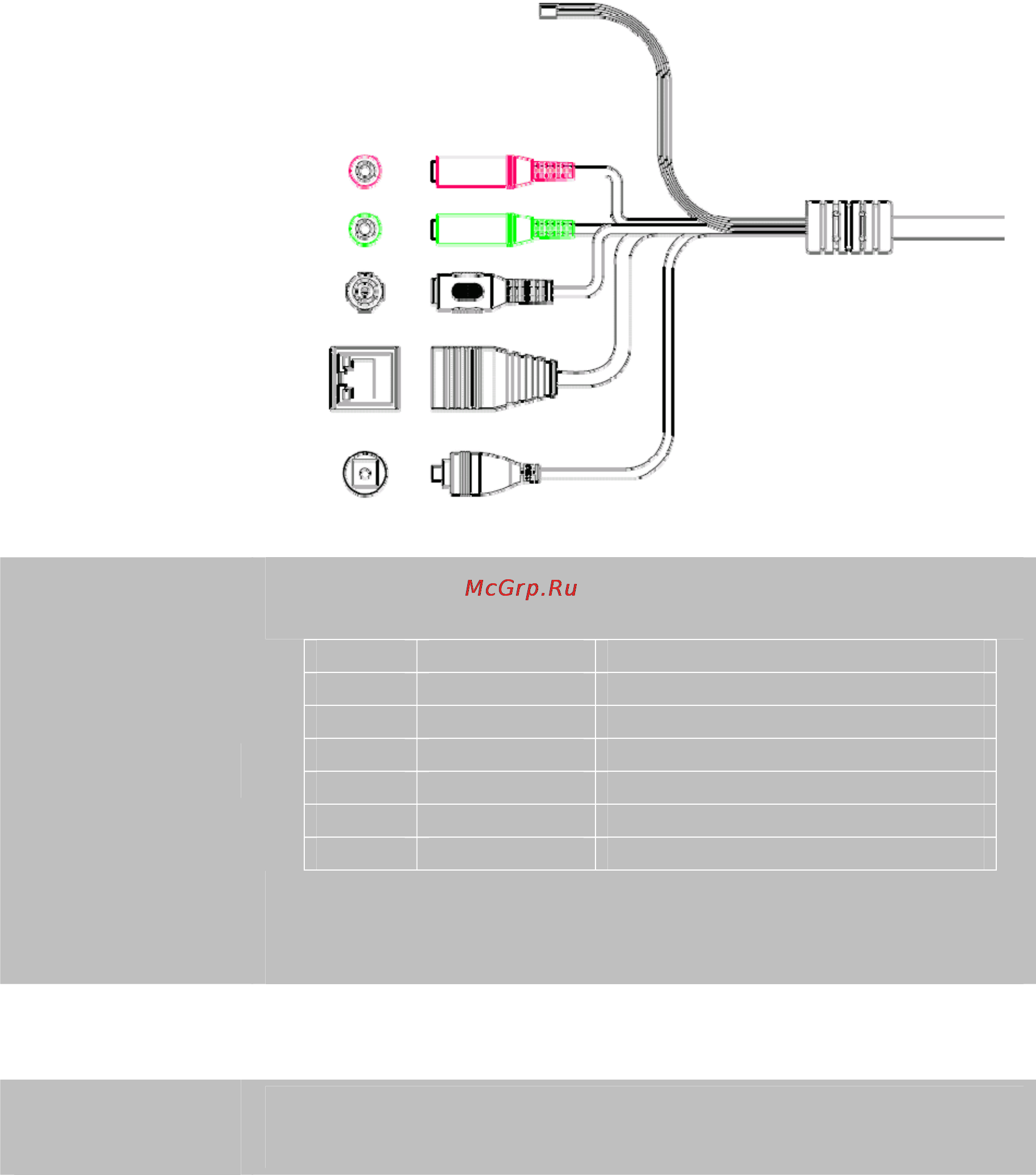

2.2 Physical Description
2.2.1 Identification of ICA-HM135 cable
RS-485 & DI/DO
MIC in
Line out
12V DC in
RJ-45
Reset Button
RS-485 & DIDO
Connect RS-485 to external scanner and connect to sensor in and alarm
out devices.
Name Cable Color Function
12VDC Brown/White DC 12V (50mA maximum)
GND Blue/White GND
D+ Purple/White RS-485 data +
D- Gray RS-485 data -
DI Green/White Digital signal input
DO Orange/White Digital signal output
NOTE: The RS-485 of internet camera is master that can control external
scanner.
MIC in
(audio in)
Connect a microphone to the network camera.
Line out
(audio out)
Connect a loud speaker to the network camera. This function is for voice
alerting and two-way audio.
DC-in Jack
The input power is 12VDC.
Note: ONLY use package power adapter supplied with the internet.
Otherwise, the product may be damaged.
9
