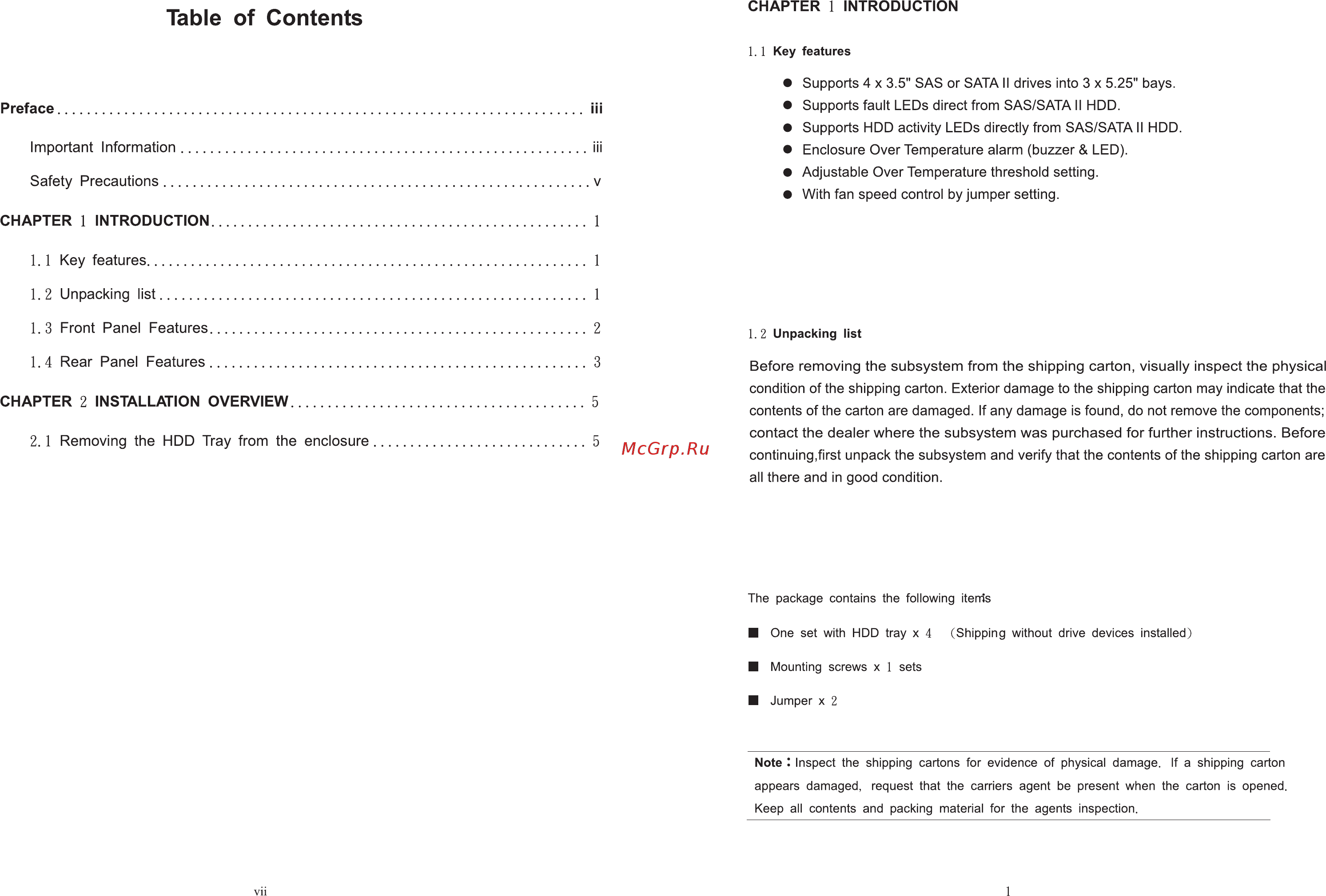

Table of Contents CHAPTER 1 INTRODUCTION 1 1 Key features Supports 4 x 3 5 SAS or SATA II drives into 3 x 5 25 bays Preface iii Supports fault LEDs direct from SAS SATA II HDD Supports HDD activity LEDs directly from SAS SATA II HDD Important Information iii Safety Precautions v Enclosure Over Temperature alarm buzzer LED Adjustable Over Temperature threshold setting With fan speed control by jumper setting CHAPTER 1 INTRODUCTION 1 1 1 Key features 1 1 2 Unpacking list 1 1 3 Front Panel Features 2 1 4 Rear Panel Features 3 1 2 Unpacking list Before removing the subsystem from the shipping carton visually inspect the physical condition of the shipping carton Exterior damage to the shipping carton may indicate that the CHAPTER 2 INSTALLATION OVERVIEW 5 2 1 Removing the HDD Tray from the enclosure 5 contents of the carton are damaged If any damage is found do not remove the components contact the dealer where the subsystem was purchased for further instructions Before continuing first unpack the subsystem and verify that the contents of the shipping carton are all there and in good condition The package contains the following itenis One set with HDD tray x 4 Shipping without drive devices installed Mounting screws x 1 sets Jumper x 2 Note t Inspect the shipping cartons for evidence of physical damage If a shipping carton appears damaged request that the carriers agent be present when the carton is opened Keep all contents and packing material for the agents inspection vii 1
