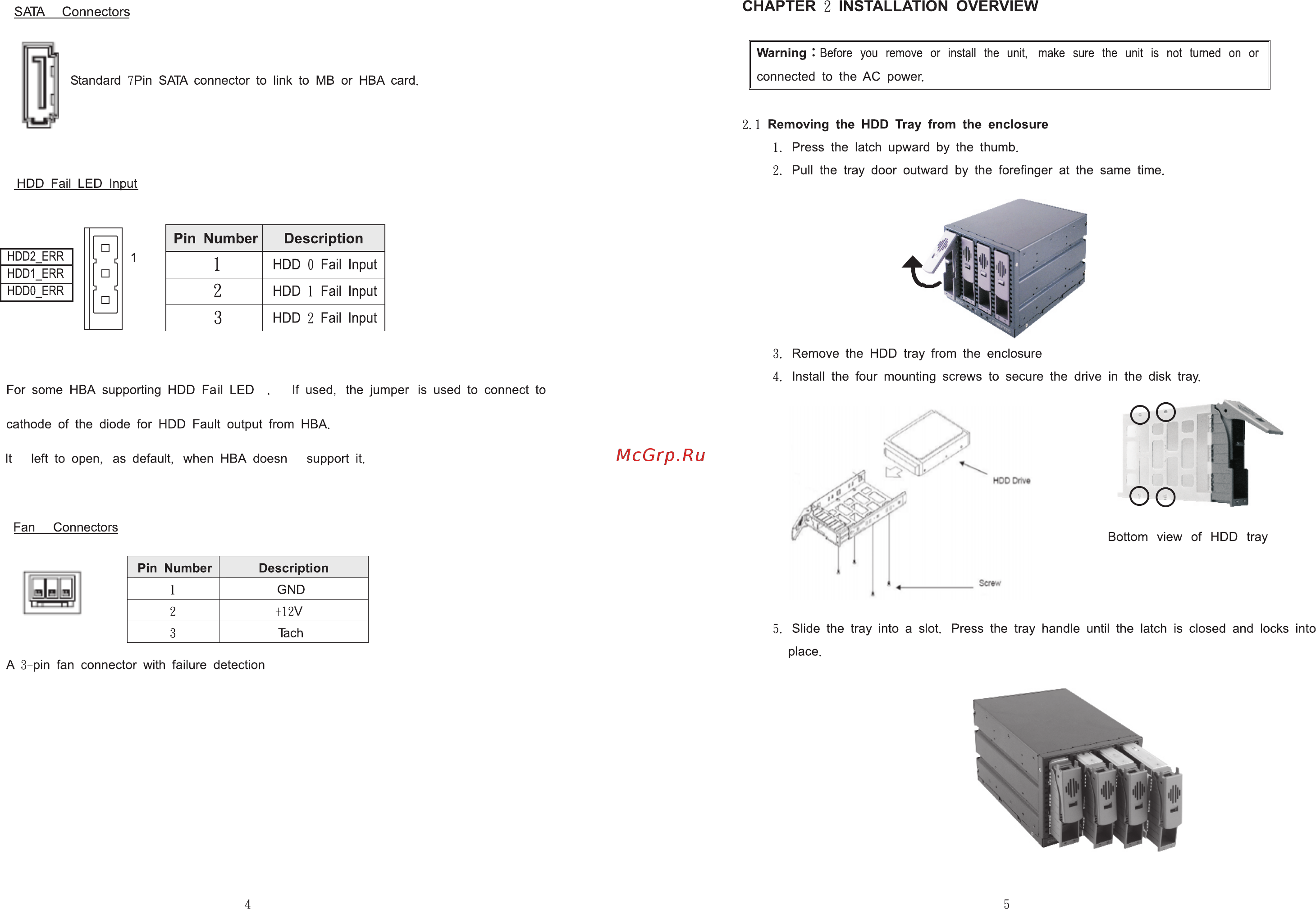

CHAPTER 2 INSTALLATION OVERVIEW SATA Connectors Warning t Before you remove or install the unit make sure the unit is not turned on or Standard TPin SATA connector to link to MB or HBA card connected to the AC power 2 1 Removing the HDD Tray from the enclosure 1 Press the latch upward by the thumb 2 Pull the tray door outward by the forefinger at the same time HDD Fail LED Input Pin Number HDD2_ERR 1 2 3 HDD1_ERR HDD0 ERR Description HDD 0 Fail Input HDD 1 Fail Input HDD 2 Fail Input 3 Remove the HDD tray from the enclosure 4 Install the four mounting screws to secure the drive in the disk tray For some HBA supporting HDD Fail LED If used the jumper is used to connect to cathode of the diode for HDD Fault output from HBA It left to open as default when HBA doesn support it Fan Connectors Pin Number BIBIIBI Description 1 GND 2 12V 3 Tach 5 Slide the tray into a slot Press the tray handle until the latch is closed and locks into place A 3 pin fan connector with failure detection 4
