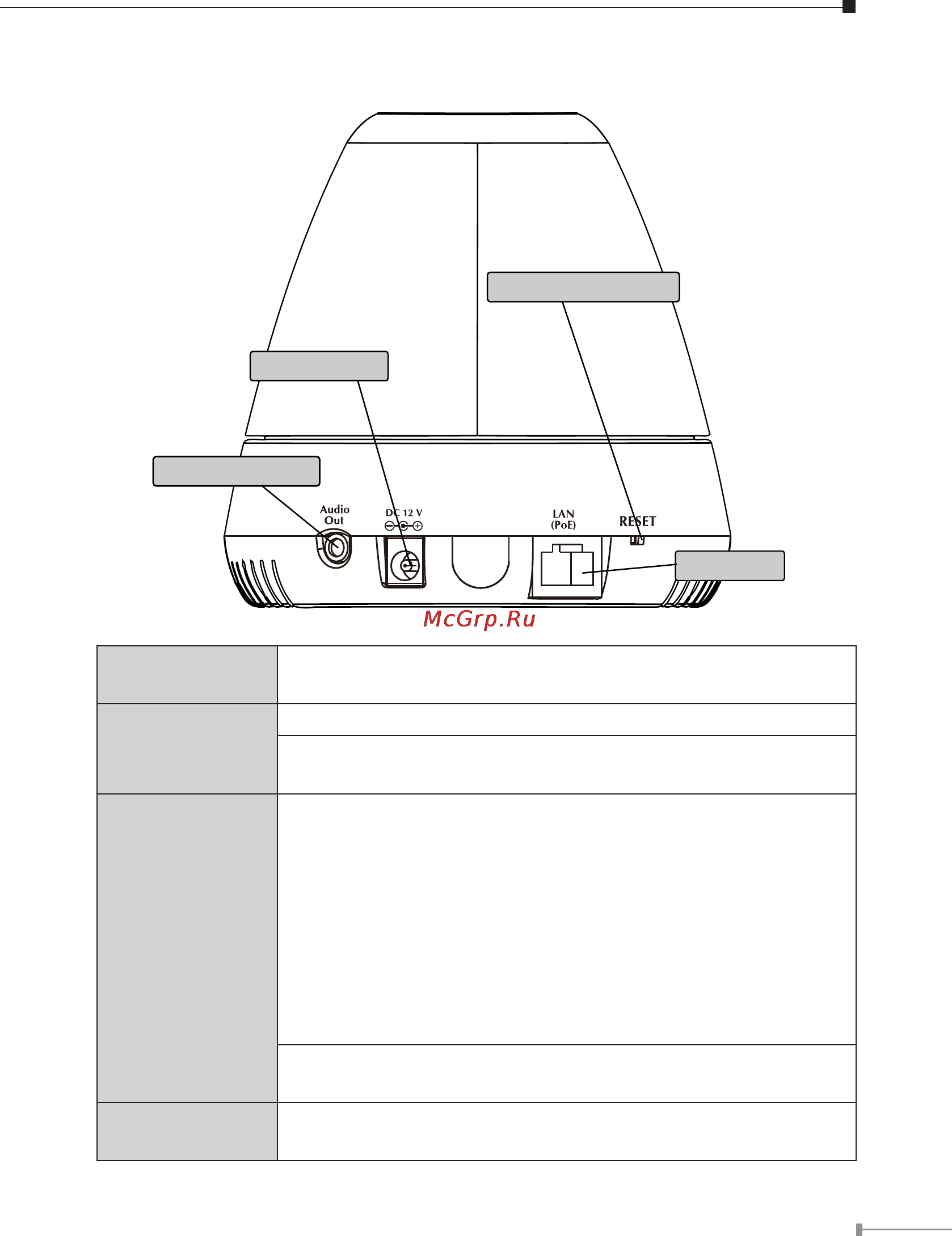

3.2.2 Rear Panel

Audio Output Jack

DC Power Jack

Factory Default Reset

LAN Socket

AudioOutput

Jack

Audio-out Jack allows this device to output audio or alerting

sound.

DCPowerJack

The input power is 12VDC.

NOTE: Only use the power adapter supplied with ICA-

M230/230.Otherwise,theproductmaybedamaged.

LAN Socket

The LAN socket is a RJ-45 connector for connections to

10Base-TEthernetor100Base-TXFastEthernetcabling.This

EthernetportbuiltN-Wayprotocolcandetectornegotiate

the transmission speed of the network automatically. Please

useCategory5“straightthrough”cabletoconnecttheICA-

M230/230toa100MbpsFastEthernetnetworkswitchor

hub.TheLANsocketiscompliantwithIEEE802.3afstandard

PoE interface. Use of one power source (either 802.3af PoE

or 12VDC) is allowed.

NOTE: If you need to connect the ICA-M230/230 to PC or

notebookdirectly,youshouldusecrossovercableinstead.

FactoryDefault

Reset

Thisbuttonishiddeninthepinhole.Keeppressthisbutton

over will reset the IP camera into factory default.
