DVR-460 Installation

InstallingHDD

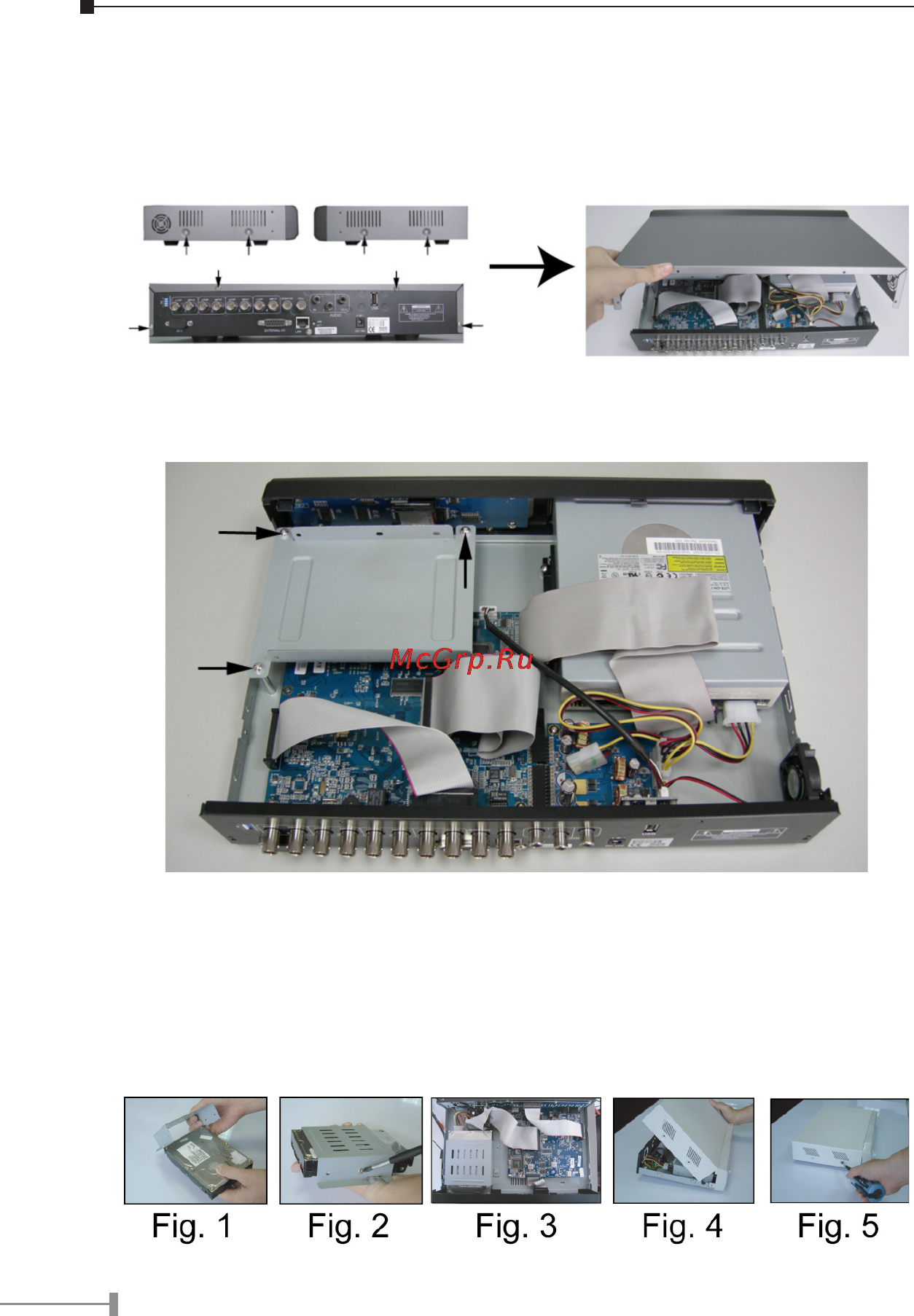

1. Loosen the screws on the upper cover and open the upper cover

of the DVR.

2. Screw out the HDD bracket. For the positions of the HDD bracket

screws, please refer to the figure below.

3. When install the first HDD, please set the jumper on the HDD to

“Master” mode.

4. Screw HDD onto the HDD bracket, two screws for each side.

And then screw the HDD bracket back to the DVR base. (Refer

to Fig.1 & 2).
