3. Screw out the HDD bracket from DVR. (Step 1~2)

4. Screw HDD onto the HDD bracket, there is two screws for each

side. And then screw the HDD bracket back to the DVR base.

(Step 3 ~ 8)

5. Connect the power connector and IDE BUS of DVR to installed

HDD. Please make sure to align the HDD precisely for pin con-

nection. (Step 9 ~14)

6. Close the upper cover of the DVR and fasten all the screws that

you loosened in the step 1.

HardwareInstallation

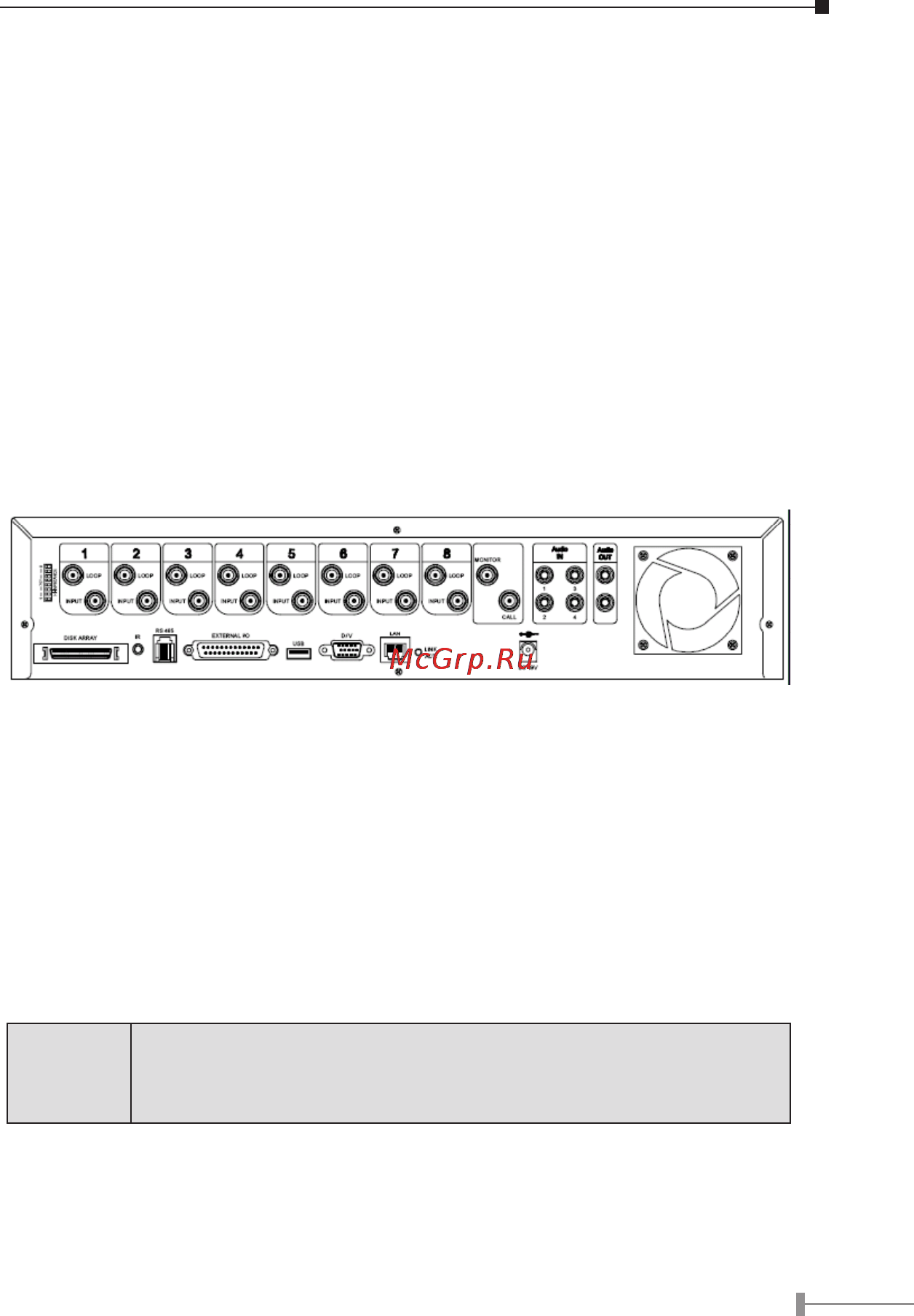

1. Please connect your cameras to the Video Input port 1~8.

2. Connect your monitor to “Monitor” connector.

3. Connect the LAN port to your switch/hub with a RJ-45 cable.

4. Connect IR reciver to the “IR” connector.

5. Connect the bundle power adapter to the power connector.

6. Press the “Power” button (which is located on the front panel) to

turn on your DVR-860.

NOTE:

ONLY use the power adapter supplied with DVR-

860. Otherwise, the product may be damaged.
