4.1 Using the Setup Wizard
The device’s Setup Wizard lets you configure your device easily and quickly. The wizard
will guide you through the necessary settings step-by-step.
To start the wizard, click Setup Wizard in the menu bar.

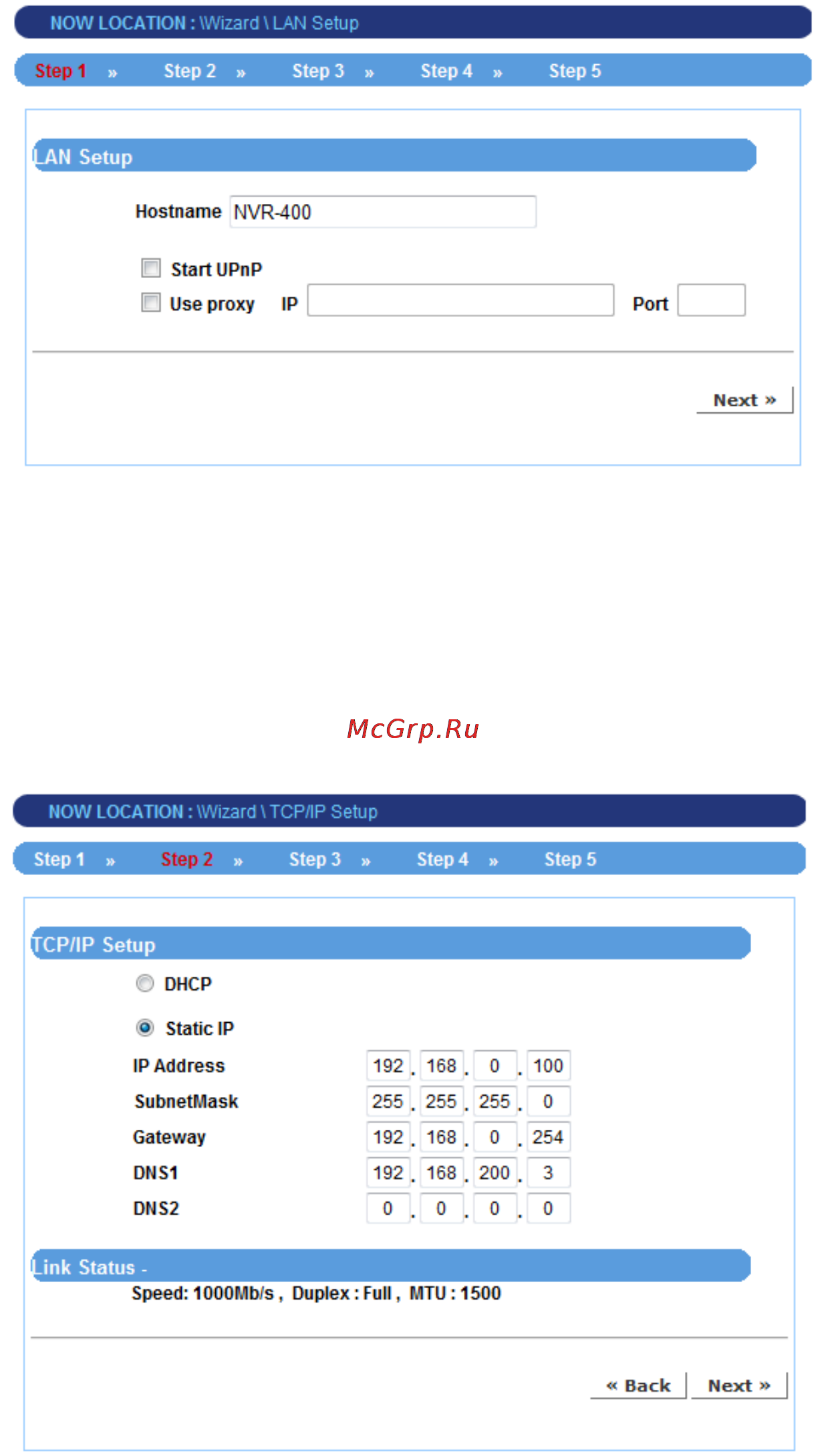

Step 1. LAN Setup
z Enter the Hostname for the device.
z Select Start UPnP to enable the device’s Universal Plug and Play function.
z If your network uses a proxy server, select Use proxy and enter the IP/Port values.
Step 2. TCP/IP Setup
z Select DHCP when your network uses the DHCP server; or select Static IP to
assign the IP address for the device directly.
For more information of TCP/IP settings, refer to the Lan section in Web
Configuration Utility.
NVR-400 User Guide
- 13 -
