Planet NVR-400 [39/43] Motion detection configuration
![Planet NVR-400 [39/43] Motion detection configuration](/views2/1071456/page39/bg27.png)

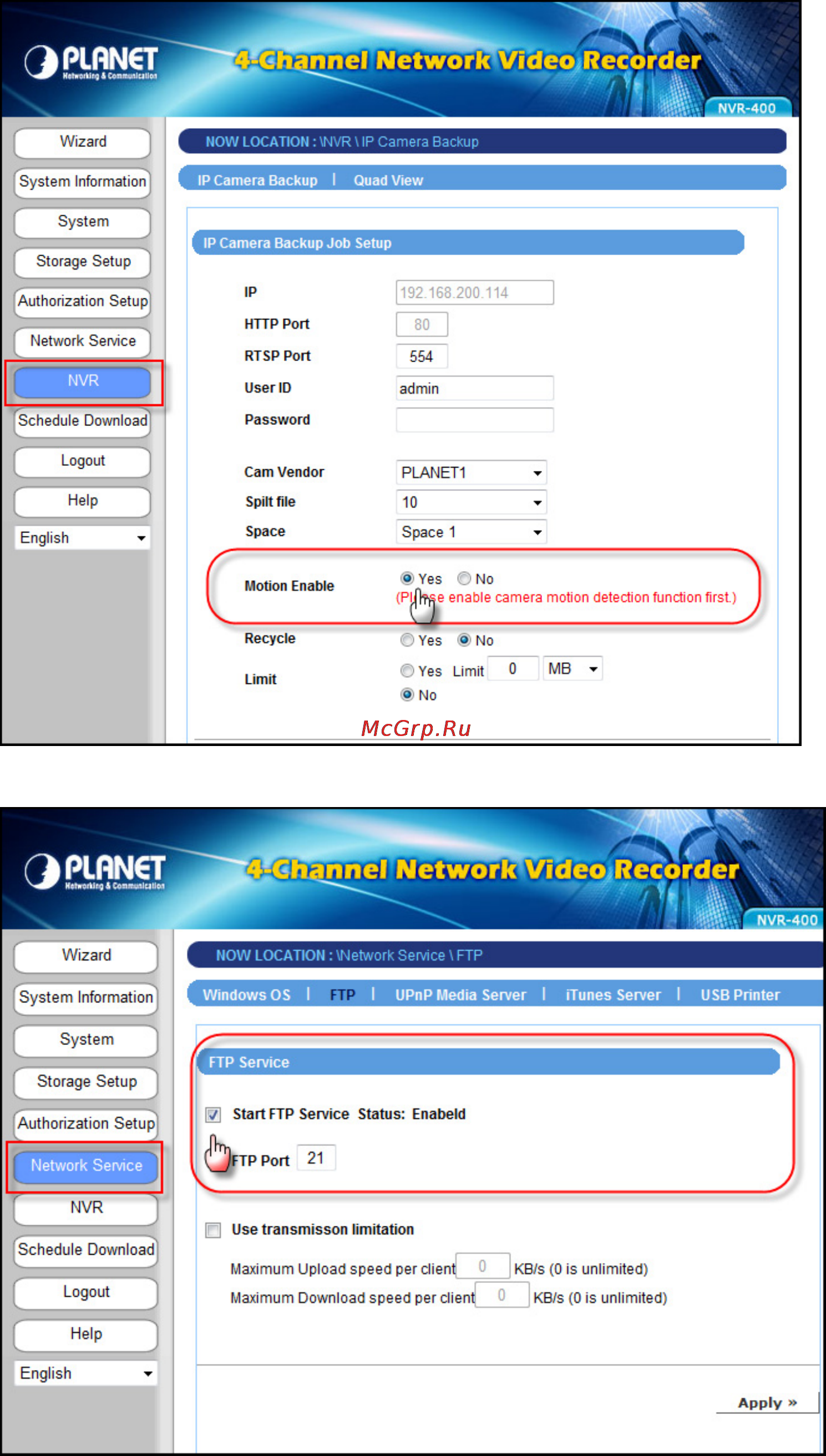

Motion Detection Configuration
Example for ICA-530
1. At NVR page, please click “yes” in Motion Enable item.
2. At Network Service page, Please Enable the FTP Service.
- 38 -
