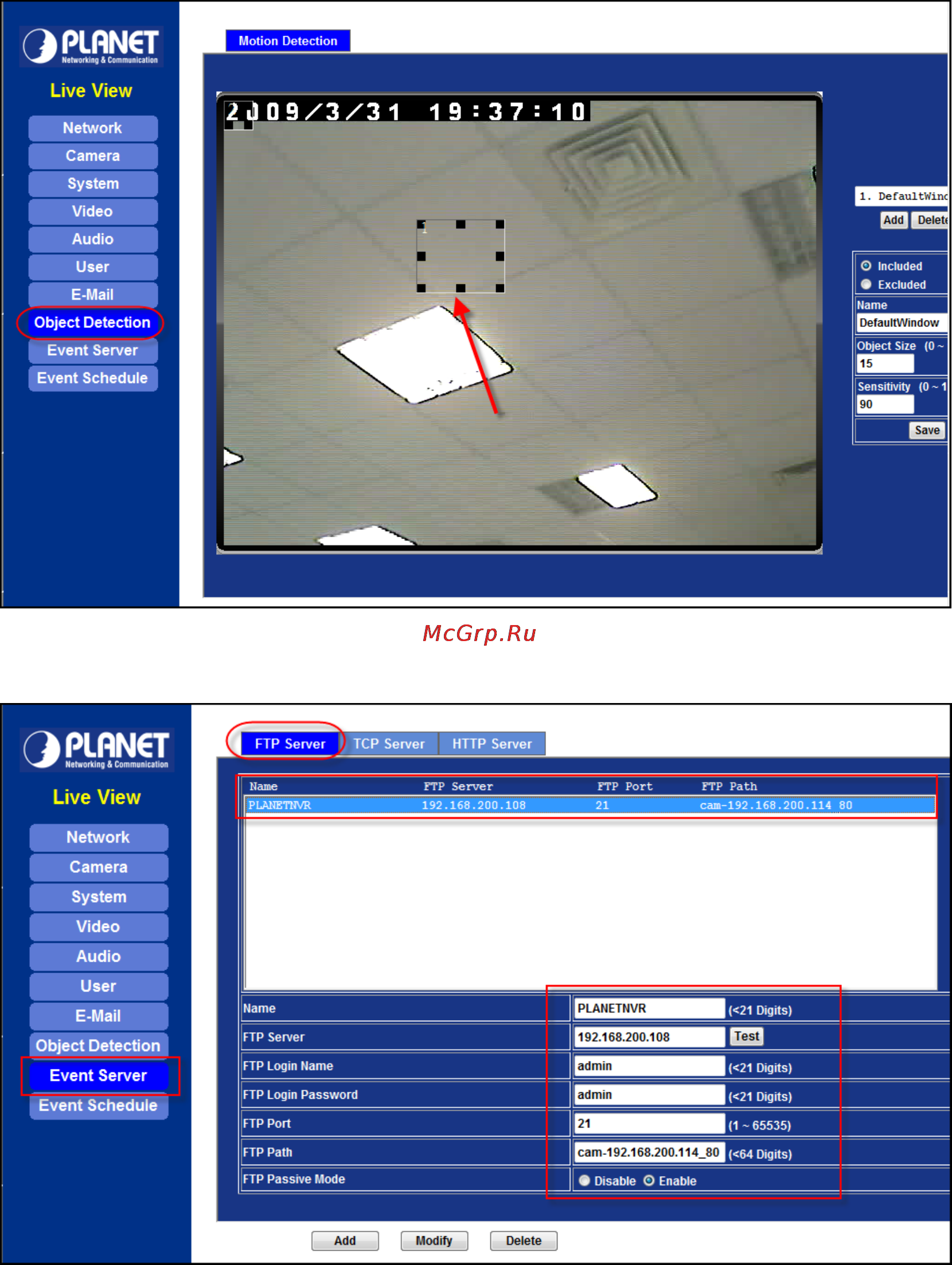

3. Login ICA-530 and set up an object detection area.
4. At Event Server page, please add NVR as the FTP Server.
Notice that the FTP Path must be the corresponding camera folder.
NVR-400 User Guide
- 39 -
