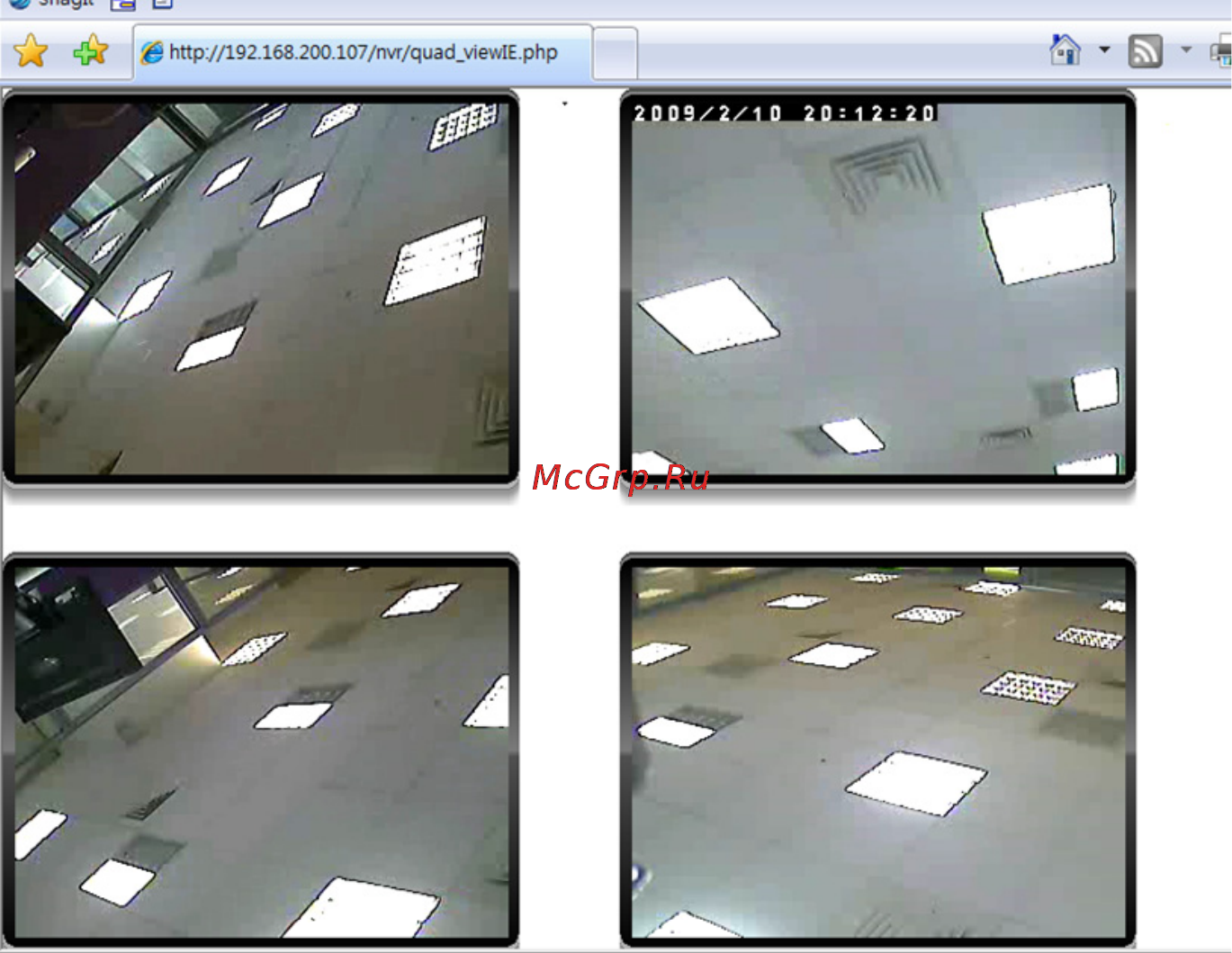

Quad View
In the Quad View screen, you can view the live video from the connected camera. You
can view up to four cameras simultaneously.
NVR-400 User Guide
- 33 -
