2.7 Virtual server

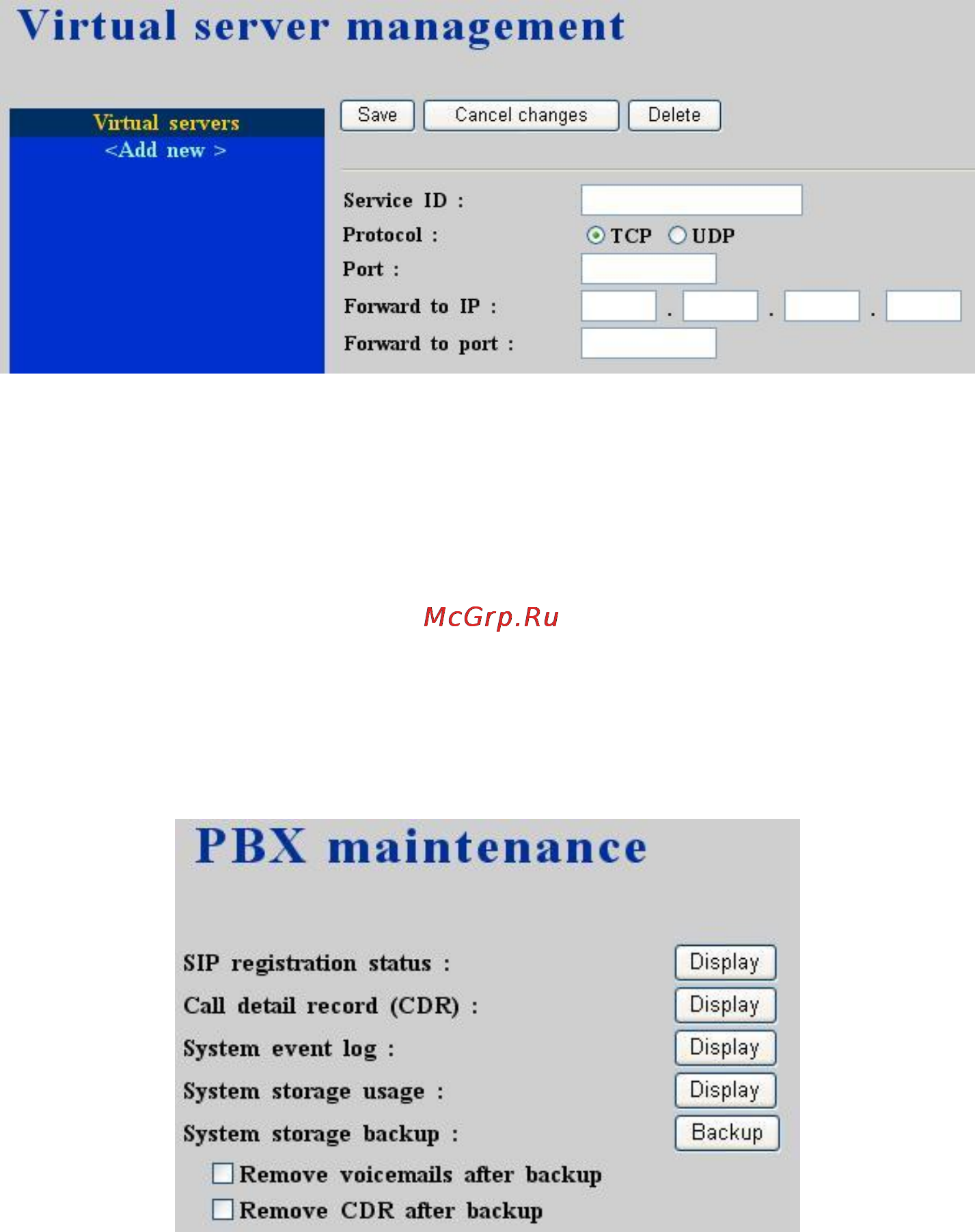

To enable access servers in LAN from a machine beyond WAN, select System -> Virtual

server to configure port mappings. Service ID names the service. Protocol and Port specify the

TCP/UDP port number on WAN IP to be forwarded to the Forward to port of Forward to IP

in LAN. Say 192.168.1.5 is a Mail Server to be seen from outside, one should configure TCP

port 25 to be forwarded to 192.168.1.5 port 25.

2.8 Maintenance

This page includes maintenance functions of IP PBX, from status display to storage backup, etc.

2.8.1 SIP registration status

This Display button lists registration status of each client and remote IP PBX and the IP/Port

from where they register. SIP trunk registrations, if any, are also shown in the end of the list.

Column Dynamic stands for whether the listed IP address is dynamic or specified. Reg.

Progress is the response code and message if registration has been attempted but not successful

so far. Slave Registrar column is used only under the stackable mode. It indicates with which

slave box a SIP client is registered. Blank means a client is registered with the master box.

2.8.2 Call Detail Record

CDR details each call record including calling and called numbers, channel (trunk if outbound)

in use, epochs when the call was made, answered, and ended, which yield the total and billable

durations. The last column denotes the disposition of a call like answered or not.
