2 System Configuration

This section describes how to configure system parameters used by IP PBX. The factory default

of LAN IP address is 192.168.1.1. Connect to LAN port and the configuration Web interface

could be reached at https://192.168.1.1/. Once connected, the browser will warn about accepting

a certificate. Please accept it. Then, give default administrator ID and password (both are admin)

to log in for administration. The administrator password could be changed in the User

Management page under user ID admin.

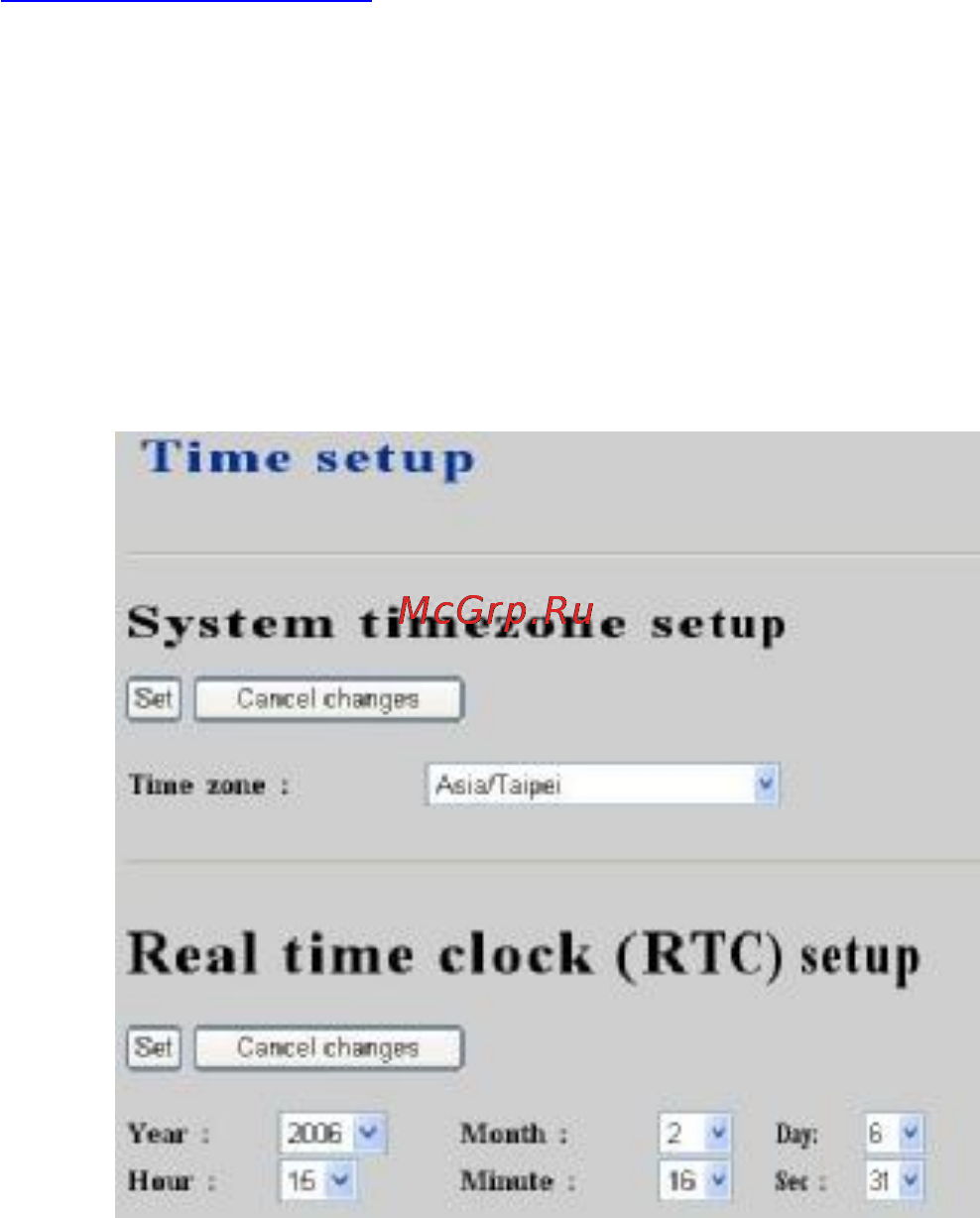

2.1 Time setup

The Time Setup page allows administrator to configure time zone and date for IP PBX. Select

System -> Time setup, current setting of time zone and date is displayed.

2.1.1 Time Zone Setup

Choose time zone in drop-down list, then click Set button.

2.1.2 Date Setup

Choose year, month, day, hour, minute, and sec in drop-down lists respectively, then click Set

button.

2.2 WAN setup

The WAN Setup page allows administrator to configure WAN network interface for IP PBX.

Select System -> WAN setup, current setting of WAN network interface is displayed, e.g. type,

IP address etc. Unless LAN only checkbox is checked, you can choose one of the three options

for your configuration, Static, DHCP, and PPPoE.
