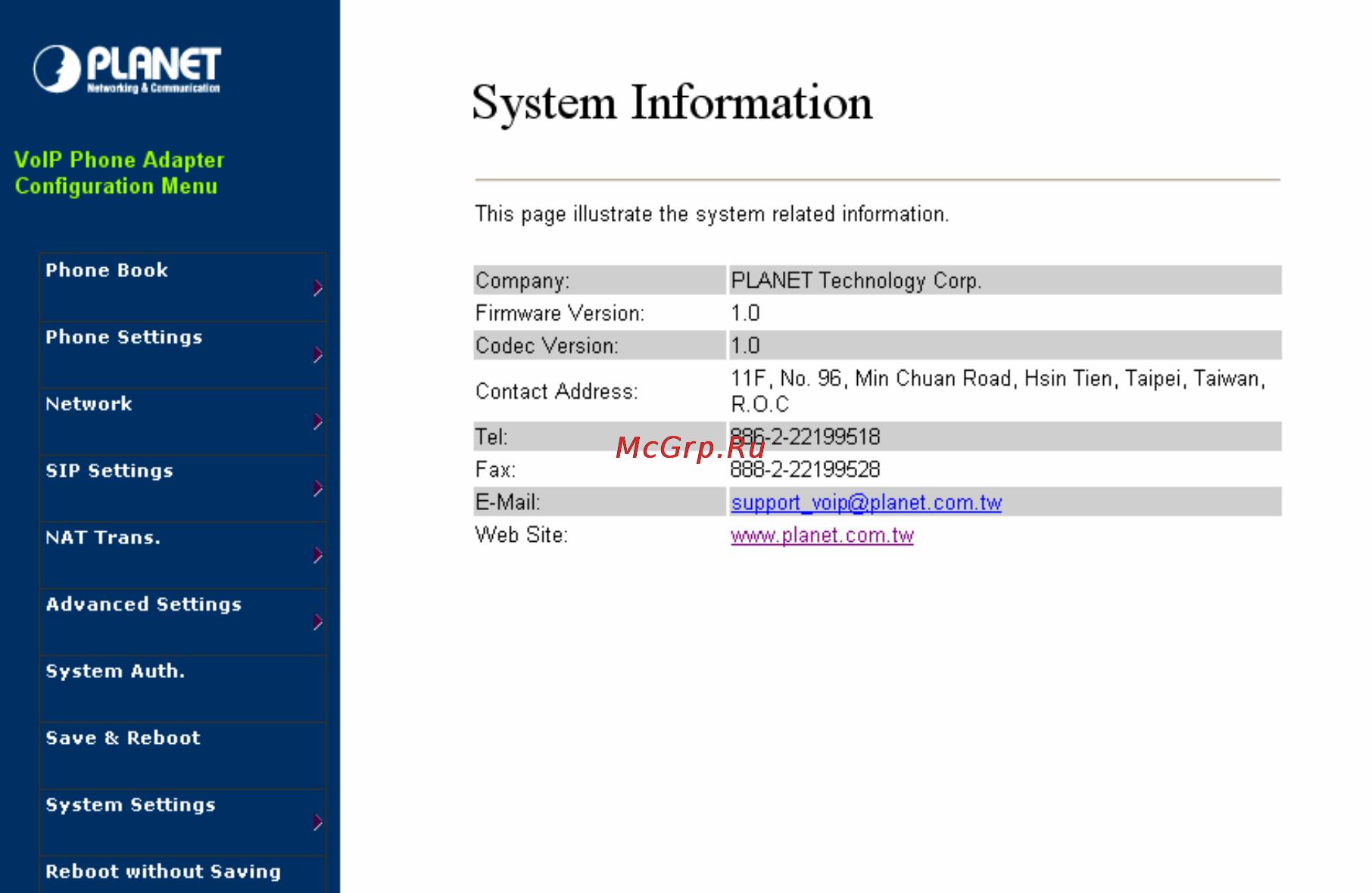

When users login the web page, users can see the Phone Adapter system information like firmware
version, company…etc in this main page.
VoIP Phone Adatper main page
19
