Device configurations on the ATA:

STEP 5:

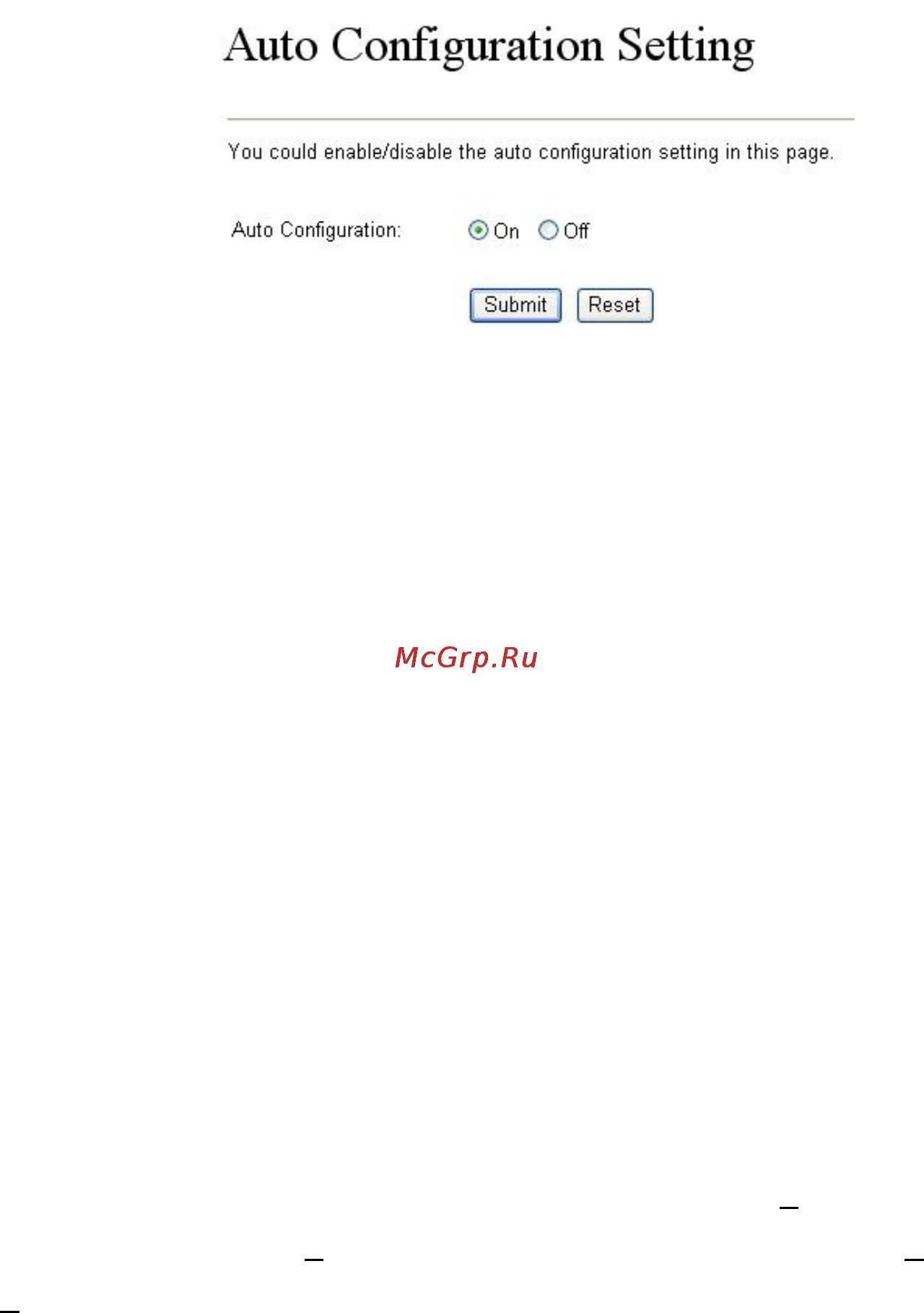

Please log in ATA via web browser, browse to the SIP setting menu and select the Domain

Service config menu. In the setting page, please browse to the Auto-config page, and

enable the Auto Configuration features for IP PBX system. (Your may connect telephone set

to ATA, press #136 to enable the Auto configuration, or press #137 to disable the Auto

Configuration setting.)

STEP 6:

After enabling the auto-config feature, the ATA shall be able to obtain IP address and SIP

extension information from IP PBX system IPX-2000 information. To verify the auto-config

results, you may connect telephone set to ATA; press #120# to check if the IP address is

obtained from IPX-2000. And #122# can be used to verify the extension number assigned by

IPX-2000.

STEP 7:

Repeat the same configuration steps on ATA B, and check if the ATA B is successfully

registered with the IPX-2000 as one of the IP extensions.

Test the scenario:

To verify the VoIP communication, please:

1. Pick up the telephone

2. [VIP-157 only] Press the “*” key to switch to IP phone mode

3. Dial the destination number to make calls. For example, ATA

A (with number 1001) dial the keypad

with number 1002 (ATA

B) or reversely make calls from SIP client (ATA B) to the number 1001 (ATA
