Planet VIP-157S [26/41] Port settings
![Planet VIP-157S [26/41] Port settings](/views2/1071505/page26/bg1a.png)

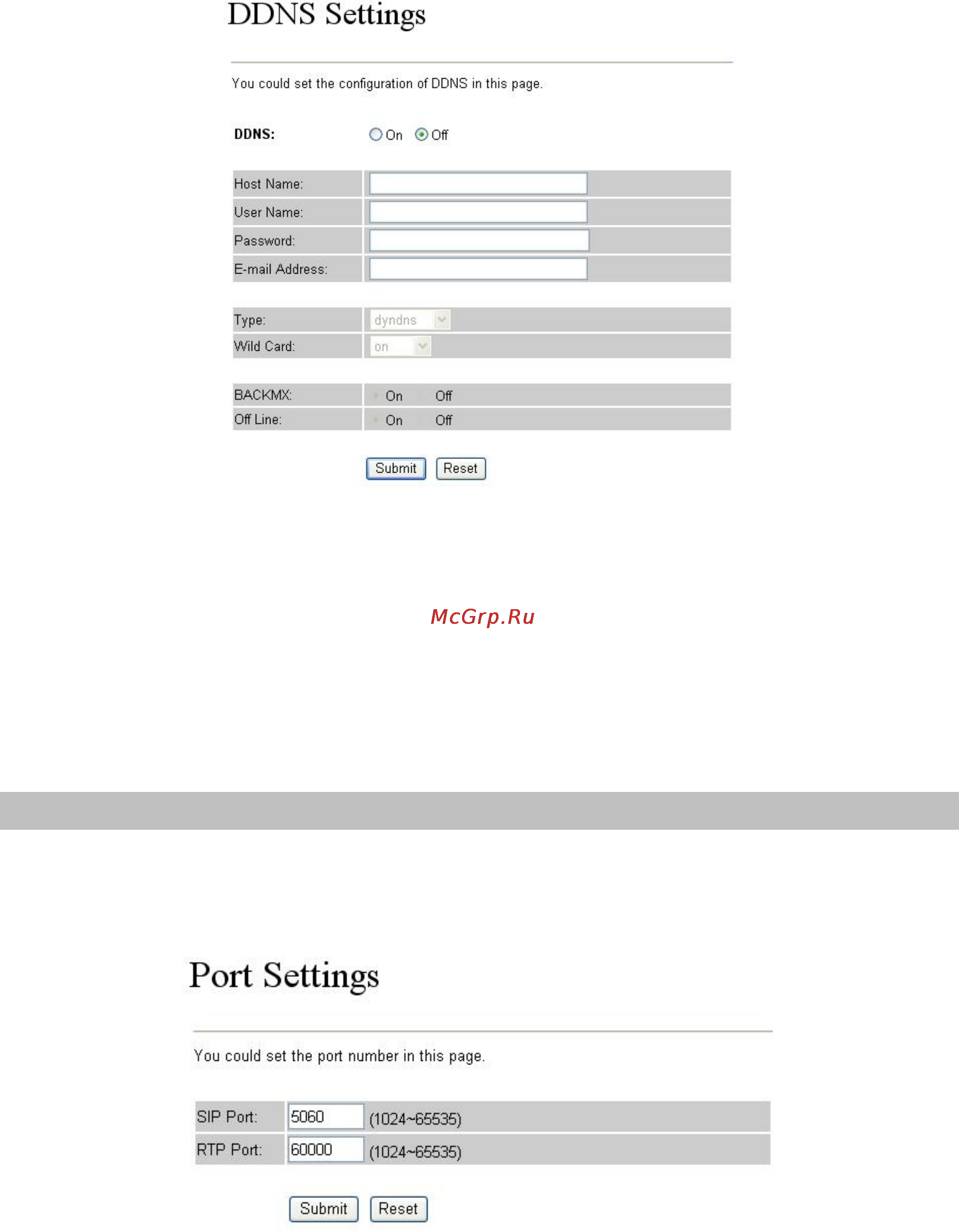

Port Settings
This page defines the SIP and RTP port number in this page. Each ISP provider will have different
SIP/RTPport setting, please refer to the ISP to setup the port number correctly. When you finished the
setting, please click the Submit button.
26
