Static IP
Key in the W-LAN IP address, W-LAN Subnet mask and W-LAN
Gateway from AP of WISP
DHCP Client
When the DHCP Client is enabled, the WIFI ATA will get the IP
Address from Outdoor AP of WISP.
PPPoE Client
Enter User Name / Password provided by your ISP, the WATA will
get the IP Address from Outdoor AP of WISP
Remote AP SSID
Define the same as your Wireless Router uses
Authentication Method
Define the same as your Wireless Router uses.(OPEN / SHARED
Mode)
Encryption Type
Define the same as your Wireless Router uses. (OPEN / SHARED
Mode)

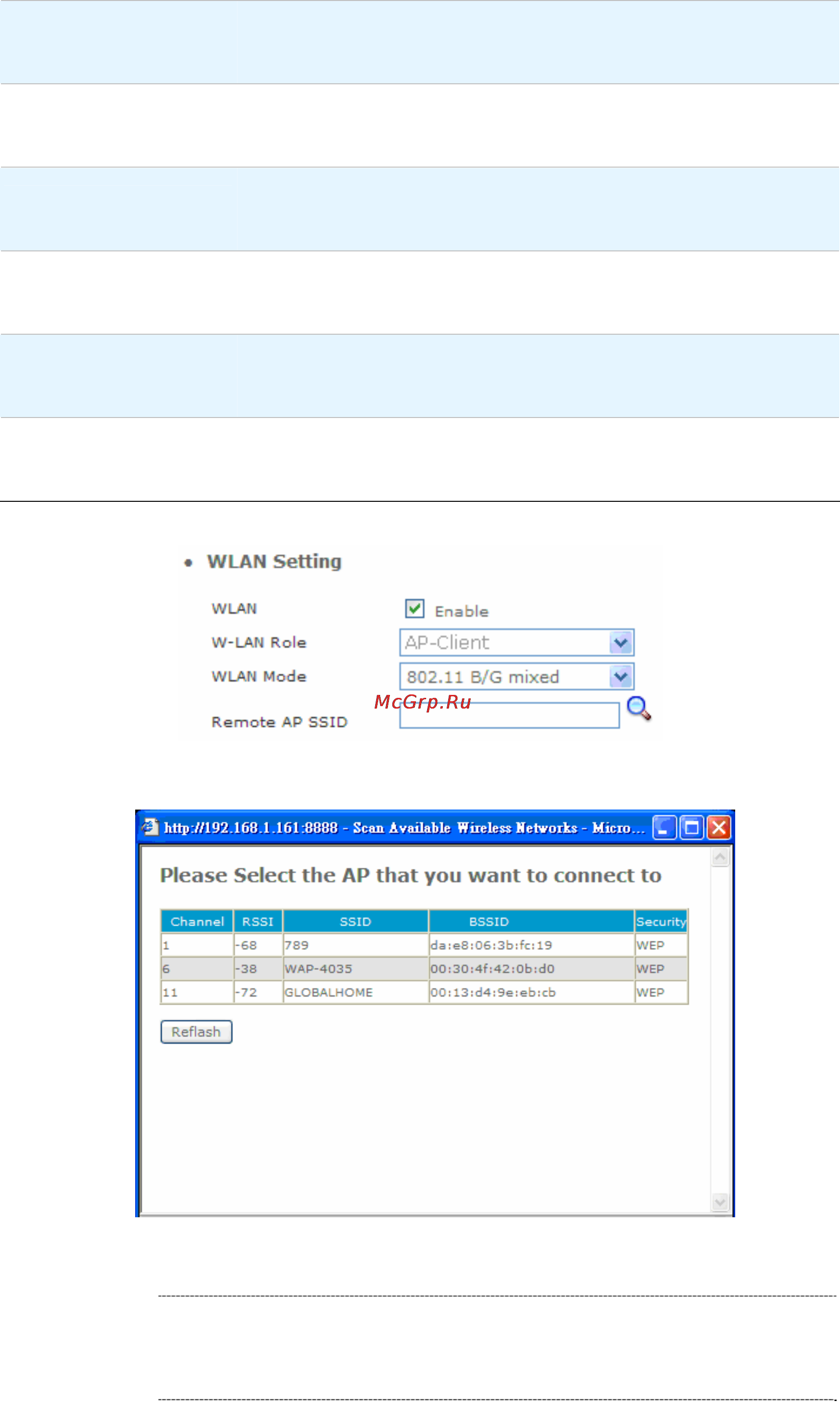

Scan usable network：Select list to remote AP SSID (magnifying glass)
Search remote AP list page.
ÍNote
After scan and select the Outdoor AP, the channel and
encryption method should be set the identical with the remote
AP.
