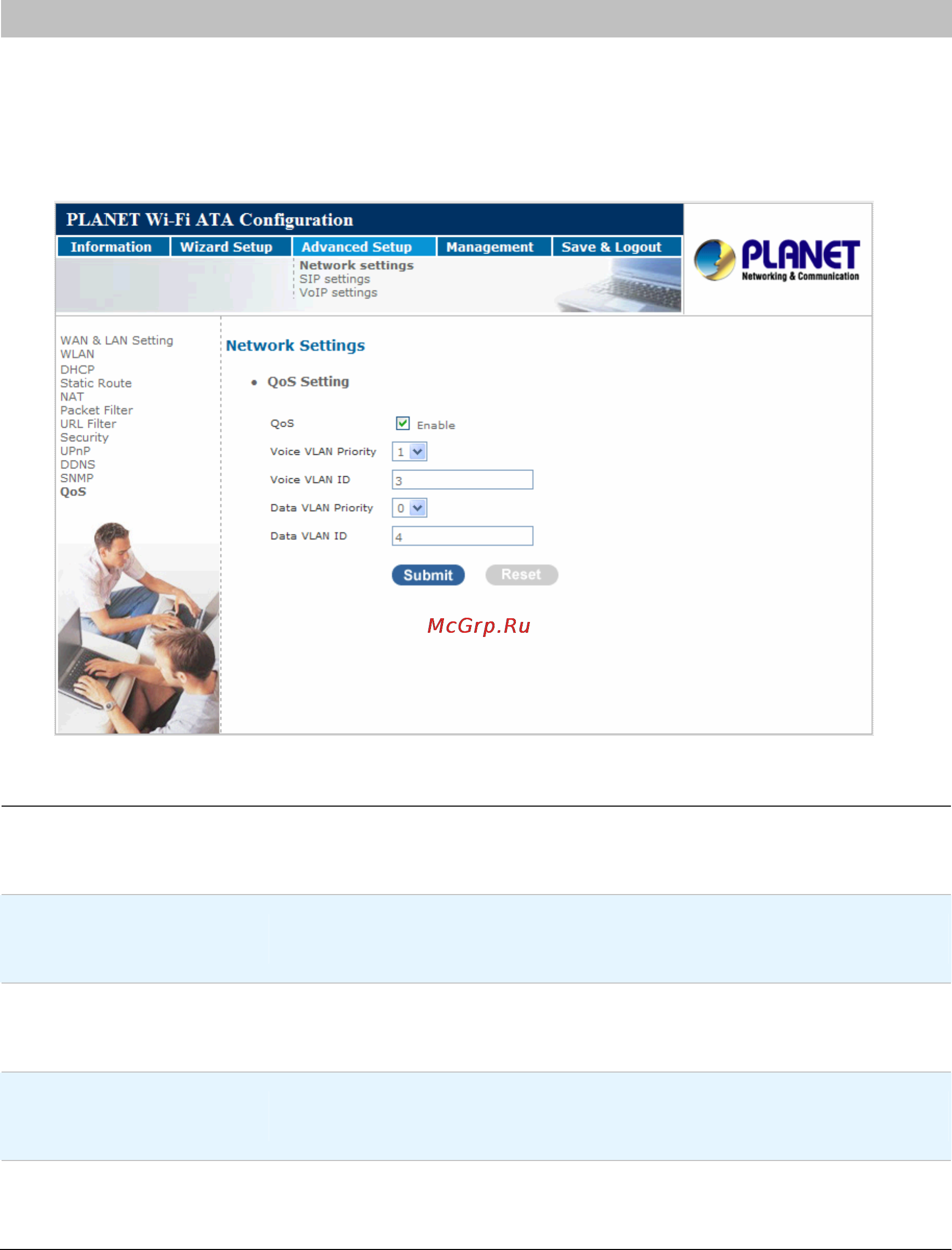

QoS (VLAN)
VLAN which stands for Virtual LAN is defined in the IEEE802.1q. It is a technology allowing a
company or an individual to extend their LAN over the WAN interface, breaching the physical limitations
of regular LANs.
Enable
Enable/Disable the QoS service, default setting is Disable
Voice VLAN Priority
Set voice VLAN Priority 0 -7 ,Default is 1
Voice VLAN ID
Voice VLAN ID is entered as an integer , Default is 3 ,value between 0 and
4095
Data VLAN Priority
Set Data VLAN Priority 0 -7 ,Default is 0
Data VLAN ID
Data VLAN ID is entered as an integer , Default is 4 ,value between 0 and
4095
