Appendix A Voice Communication Samples

There are several ways to make calls to desired destination in WATA. In this section, we’ll lead you step

by step to establish your first voice communication via web browsers operations.

• WATA to WATA connection via IP address (Peer-to-Peer mode)

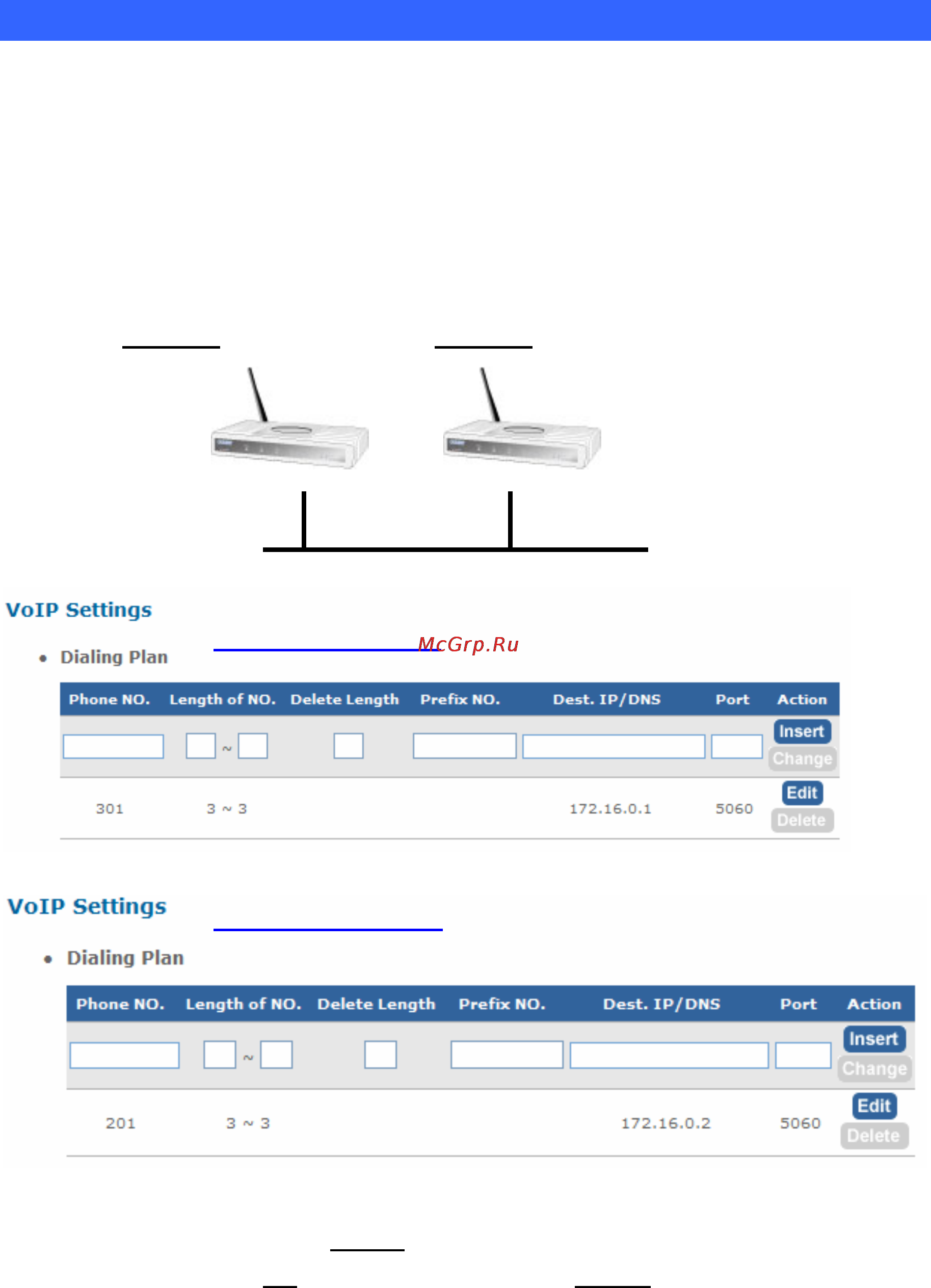

Assume there are two WATAs in the network the IP address are 172.16.0.1, 172.16.0.2

Analog telephone sets are connected to the phone (RJ-11) port of WATAs respectively

WATA A. 172.16.0.2 WATA B. 172.16.0.1

201 301

WATA A : 172.16.0.2

WATA B : 172.16.0.1

Operation steps:

Pick up the telephone on WATA A

Press the keypad 301

shall be able to connect to the WATA B.
