Planet VIP-161W [61/72] Line status

Line Status

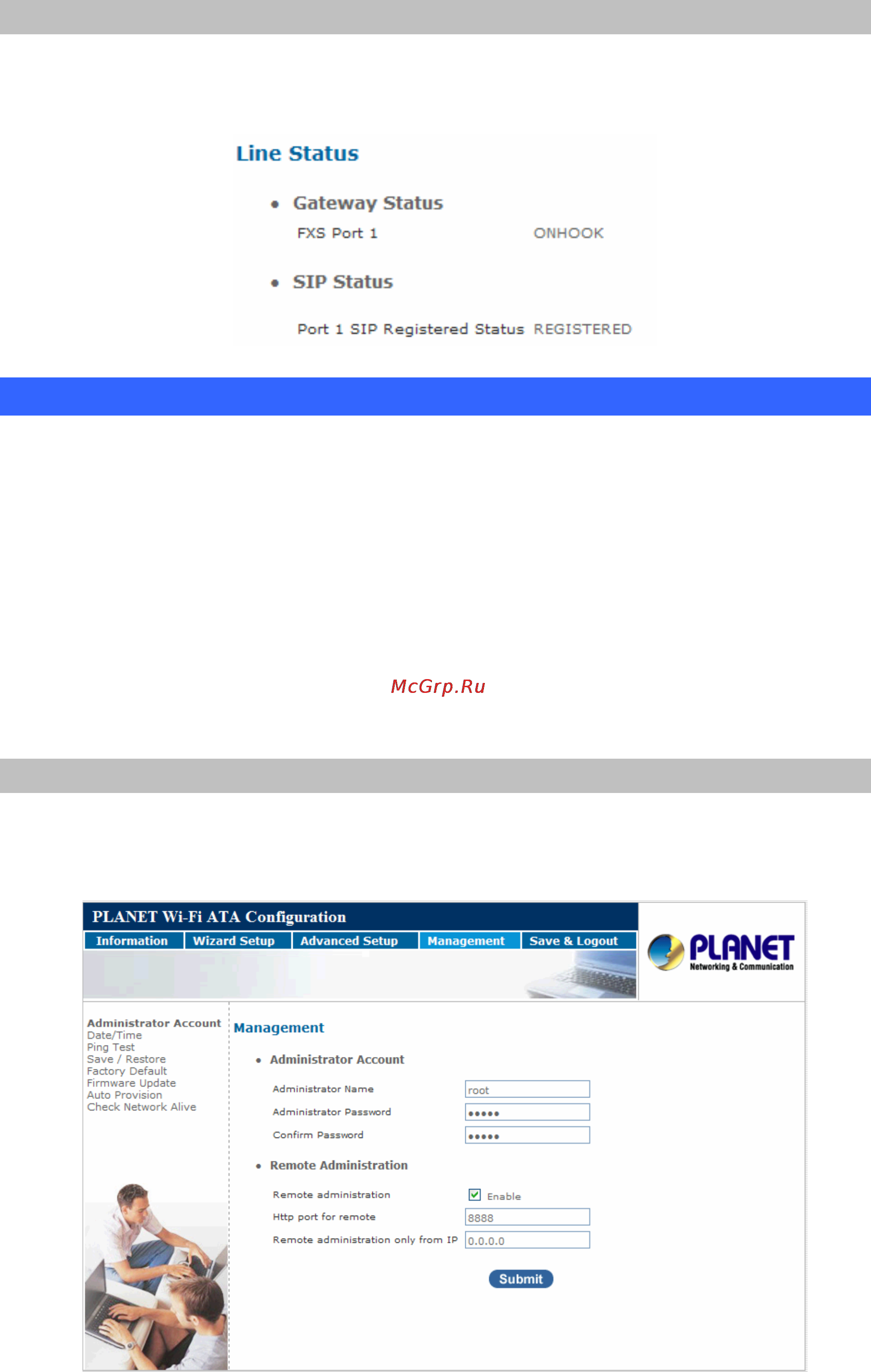

This window displays the FXS ports and SIP registered status. Click on Refresh button to retrieve the

status.

Management

• Administrator Account

• Date/Time

• PING Test

• Save/Restore

• Factory Default

• Firmware Update

• Auto Provision

• Check Network Alive

• Device

Administrator Account

The administrator account can access the management interface through the web browser. Only the

administrator account has the ability to change account password.
