G11226140

1. Front panel controllers and indicators

1. HDD activity LED

2. Lan activity LED

3. Lan activity LED

4. Fan fails LED

5. Overheating LED

6. Alert Mute button

7. Reset button

8. Power button

9. USB 3.0 Port

3. Installing power supply

2. Top cover opening

4. Installing motherboard

5. Installing fan

B. For Extended Mini-ITX

Cage A

Cage B

Top slot for 3.5” drives

Bottom slot for 2.5” drives

For two 2.5” drives

7. Installing hard drive

1. Remove the plastic tray

1. Remove drive cage A and B from chassis 1. Remove drive cage A, B and C from chassis

3. Install cages back into the chassis 3. Install cages back into the chassis

2-1. Install drive into cage A 2-1. Install drives into cage C

2-2. Install drive into cage B 2-2. Install drives into cage B

2. Secure HDD tray with four screws

and slide-in the HDD tray

3. Installation complete

6. Installing internal hard drive

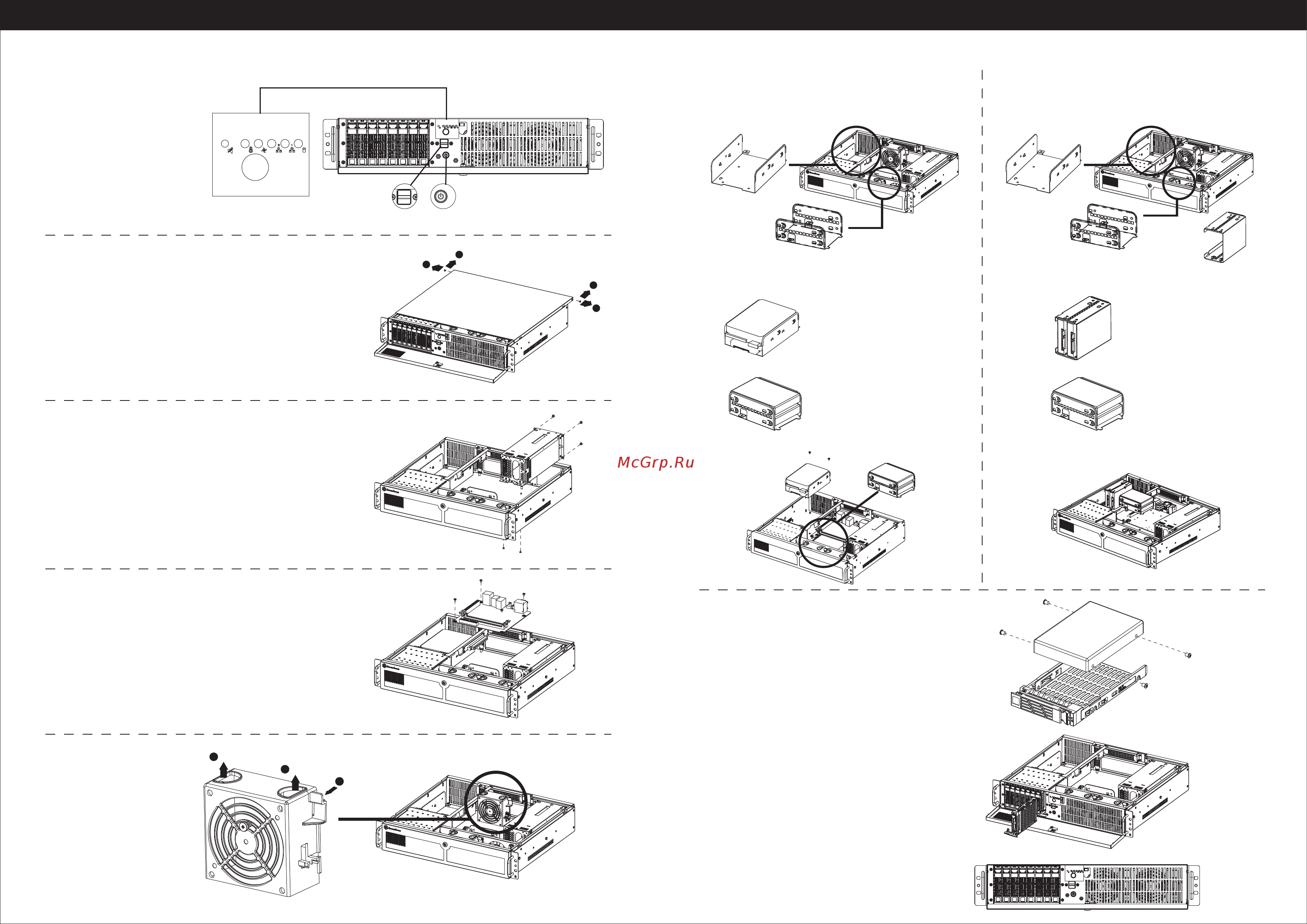

RM208-MINI QUICK INSTALLATION GUIDE 2U 8-bays 2.5” hot-swap rackmount storage server chassis

Press

Pull

A. For Mini-ITX

123456

Cage A

Cage B

Cage C
