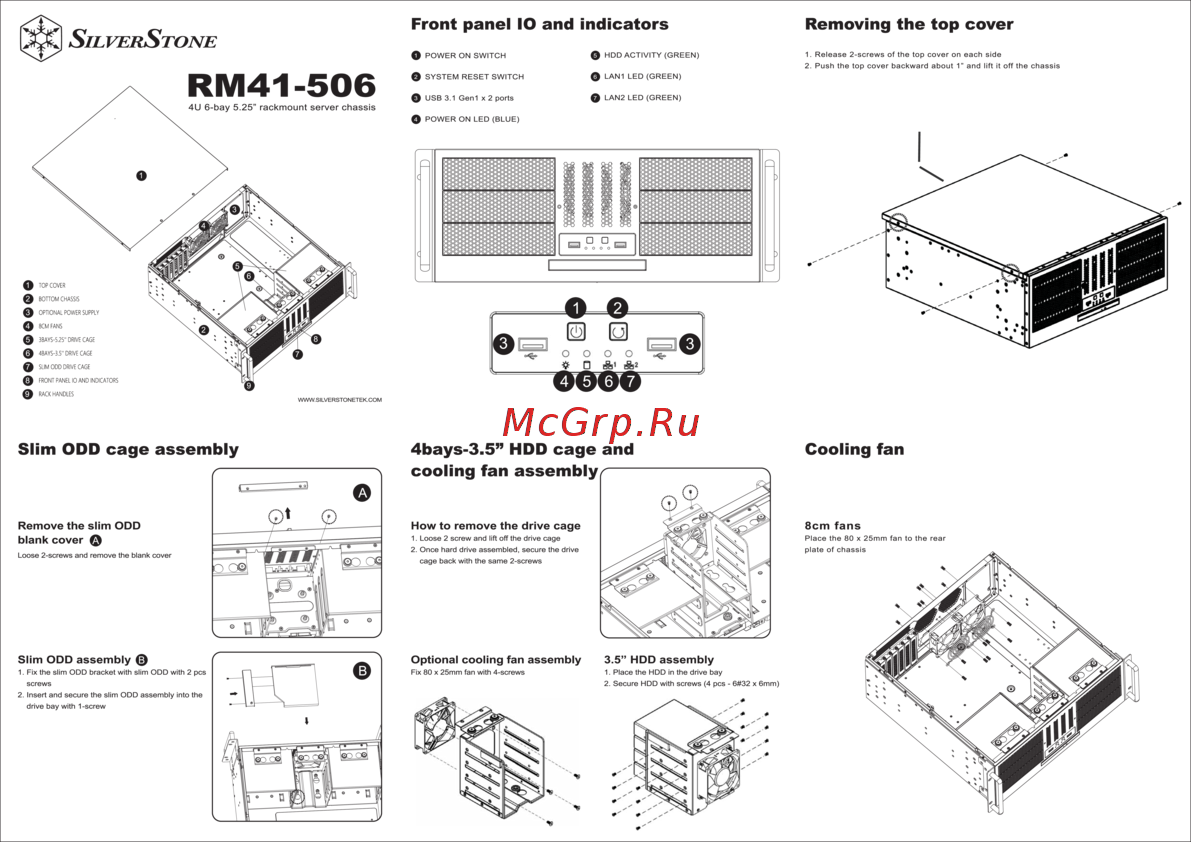

Front panel IO and indicators SILVERSTONE O POWER ON SWITCH Q HDD ACTIVITY GREEN Removing the top cover 1 Release 2 screws of the top cover on each side 2 Push the top cover backward about 1 and lift it off the chassis RM41 506 O SYSTEM RESET SWITCH Q LAN1 LED GREEN O USB 3 1 Genl x 2 ports Q LAN2 LED GREEN 4U 6 bay 5 25 rackmount server chassis Q POWER ON LED BLUE I OH COVER BOTTOM CHASSIS OPTIONAL POWER SUPPLY 8CM FANS 3BAYS 5 25 DRIVE CAGE 4BAYS 3 5 DRIVE CAGE SLIM ODD DRIVE CAGE FRONT PANEL IO AMD INDICATORS RACK HANDLES WWW SILVERSTONETEK COM Slim ODD cage assembly 4bays 3 5 HDD cage and cooling fan assemblyr Cooling fan Remove the slim ODD blank cover 0 How to remove the drive cage 8cm fans 1 Loose 2 screw and lift off the drive cage Place the 80 x 25mm fan to the rear Loose 2 screws and remove the blank cover 2 Once hard drive assembled secure the drive cage back with the same 2 screws Slim ODD assembly Optional cooling fan assembly 1 Fix the slim ODD bracket with slim ODD with 2 pcs Fix 80 x 25mm fan with 4 screws screws 2 Insert and secure the slim ODD assembly into the drive bay with 1 screw 3 5 HDD assembly 1 Place the HDD in the drive bay 2 Secure HDD with screws 4 pcs 6 32 x 6mm
