1. Requirements
l DSL or Cable modem for broadband Internet access.
l Network cables. Use standard 10/100/1000Base-T network (UTP) cables with
RJ45 connectors.
l TCP/IP network protocol installed on each PC.
2. Before Startup
2.1 Physical Installation

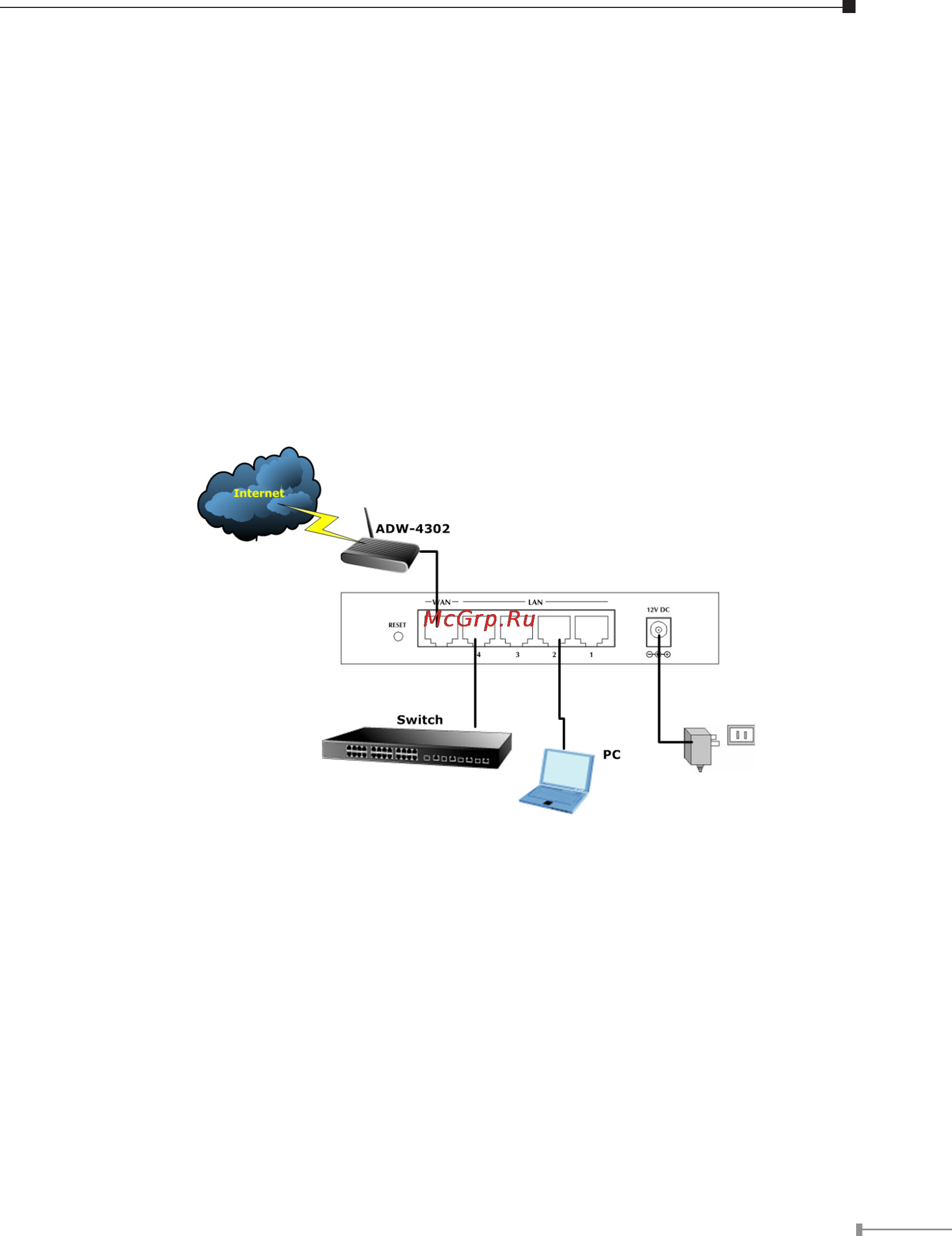

Setupyournetworkasshowninthesetupdiagrambelow
1.Use standard LAN cables to connect PCs to the Switching Hub ports on the
XRT-501, or you can directly connect PCs to XRT-501, you may use 10Base-T,
100Base-TX, or 1000Base-T connections, and all connection types can be used
simultaneously.
2.If required, connect any port to a normal port on another Hub, using a stan
-
dard LAN cable. Any LAN port on the XRT-501 will automatically function as an
“Uplink” port when required.
3. Connect the DSL or Cable modem to the WAN port on the XRT-501. Use the
cable supplied with your DSL/Cable modem. If no cable was supplied, use a
standard cable.
4. Connect the supplied Power Adapter and power on.
5. Check the LEDs
