Streacom DA2 Performance Acrylic Panel Kit [3/4] Page 3

Fitting Inner Panel and Fan

The panels are installed by reversing the removal procedure. Start with the inner panel and

ensure that one edge is in the frame track then carefully bend the panel until the other side

can be placed into the opposing frame track.

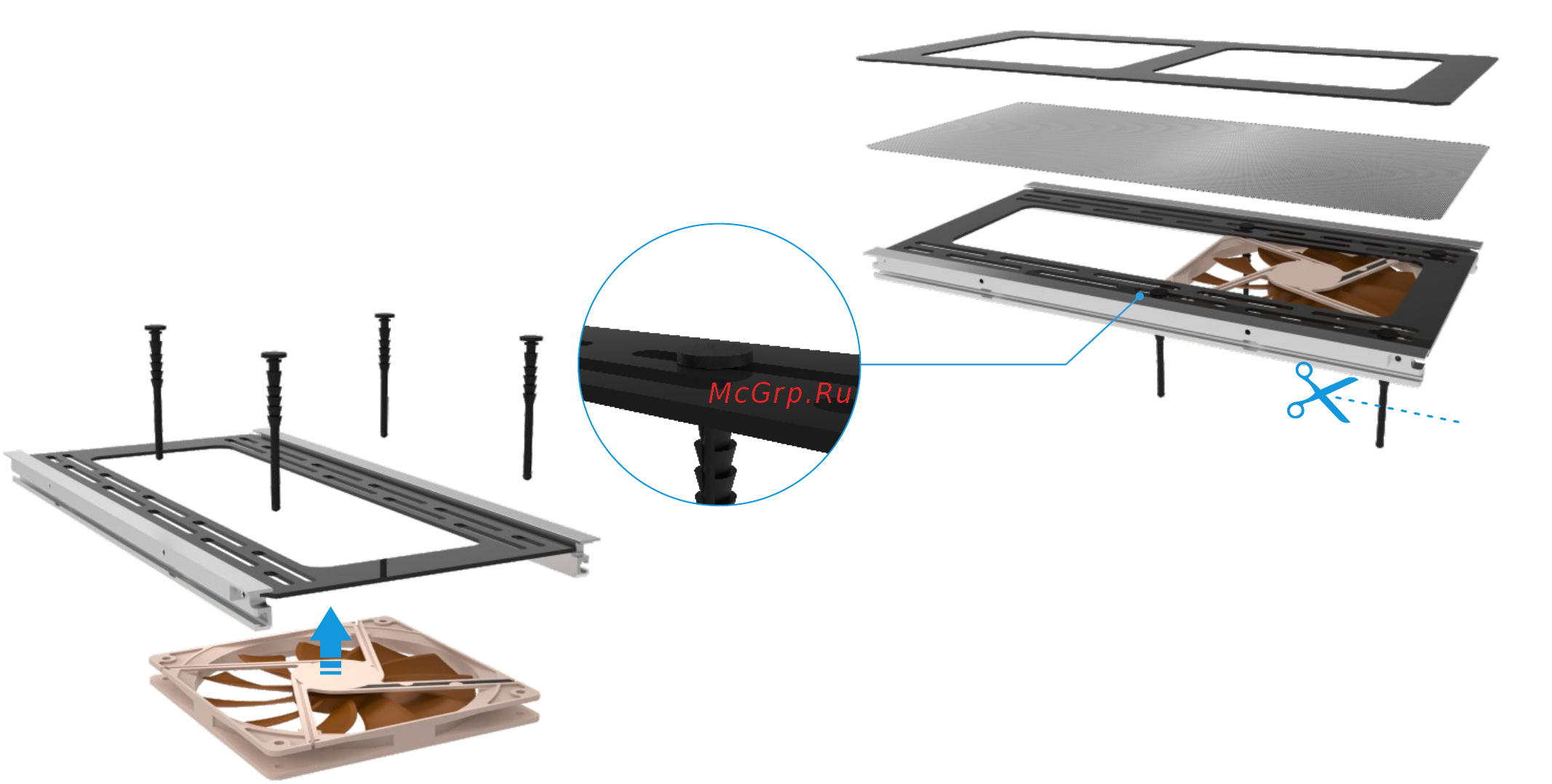

Fans should be installed prior to the NET or outer panel and should be fitted using the

supplies silicon fan mounts. These are used by placing them though the appropriate slots in

the panel, then pulling them through the mounting holes in the fan.

Completing Installation

Place the NET onto the inner panel then fit the outer panel to the frame by carefully bending

it into the frame track.

The silicon fan mounts are longer than required in order to make installation easier, but

once you have tested the configuration, they can be cut so that they no longer protrude into

the case.

The same procedure is applicable to the upper and lower panels of the case. Installation

diagrams are shown without the rest of the case for the purpose of clarify.
