2. Overview
Front Panel

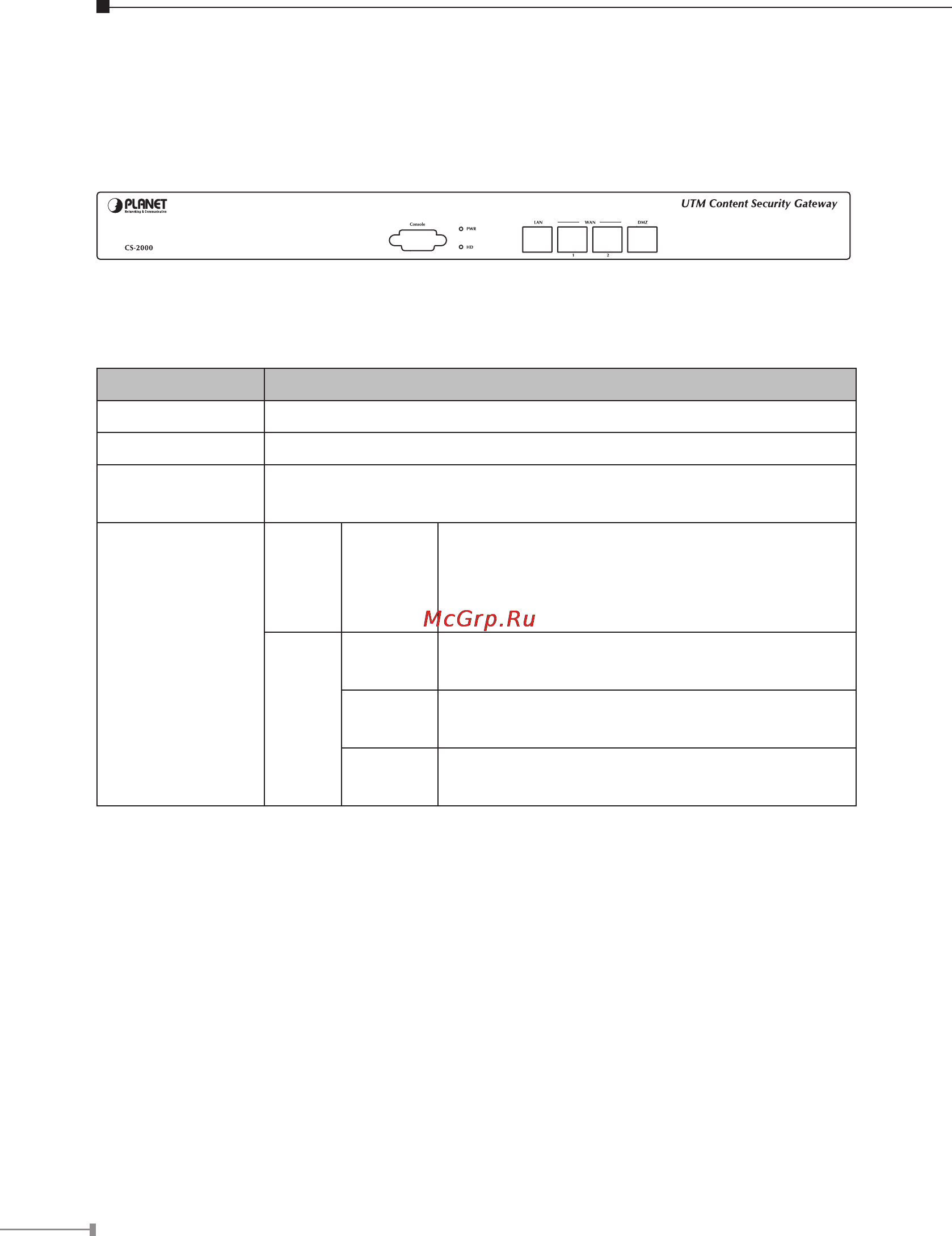

The front panel of CS-2000 is shown as below.
Console
PWR HD
LAN WAN1 WAN2 DMZ
CS-2000
LED Denition
LED / Port Description
PWR Power is supplied to this device.
HD Blinks to indicate this devise is being to access the Hard Disk.
Console
(9600, 8, N, 1)
Connect this serial port for checking network interface setting
and can reset to factory setting.
WAN1
WAN2
LAN
DMZ
LED1 Orange
Steady on indicates the port is connected
to other network device.
Blink to indicates there is trafc on the
port
LED2
Orange
Steady on indicates the port is connected
at 1000Mbps speed
Green
Steady on indicates the port is connected
at 100Mbps speed
Off
The LED off to indicate the port is
connected at 10Mbps speed
