1

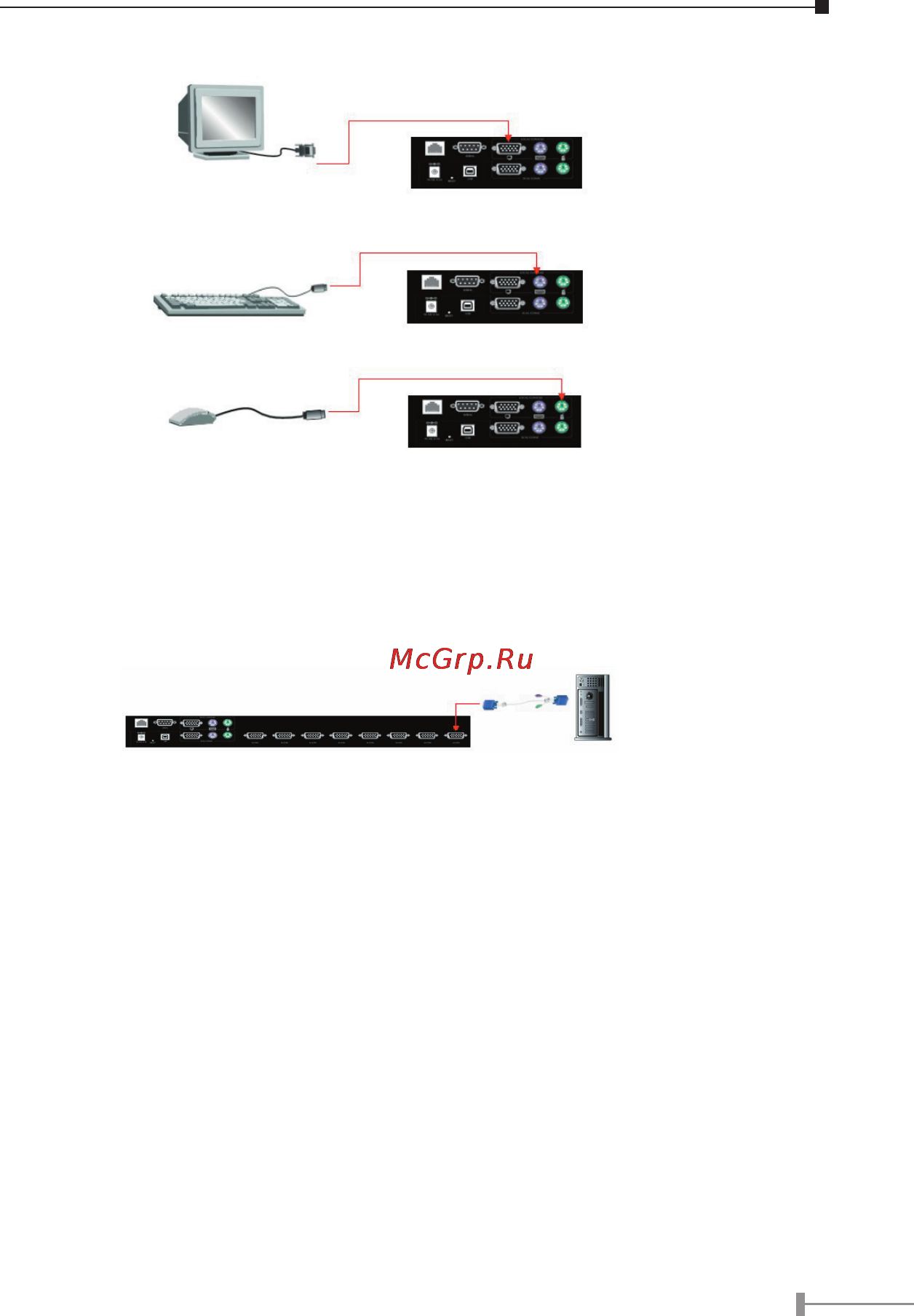

2. Connect a monitor to the VGA connector in LOCAL CONSOLE side.
3. Connect a keyboard to the purple PS/2 connector in LOCAL CONSOLE side.
4. Connect a mouse to the green PS/2 connector in LOCAL CONSOLE side.
5. Use 3-to-1 cable to connect IKVM-8000 and PCs. On one end, it has just one
HDDB 15-pin male connector. Please plug it into the computer port on the rear
of IKVM-8000. The other end has three connectors (male type HDDB 15-pin
for PC video, male type Mini Din 6-pin for keyboard and male type Mini Din 6-
pin for mouse). Please plug these three connectors into the respective ports of
computer. If there are multiple PCs, please repeat the same produce to connect
them all.
Now, you have finished the hardware installation of IKVM-8000.
Initial Configuration
By default, the IKVM-8000 will obtain its IP address from a DHCP server in the network. If
a DHCP server is found, it may provide a valid IP address, gateway address and net mask.
Before you connect IKVM-8000 to your local network, please make sure the corresponding
configuration of your DHCP server is completed. It is recommended to reserve a fixed IP
assignment to the MAC address of the IKVM-8000. You can find the MAC address labeled
on the bottom side of the metal housing.
If this initial configuration does not meet your local requirements, use the setup tool to
adjust the values to your needs. The setup tool can be found on the CD-ROM delivered
with this package. You can follow the procedure described below.
1. Connect the IKVM-8000 to the same network as your administrative PC, or
you can use an USB cable (type A to type B) to connect administrative PC and
IKVM-8000 directly. The USB connectivity only supported in windows 2000/XP/
server 2003 and the response time of USB connection would be longer than
LAN connection.
