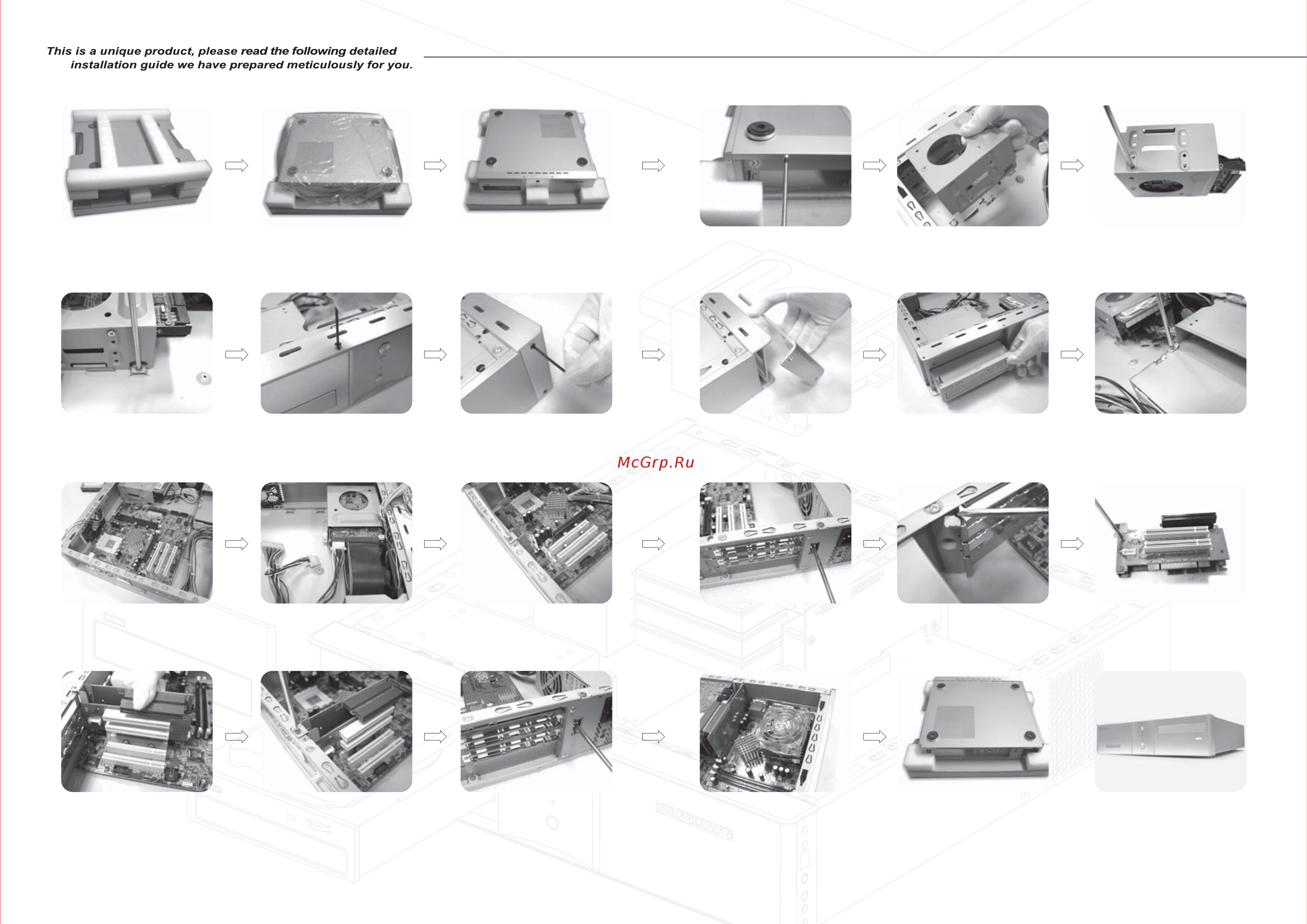

1. Remove LC11 from the carton 2. Remove bottom cushion and plastic bag
from the case (do not peel off the protective
film on top of the case)
3. Rest case on the top cushion with the
bottom of the case facing up
4. Remove two lower screws to slide the
bottom cover off the case
5. Unscrew screws securing the 3.5" drive
bracket to remove it from the case
6. Use #6-32 X 6 screw for securing hard drive
in the 3.5"drive bracket as shown (up to two
hard drives can be installed)
7. Re-insert drive bracket back into the case
and secure with screws
8. Use included hex wrench to remove the
screw located near the optical drive bracket
as shown
9. Use hex wrench to remove two screws
located on the right side of the case as
shown
10. Carefully remove aluminum front panel
located in front of the optical drive
11. Slide optical drive into the drive bracket
as shown
12. Secure optical drive with M3 screws (an
additional 3.5" hard drive can be installed
in the slot beneath the optical drive)
13. Install Micro-ATX motherboard into the case 14. Connect all required cables and connectors
to installed drives
16. Remove screw from expansion slot fastener
as shown
17. Swing fastener into open position to
release expansion slot covers
18. Assemble AGP riser card, PCI riser card,
and riser card bracket into one module as
shown
19. Insert completed riser card module into
the motherboard
20. Secure riser card module with screw
removed from step 15
21. Install AGP/PCI cards and secure them
with expansion slot fastener re-attached
to the back of the case
22. Take great care when installing an
appropriate CPU cooler, the height of the
cooler cannot exceed 75mm
23. After all required wires are connected,
re-install the bottom case cover back onto
the case
24. Turn case over on its feet and peel off the
protective film to complete installation
