From front panel From VFD/IR module

From ATX adapter

From VFD/IR module

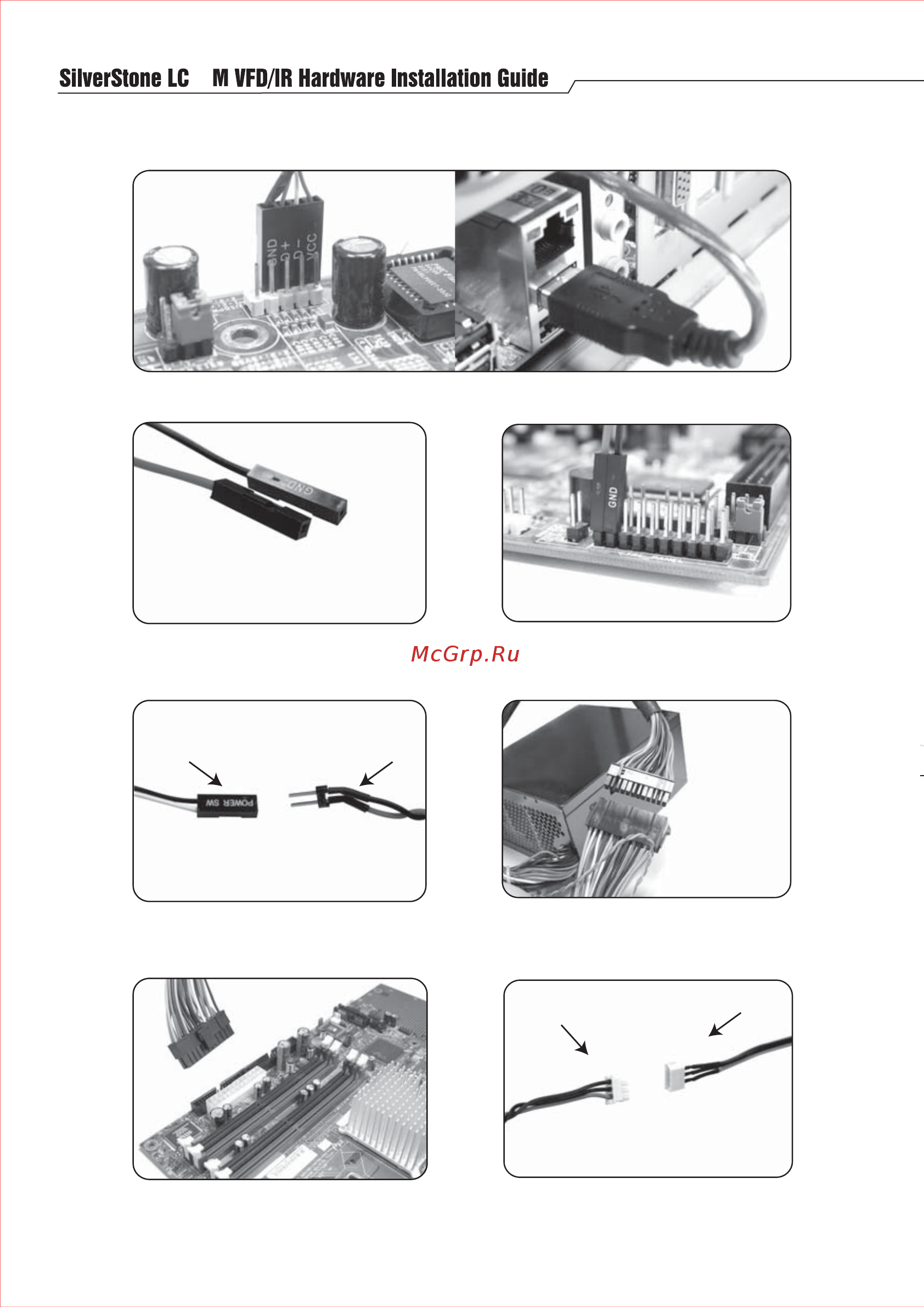

Finally, connect the 3 pin power connector from

the VFD/IR module to the ATX adapter's 3pin cable

Connect the other end of the ATX adapter to your

motherboard. It is compatible with 24pin or 20pin

motherboards.

Connect the included ATX adapter to your power

supply's ATX connector.

Refer to your motherboard manual and connect

the two wire leads to "power switch" or "power

button" on the motherboard's front panel pin

headers

From the front panel VFD/IR module, locate two

female single wire leads colored in black and red.

The black wire should have the connector labeled,

"GND"

Insert the 4 pin USB connector from the VFD/IR module to your motherboard USB pin header. You can also

use the included USB adapter to connect to an external USB port header on the motherboard

Connect your power switch connector from the front

panel to the dual pin header from the VFD/IR module
