Physical Installation

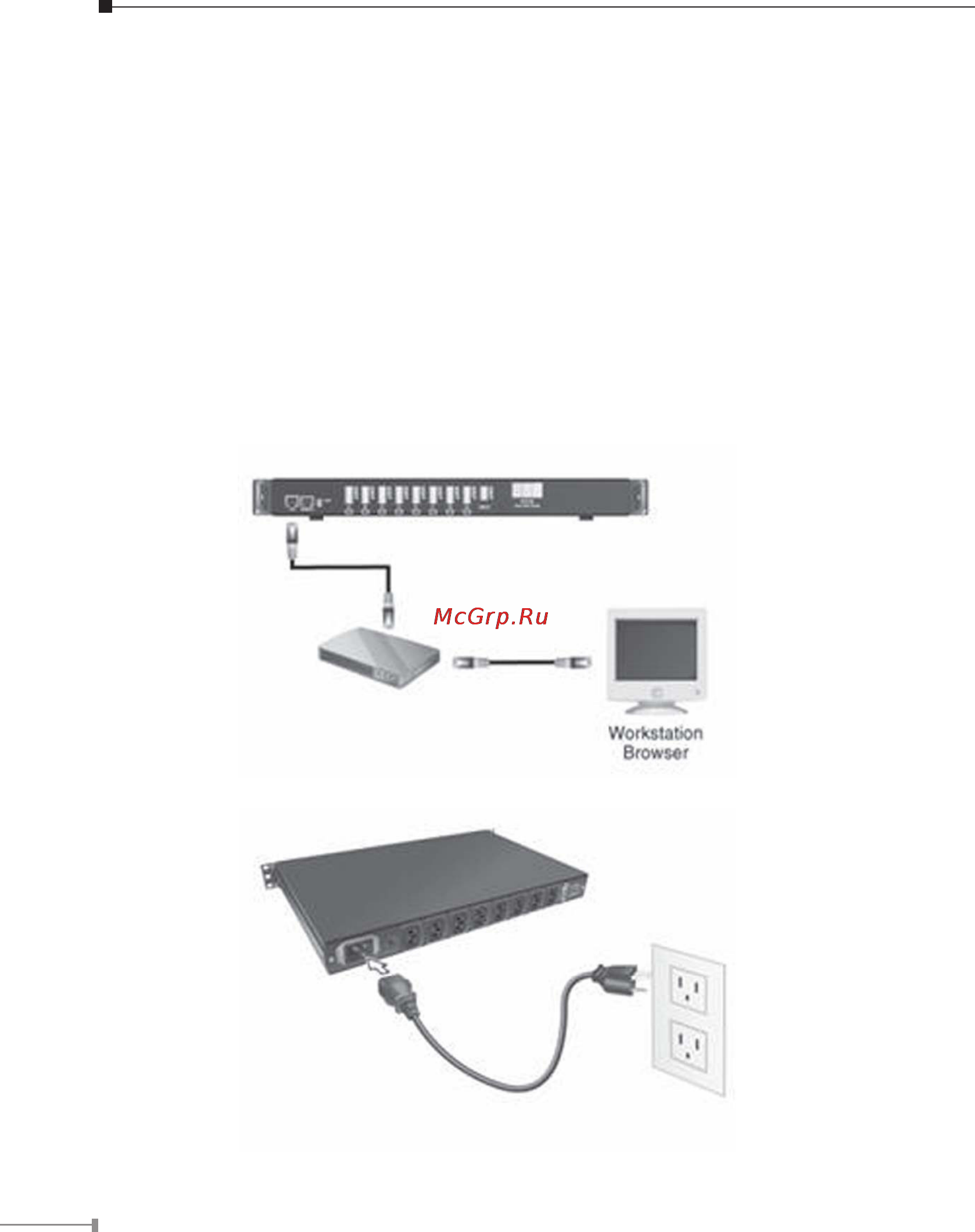

Connect IPM-8001/8002 to your hub/switch. And also connect a PC which is CD-

ROM ready to the same hub/switch.

Connect the power cord to the power inlet and plug the other end into a power

outlet as shown:

If you have seen the 7-Segment LED shows “E16”. That is mean the power

phase of your power outlet is reverse. Please try to make the power phase

exactly. Or you can refer to our manual to disable the power phase protection on

IPM8001/8002 temporally.
