PCI Gigabit Ethernet Adapter

Quick Installation Guide

Version 1.0

Thank you for purchasing PLANET PCI Gigabit Ethernet

adapter. It is a 10/100/1000Mbps Ethernet adapter for

PCI local bus-compliant PCs. Supports bus mastering

architecture and Auto-Negotiation for 10/100/1000Mbps

Ethernet connection. Provides a highly cost-effective

solution to upgrading to the Gigabit network with your

existing Ethernet infrastructures.

1. Package Content

PCI Gigabit Ethernet Adapter x 1

Quick Installation Guide x 1

CD Disk x 1

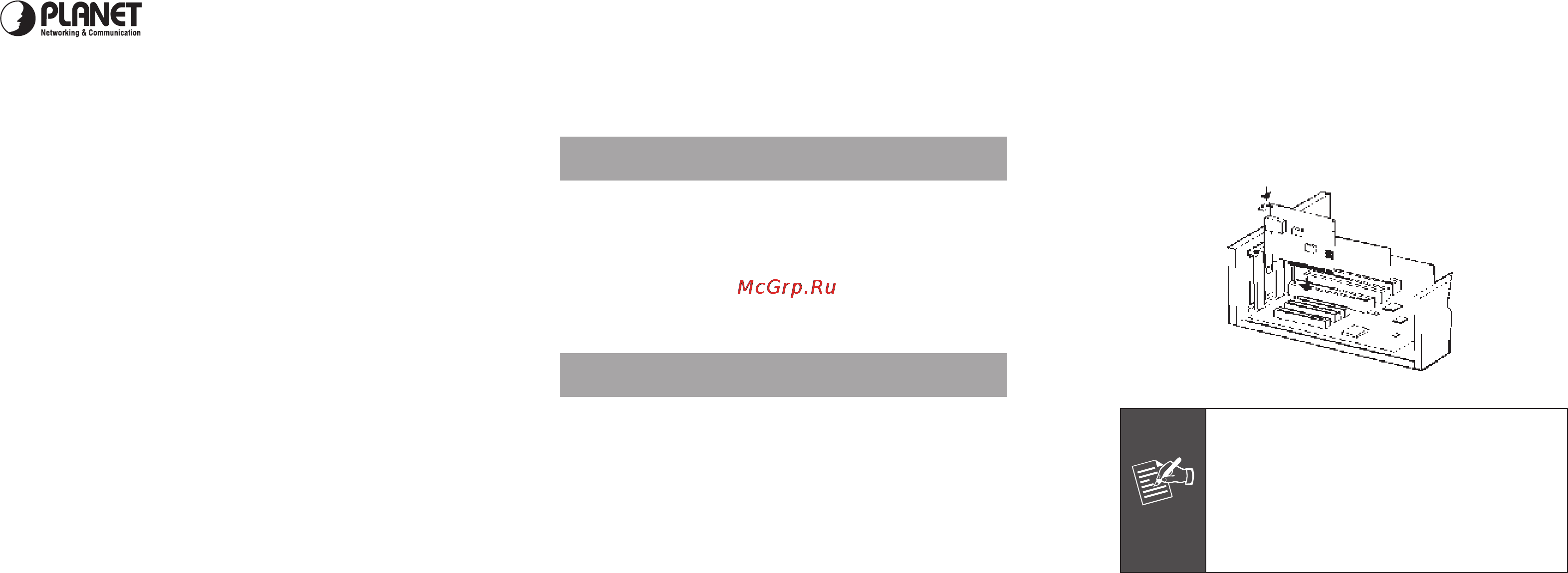

2. Hardware Installation

Step 1: Turn off the power of the PC.

Step 2: Remove any metal decorations from your

hands and wrists.

Step 3: Remove the cover from your PC.

Step 4: Locate an empty, non-shared bus mastering

PCI slot and remove the corresponding back

plate. Save the screw for use in Step 6.

Step 5: Carefully insert the PCI Gigabit Ethernet

Adapter into the chosen slot and press rmly

with proper push to ensure it is fully seated in

the slot.

Step 6: Secure the PCI Gigabit Ethernet Adapter with

the screw you saved in step 4.

Step 7: Replace the PC cover.

Step 8: Power on your PC and refer to next section to

install driver.

Note

Please do not install the PCI Gigabit

Ethernet adapter in a shared PCI slot.

Avoid any PCI slot next to an ISA slot

because this is often a shared slot

and does not support bus mastering.

Please refer to the user’s manual of the

motherboard for the information.
