1. Package Content

Thank you for purchasing PLANET Layer 2 Managed

Industrial Switch, IGS-801M. Terms of “Managed

Industrial Switch” means the Switches mentioned titled

in the cover page of this Quick Installation Guide, i.e. IGS-

801M.

Open the box of the Managed Industrial Switch and

carefully unpack it. The box should contain the following

items:

● TheIGS-801MManagedIndustrialSwitchx1

● User’sManualCDx1

● QuickInstallationGuidex1

● Twowall-mountingbracketswithattachmentscrewsx1

If any item is found missing or damaged, please contact

your local reseller for replacement.

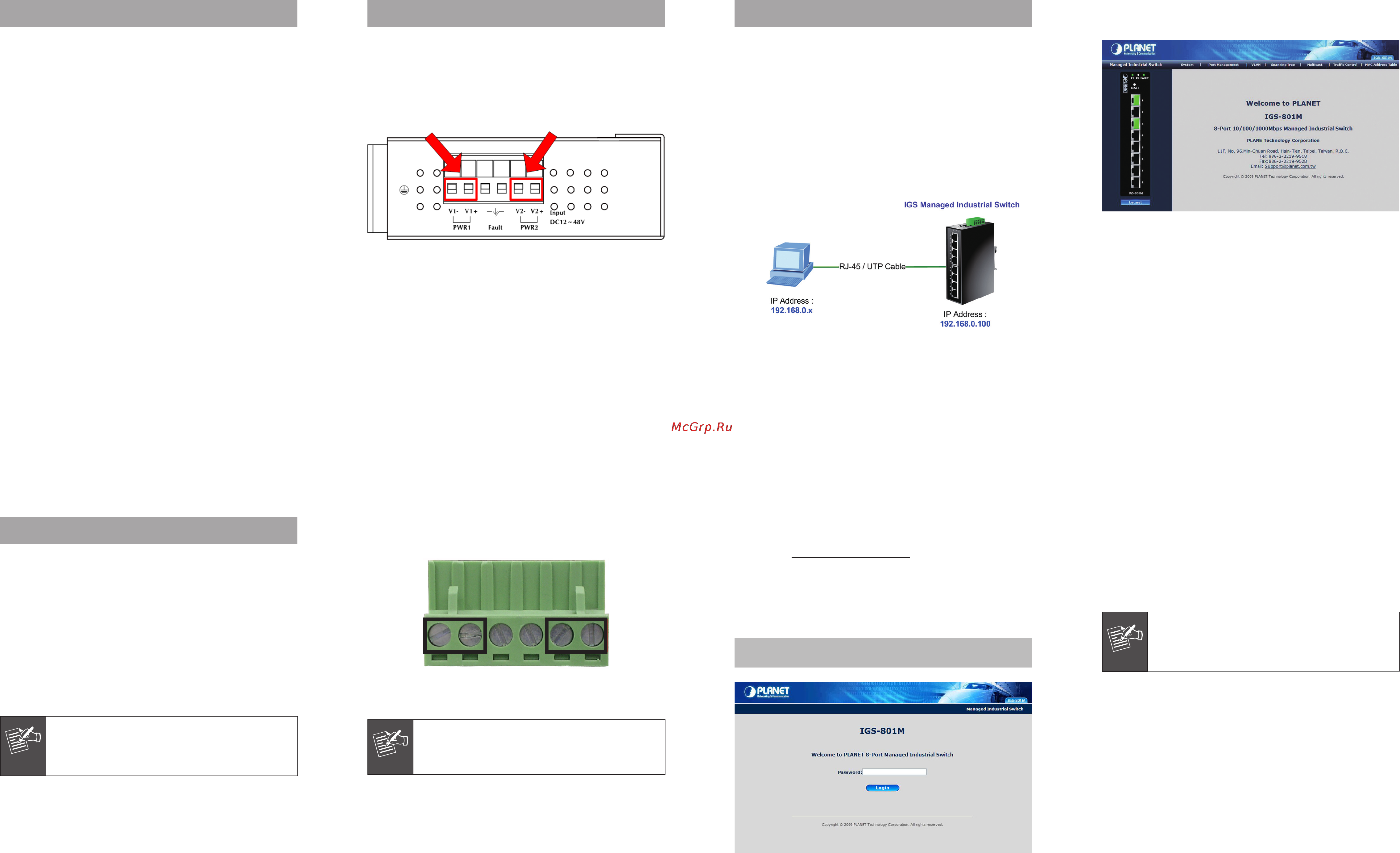

3. Wiring the Power Inputs

The 6-contact terminal block connector on the top panel of

IGS-801MisusedfortwoDCredundantpowerinput.Please

follow the steps below to insert the power wire.

1.Insert positive / negative DC power wires into the

contacts 1 and 2 for POWER 1, or 5 and 6 for POWER 2.

3. After entering the password, the main screen appears as

Figure 3-3.

Figure 3-3 Web Main Screen of IGS Managed Industrial Switch

4. Start Web Management

The following shows how to start up the Web Management

of the IGS Managed Industrial Switch. Note the Managed

Industrial Switch is congured through an Ethernet

connection,please make sure themanager PC must be set

on the same IP subnet address.

For example, the default IP address of the IGS Managed

Industrial Switch is 192.168.0.100, then the manager

PC should be set at 192.168.0.x (where x is a number

between 1 and 254, except 100), and the default subnet

mask is 255.255.255.0.

Figure 3-1 IP Management diagram

2. Requirements

● Workstations of subscribers running Windows 98/ME,

NT4.0, 2000/2003/XP, MAC OS9 or later, Linux, UNIX or

otherplatformcompatiblewithTCP/IPprotocols.

● WorkstationinstalledwithEthernetNIC(NetworkCard)

t Ethernet Port connect

t Network cables - Use standard network (UTP) cables

with RJ45 connectors

t Above PC installed with WEB Browser and JAVA

runtime environment Plug-in

Note

It is recommended to use Internet Explore

6.0 or above to access IGS-801M Managed

Industrial Switch.

2. Tighten the wire-clamp screws for preventing the wires

from loosing.

1 2 3 4 5 6

Power 1 Power 2

- + - +

Note

The wire gauge for the terminal block should be

in the range between 12 ~ 24 AWG.

1.UseInternetExplorer6.0oraboveWebbrowser,enterIP

address http://192.168.0.100 (the factory-default IP

address) to access the Web interface.

2. When the following dialog box appears, please enter the

default password “admin” (or the password you have

changed before). The login screen in Figure 3-2 appears.

DefaultIPaddress:

192.168.0.100

DefaultPassword:admin

Figure 3-2 Login screen

4. The Switch Menu on the top of the Web page let you

access all the functions and status the Managed Indus-

trial Switch provides.

Now, you can use the Web management interface to

continue the Switch management. Please refer to the user

manual for more.

Note

For security reason, please change and

memorize the new password after this first

setup.
