Planet ISW-501T [2/2] Mounting installation
![Planet ISW-501T [2/2] Mounting installation](/views2/1071796/page2/bg2.png)

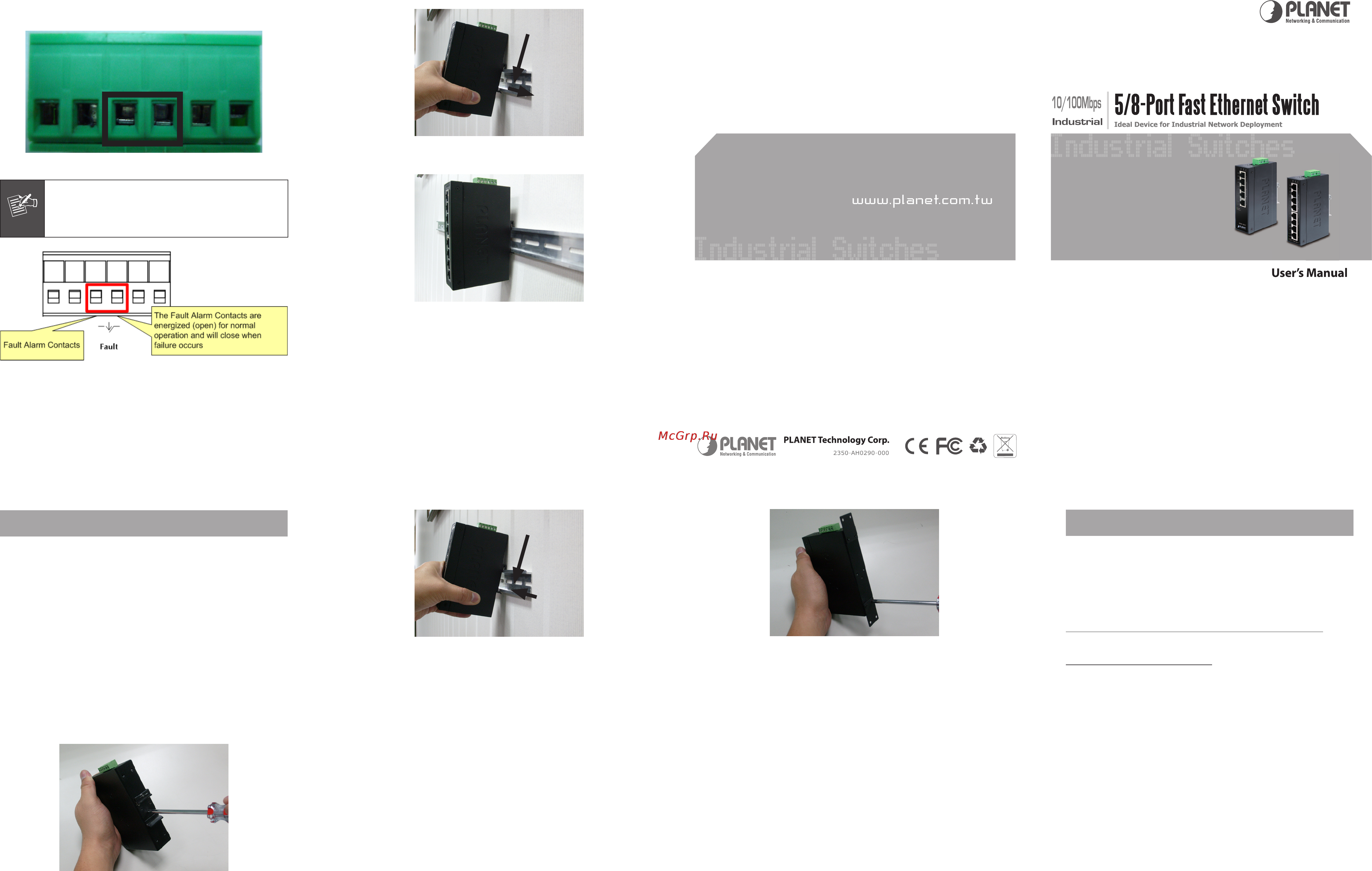

- 9 -
- 10 -
- 11 -
- 12 - - 13 - - 14 -
1 2 3 4 5 6
Insert the wires into the fault alarm contacts
Note
1. The wire gauge for the terminal block should
be in the range between 12 ~ 24 AWG.
2. Alarm relay circuit accepts up to 30V, max.
3A currents.
Step 2:LightlypressthebuttonofDIN-Railintothetrack.
Step 3: ChecktheDIN-Railistightlyonthetrack.
Step 4: Please refer to following procedures to remove the
Industrial Fast Ethernet Switch from the track.
6. Mounting Installation
This section describes how to install the Industrial Fast
Ethernet Switch and make connections to it. Please read
the following topics and perform the procedures in the order
being presented.
DIN-Rail Mounting
The DIN-Rail is screwed on the Industrial Fast Ethernet
Switch when out of factory. When need to replace the wall
mount application with DIN-Rail application on Industrial
Fast Ethernet, pleaserefertofollowinggurestoscrewthe
DIN-RailontheIndustrialFastEthernetSwitch.Tohangthe
Industrial Fast Ethernet Switch, follow the below steps:
Step 1: screw the DIN-Rail on the Industrial Fast Ethernet
Switch.
Step 5: Lightly press the button of DIN-Rail for remove it
from the track.
Wall Mount Plate Mounting
To install the Industrial Fast Ethernet Switch on the wall,
please follows the instructions described below.
Step 1: Remove the DIN-Rail from the Industrial Fast
Ethernet Switch; loose the screws to remove the
DIN-Rail.
Step 2: Place the wall mount plate on the rear panel of
the Industrial Fast Ethernet Switch.
Step 3: Use the screws to screw the wall mount plate on
the Industrial Fast Ethernet Switch.
Step 4: Use the hook holes at the corners of the wall
mount plate to hang the Industrial Fast Ethernet
Switch on the wall.
Step 5: To remove the wall mount plate, reverse steps
above.
7. Customer Support
Thank you for purchase PLANET products. You can browse
our online FAQ resource at the PLANET Web site rst to
check if it could solve you issue. If you need more support
information, please contact PLANET switch support team.
PLANET online FAQ :
http://www.planet.com.tw/en/support/faq.php?type=1
Switch support team mail address :
support_switch@planet.com.tw
Copyright©PLANETTechnologyCorp.2009.
Contentssubjecttorevisionwithoutpriornotice.
PLANET is a registered trademark of PLANET Technology
Corp. All other trademarks belong to their respective
owners.
