2.2.2 Wall Mount Plate Mounting

To install the Industrial Fast Ethernet Switch on the wall, please follows

the instructions described below.

Step 1: Remove the DIN-Rail from the Industrial Fast Ethernet

Switch; loose the screws to remove the DIN-Rail.

Step 2: Place the wall mount plate on the rear panel of the Industrial

Fast Ethernet Switch.

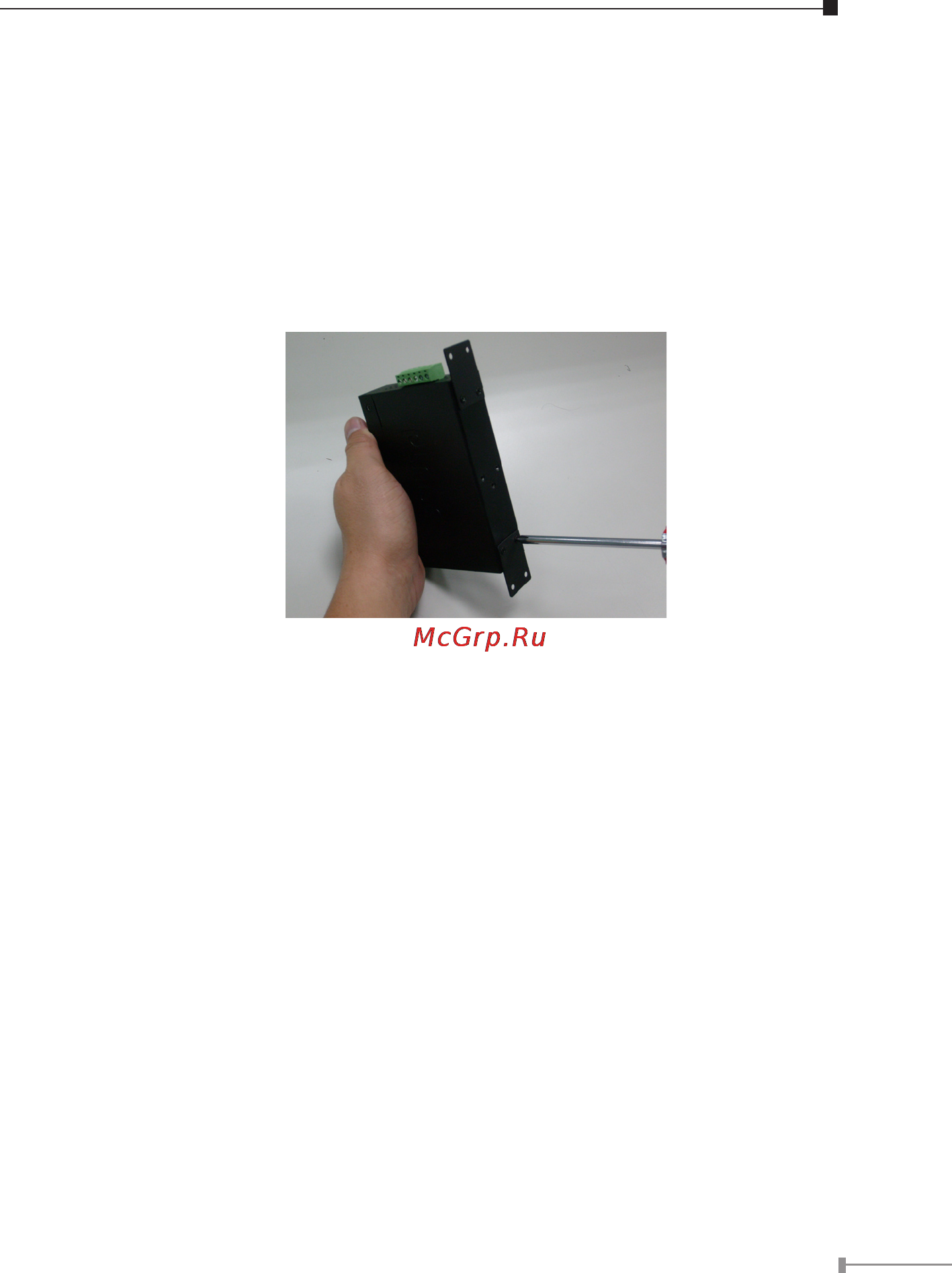

Step 3: Use the screws to screw the wall mount plate on the

Industrial Fast Ethernet Switch.

Step 4: Use the hook holes at the corners of the wall mount plate to

hang the Industrial Fast Ethernet Switch on the wall.

Step 5: To remove the wall mount plate, reverse steps above.
