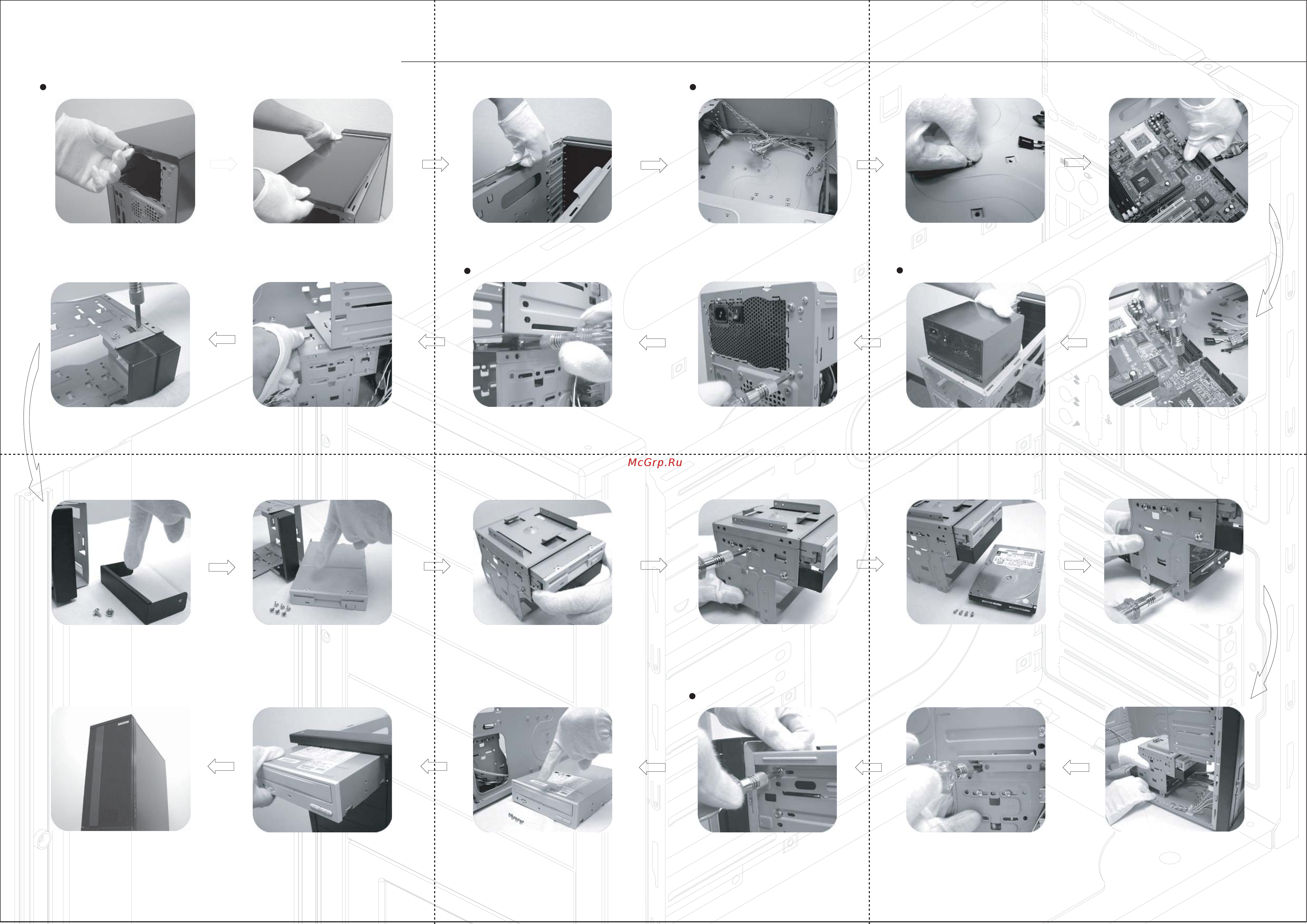

This is unique design product, please read this installation
guide carefully which we prepared for you meticulously
Unscrew the thumbscrews on the rear
part of the top panel.
Pull the top panel backward to remove it.
Remove the side panel by pulling it upward.
Screw the Stand-offs onto the holes of the
motherboard tray.
Put the motherboard on top of the
stand-offs. The right position is
shown on the left.
Turn the power supply to the direction as shown
on left picture and slide it into the case.
(We recommend users to use Silverstone's
high-quality & low-acoustic Power Supply.)
Pull the Floppy Drive/Hard Drive holder out of
the casing.
Unscrew the upper 3.5 device bay cover from
the holder.
The floppy drive and screws used for
installation are shown on the left.
Screw the floppy drive onto the holder.
The hard drive and screws used for this
installation are shown on the left.
The 3.5" device bay cover and screws are shown
on the left.
Slide the floppy into the upper compartment of
the holder until its front side aligns with front of
the lower device bay cover.
Slide the hard drive into the lower
compartment of the holder as shown
on the left. After it reaches the rig ht
position, screw it onto the holder.
Put the holder with floppy drive and
hard drive back into the casing.
Screw the holder onto the casing.
The CD-R/DVD and screws needed for
installation are shown on left.
Slide the CD-R/DVD into the device bay,
and screw it onto the right position of the
device bay.
Use screws to fasten the motherboard
onto the stand-offs so that motherboard
will be fixed onto the case.
Put the power supply to the right position
as shown on the left picture, then screw
it onto the case from the back of the case.
Step 1: Remove top and side panels of the case.
Step 2: Install motherboard.
Turn the case to the position as shown on
the left picture so that the motherboard
tary will face up, then and put all wires
aside.
Step 3: Install power supply.
Step 4: Install Floppy Drive & Hard Drive.
Unscrew the screws on both sides of the
Floppy Drive/Hard Drive holder as shown
on the left.
Step 5: Install CD-R/DVD
Congratulation. You have finished installation.
Unscrew the screws on both sides of
5.25"device bay to remove the bay cover.
