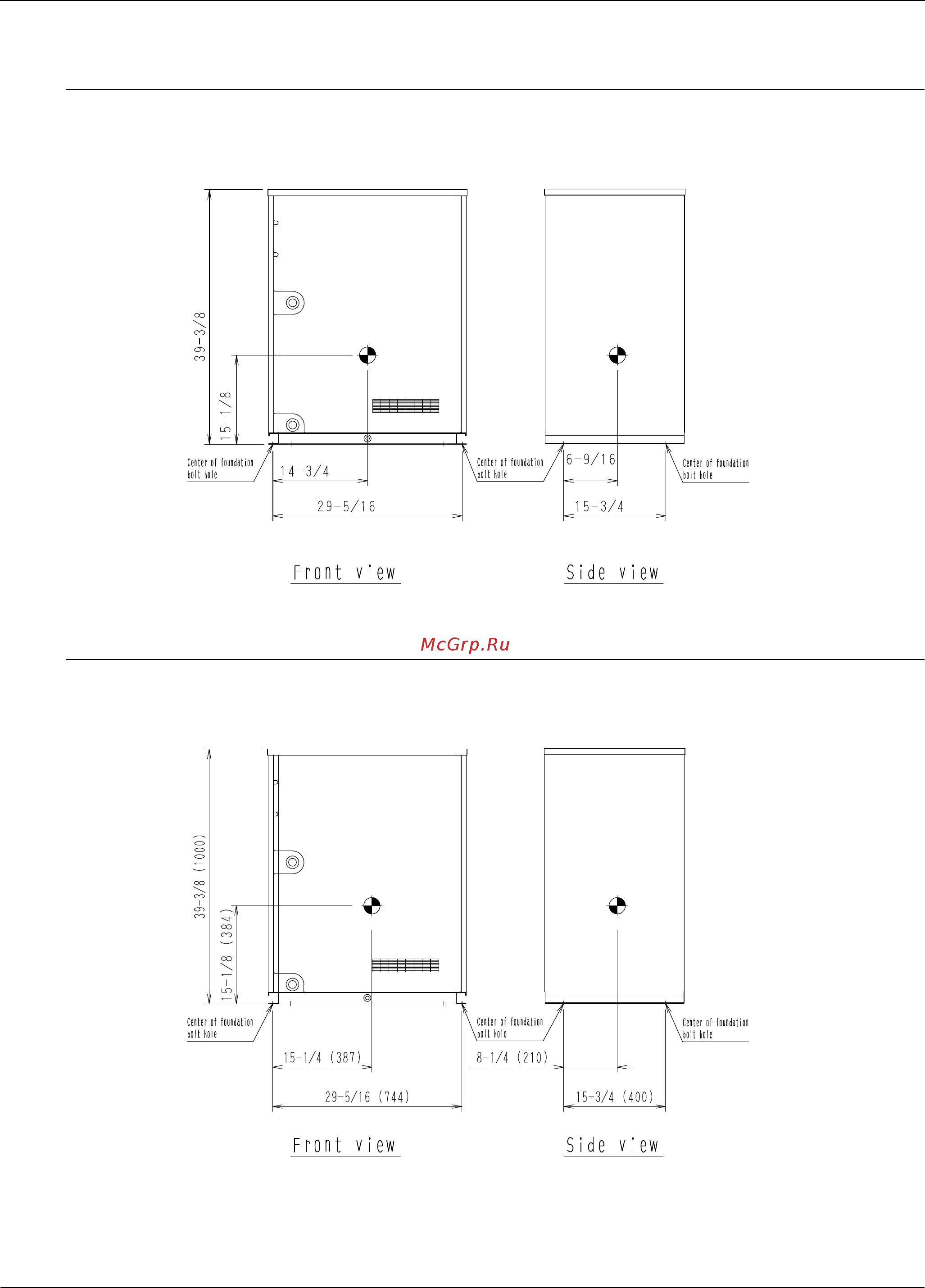

Center of Gravity EDUS301214-N
2 Installation of Outside Units
1. Center of Gravity
RWEYQ72PTJU / RWEYQ84PTJU
Unit: in. (mm)
RWEYQ72PYDN/RWEYQ84PYDN
Unit: in. (mm)
C: 4D066040
(1000)
(384)
(375)
(744)
(167)
(400)
4D079929
