Troubleshooting SiE00-01
34 Troubleshooting
1. Troubleshooting
1.1 Error Code Indication
When an abnormality is generated, take necessary measures by referring to displayed error code.
After the cause of abnormality is removed, operate equipment and check proper functioning.
List of malfunction codes displayed by LCD remote controller
In case of the mulfunction with the shaded error code, the unit still operates. However, be sure to have it
inspected and repaired and as soon as possible.

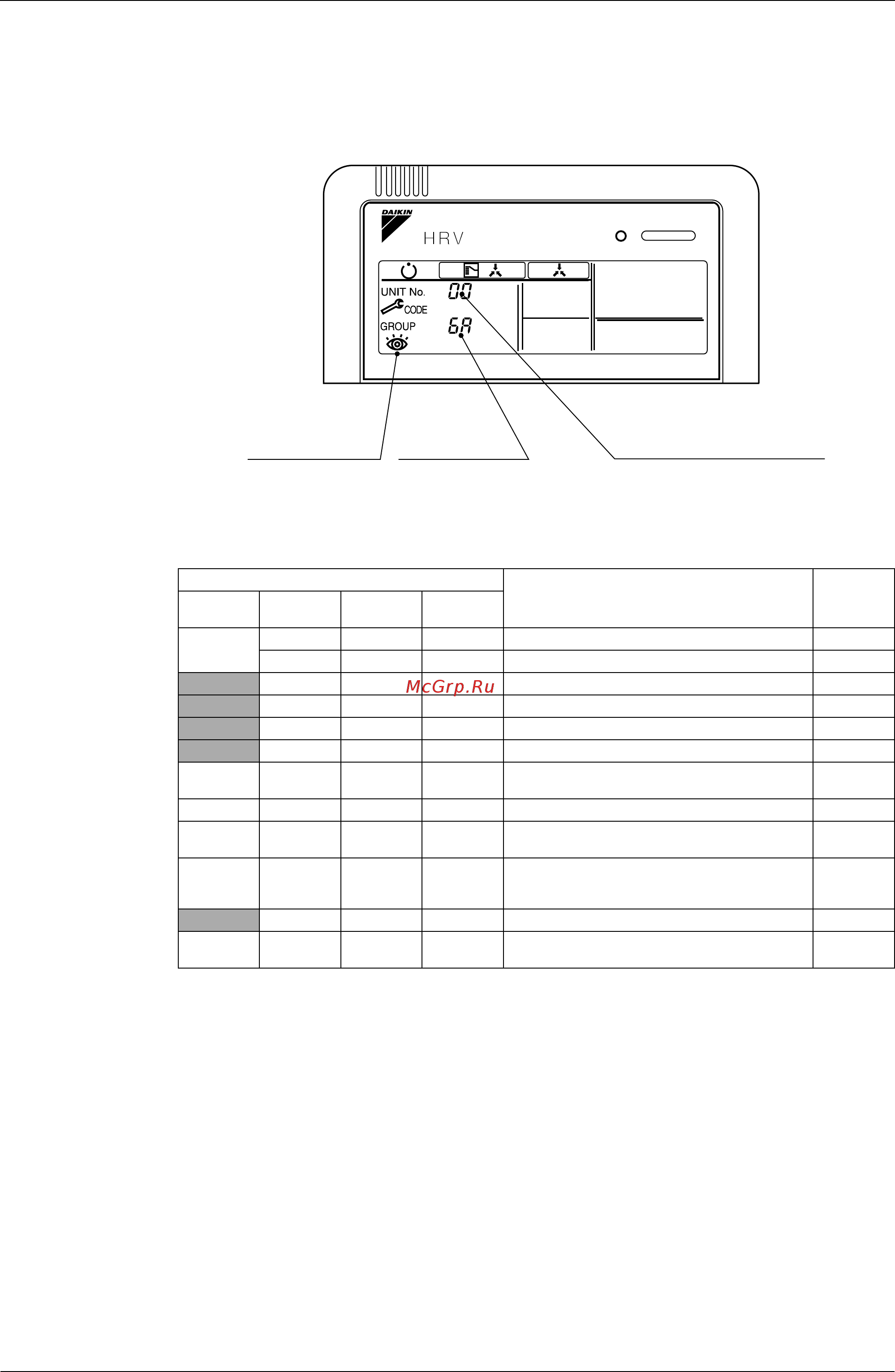

LCD Remote Controller Display
Description of Abnormality Page
Error Code Operation
Lamp
Inspection
Indication
Unit No.
66
66
00
00
ON OFF Blinking Overall alarm P35
Blinking Blinking Blinking Overall malfunction P36
66
66
44
44
ON OFF Blinking Inside air thermistor error P37
66
66
55
55
ON OFF Blinking Outside air thermistor error P38
66
66
AA
AA
ON OFF Blinking Damper system alarm P39
66
66
AA
AA
Blinking Blinking Blinking Damper system + thermistor error P40
UU
UU
55
55
Blinking Blinking Blinking Data transmission error between LCD remote
controller and main unit
P42
UU
UU
55
55
OFF Blinking OFF LCD remote controller connection error P43
UU
UU
88
88
OFF Blinking OFF Data transmission error between master-slave
LCD remote controllers
P44
UU
UU
AA
AA
OFF Blinking OFF LCD remote controller connection error (no
remote controller for air conditioner in air
conditioner group)
P45
UU
UU
CC
CC
ON ON ON Overlapping central control address P46
UU
UU
EE
EE
Blinking Blinking Blinking Transmission error between the unit and
centralized controller
—
Inspection indication
Error code
Indication of unit No. of abnormal
heat reclaim ventilation unit
(HL027)
